Here you will find all available parts and drawings of the 'Bosch 3600HA2200 (INDEGO1300)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

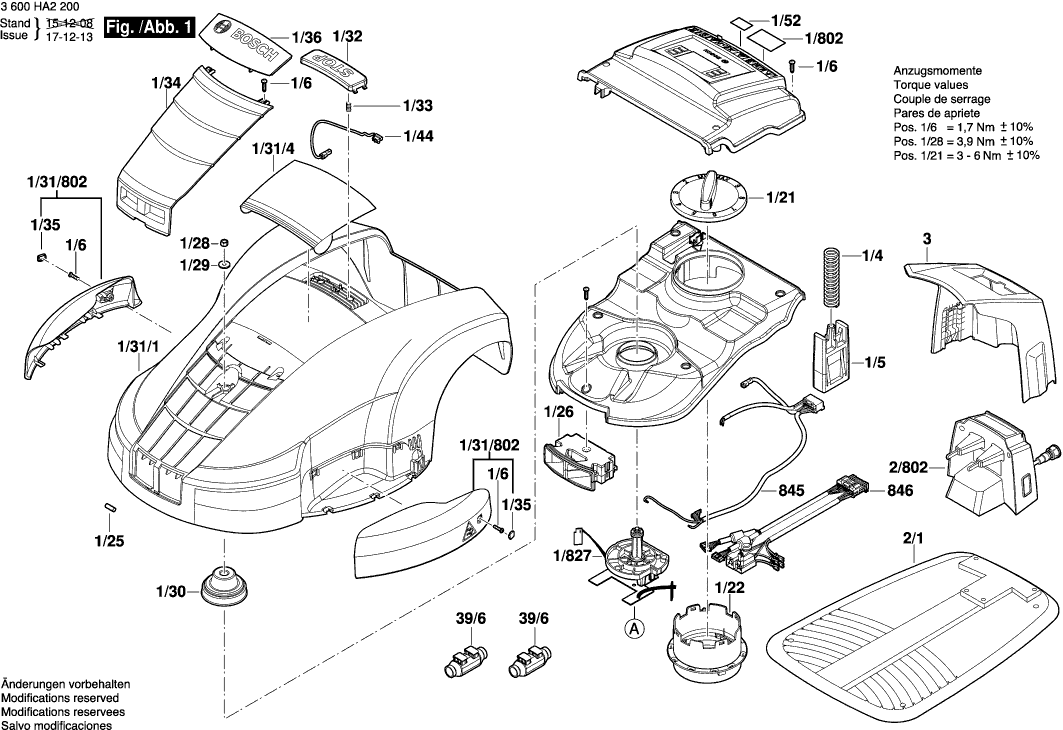

Technical drawing of model Bosch 3600HA2200 (INDEGO1300)
Spare parts list of model Bosch 3600HA2200 (INDEGO1300)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chassis | ||||
| 1/1 | F016L68576 | 33.33 | 40.33 | |
| Pivoting Blade Guard | ||||
| 1/12 | F016L67729 | 22.88 | 27.68 | |
| Bearing Plate | ||||
| 1/14 | F016L67872 | 2.52 | 3.05 | |
| Motor fixing screw | ||||
| 1/15 | F016L67734 | 1.32 | 1.60 | |
| Rotary Knob | ||||
| 1/21 | F016L67742 | 5.27 | 6.38 | |
| Threaded Sleeve | ||||
| 1/22 | F016L67743 | 8.48 | 10.26 | |
| Control Magnet | ||||
| 1/25 | F016L67750 | 1.90 | 2.30 | |
| Socket | ||||
| 1/26 | F016L68265 | 22.88 | 27.68 | |
| Nut | ||||
| 1/28 | F016L18118 | 1.00 | 1.21 | |
| Washer | ||||
| 1/29 | F016L67862 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 1/30 | F016L67768 | |||
| No longer available, no replacement | ||||
| 1/31/1 | F016L67770 | |||
| Hinged Lid | ||||
| 1/31/4 | F016L68470 | 11.02 | 13.33 | |
| Side Cover SILVER | ||||
| 1/31/802 | F016104376 | 41.30 | 49.97 | |
| Stop Cover | ||||
| 1/32 | F016L67771 | 3.04 | 3.68 | |
| Button Spring | ||||
| 1/33 | F016L67772 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 1/34 | F016L67773 | |||
| No longer available, no replacement | ||||
| 1/35 | F016L68473 | |||
| Company Logo | ||||
| 1/36 | F016L68703 | 6.53 | 7.90 | |
| Support Element | ||||
| 1/37 | F016L68494 | 11.02 | 13.33 | |
| Mounting Ring | ||||
| 1/38 | F016L67785 | 15.61 | 18.89 | |
| Retaining Plate | ||||
| 1/39 | F016L67786 | 5.27 | 6.38 | |
| Spring | ||||
| 1/4 | F016L67704 | 1.90 | 2.30 | |
| Mounting Bracket | ||||
| 1/40 | F016L67778 | 7.32 | 8.86 | |
| Mounting Bracket | ||||
| 1/41 | F016L67779 | 8.48 | 10.26 | |
| Screw and washer assembly | ||||
| 1/42 | F016L67951 | 2.18 | 2.64 | |
| Wire Harness assembly | ||||
| 1/44 | F016L67867 | 5.27 | 6.38 | |
| Plunger | ||||
| 1/5 | F016L67705 | 2.18 | 2.64 | |
| Sticker | ||||
| 1/52 | F016L69304 | 2.52 | 3.05 | |
| Screw M4x20 PLASTIC | ||||
| 1/6 | F016L67706 | 1.00 | 1.21 | |
| Nameplate | ||||
| 1/802 | F016105061 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 1/824 | F016104876 | |||
| Input device | ||||
| 1/827 | F016104492 | 126.98 | 153.65 | |
| Base Plate | ||||
| 2/1 | F016L68409 | 33.33 | 40.33 | |
| No longer available, no replacement | ||||
| 2/802 | F016104605 | |||
| Covering hood | ||||
| 3 | F016L67822 | 11.02 | 13.33 | |
| Stopper | ||||
| 39/1 | F016L67841 | 3.71 | 4.49 | |
| Connector | ||||
| 39/6 | F016L68737 | 6.53 | 7.90 | |
| Power supply unit CH | ||||
| 805 | F016L69117 | 210.30 | 254.46 | |
| Power supply unit GB | ||||
| 805 | F016L69118 | 168.86 | 204.32 | |
| Power supply unit AUS | ||||
| 805 | F016L69119 | 168.86 | 204.32 | |
| Power supply unit EU | ||||
| 805 | F016L69116 | 166.62 | 201.61 | |
| Drive Unit | ||||
| 807 | F016104253 | 114.26 | 138.25 | |
| Screw M4x20 PLASTIC | ||||
| 807/1/9 | F016L67706 | 1.00 | 1.21 | |
| Drive Unit | ||||
| 808 | F016104251 | 114.26 | 138.25 | |
| Screw M4x20 PLASTIC | ||||
| 808/1/9 | F016L67706 | 1.00 | 1.21 | |
| Drive Wheel | ||||
| 809 | F016104502 | 22.88 | 27.68 | |
| Motor Spare Parts Set | ||||
| 813 | F016104254 | 210.30 | 254.46 | |
| Cutting Unit | ||||
| 817 | F016104259 | 41.30 | 49.97 | |
| Blade | ||||
| 818 | F016104255 | 20.39 | 24.67 | |
| Motor Housing | ||||
| 823 | F016104252 | 22.88 | 27.68 | |
| Wire Harness assembly | ||||
| 845 | F016104258 | 33.33 | 40.33 | |
| Wire Harness assembly | ||||
| 846 | F016105050 | 55.56 | 67.23 | |
| No longer available, no replacement | ||||
| 847 | F016104299 | |||
