Here you will find all available parts and drawings of the 'Bosch 0602490622 ( IASR9,6-12V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

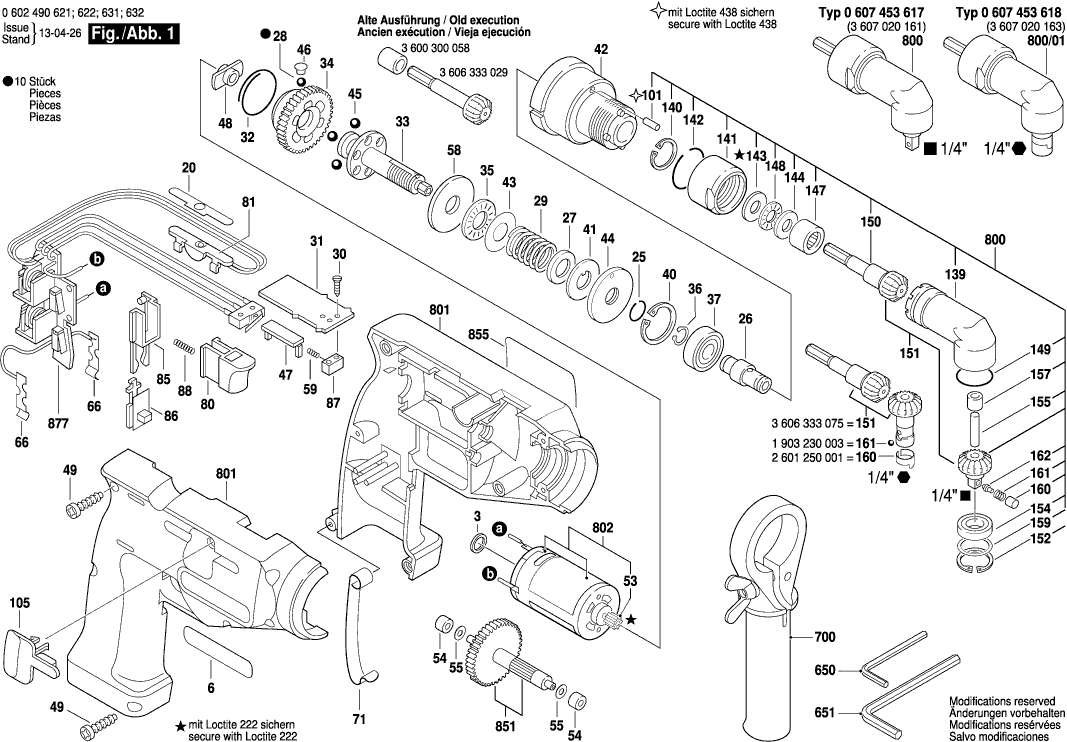

Technical drawing of model Bosch 0602490622 ( IASR9,6-12V )

Spare parts list of model Bosch 0602490622 ( IASR9,6-12V )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Locating Ring
3 3600200043 4.10 4.96
Sticker SHADOW SIDE
6 2601110606 1.18 1.43
Sticker
20 3601110256 4.10 4.96
Retaining ring 10 DIN 9045
25 2916600006 1.18 1.43
Tool Holding Fixture
26 3607218009 60.65 73.39
Ball DIN 5401-5 G28
28 1903230009 0.83 1.00
Compression Spring
29 3604611020 7.58 9.17
Tapping Screw DIN 7972-ST 2,2x6,5-C
30 2910601101 0.83 1.00
Bearing Plate
31 3601023007 2.71 3.28
Retaining ring
32 3604601001 1.70 2.06
Coupling Half
33 3606455036 91.56 110.79
Coupling Wheel
34 3606455037 101.94 123.35
Roller Thrust Bearing
35 3600929008 7.58 9.17
Spring retaining ring DIN 471-10x1MM-FSt
36 2916650001 1.94 2.35
groove ball bearing
37 1600900042 4.70 5.69
Spring retaining ring DIN 472-26x1,2 MM
40 2916660010 0.83 1.00
Catch Disk
41 3600106002 2.24 2.71
Angle Flange
42 3605700119 36.85 44.59
Support Disc
43 3600106003 2.24 2.71
Round Nut
44 3603400003 13.93 16.86
Ball DIN 5401-6 G28
45 1903230011 1.94 2.35
Sealing plate
46 3601023008 5.33 6.45
Actuating Element
47 3601923007 2.24 2.71
Plain bearing
48 3600917038 13.93 16.86
Tapping Screw DIN 7981-ST3,9x16-C-H
49 2910611019 2.24 2.71
Pinion Z=11
53 2606316112 3.31 4.01
Plain bearing
54 3600917037 5.83 7.05
Shim 0,3 MM THICK
55 2600100636 1.18 1.43
Coupling Plate
58 3606455038 9.53 11.53
Compression Spring
59 3604611021 2.24 2.71
Contact Spring
66 2601324012 1.18 1.43
No longer available, no replacement
71 2601251003
Switch Slide
80 3608750036 2.71 3.28
Led-Holder
81 3608750037 2.71 3.28
Guide Piece
85 3602329026 2.71 3.28
Switch
86 3607200063 2.24 2.71
Spring Holder
87 3602329027 2.24 2.71
Compression Spring
88 3604611031 1.94 2.35
Straight Pin DIN 6325-5M2,5x12
101 2917530057 1.18 1.43
Filler Piece BLUE
105 2605510027 1.18 1.43
Spindle Housing
139 3605106071 130.32 157.69
Spring retaining ring 18x1MM, DIN 472
140 2916660004 0.83 1.00
Union Nut
141 3603342002 12.41 15.02
Retaining ring DIN 9045-24
142 2916600013 1.18 1.43
Support Disc
143 3600100094 13.93 16.86
Support Disc
144 3600100095 13.93 16.86
Needle bearing
147 3600917019 8.45 10.22
Roller Thrust Bearing
148 3600929003 15.71 19.01
O-Ring 21,0x1,0 MM
149 3600210127 0.83 1.00
Bevel Gear
150 3606333077 101.94 123.35
Crown Gear Z=14
151 3606334070 233.78 282.87
Crown Gear Z=14
151 3606334071 233.78 282.87
Spring retaining ring DIN 472-21x1MM
152 2916660045 0.83 1.00
groove ball bearing
154 3600900018 20.42 24.71
Needle Roller
155 3603201031 1.94 2.35
Needle bearing
157 9001140359 5.33 6.45
Shim 0,05 MM THICK
159 1600101650 1.94 2.35
Shim 0,1 MM THICK
159 1600101648 1.18 1.43
Guide Sleeve
160 3600400014 7.58 9.17
Leaf Spring
160 2601250001 2.71 3.28
Ball DIN 5401-2,5MM-III-ST
161 1903230003 1.94 2.35
Compression Spring
161 2604613003 1.70 2.06
Detent Pin
162 3603124015 6.54 7.91
Screwdriver
650 3607950014 1.18 1.43
Hexagon-Socket Key
651 3607950001 2.24 2.71
No longer available, no replacement
700 2602025032
Angle Screwdriver Head 1/4"
800 3607020161 922.18 1115.84
Angle Screwdriver Head 1/4"
800/01 3607020163 834.16 1009.33
Housing Section BLUE
801 3605105014 81.47 98.58
DC motor 9,6-12V
802 3607030294 44.82 54.23
Spindle With Gear
851 3607031548 26.84 32.48
Manufacturer's nameplate
855 3601110475 2.71 3.28
Printed-Board Assembly 9,6-12V
877 3608300177 233.78 282.87
