Here you will find all available parts and drawings of the 'Bosch 0602490601 (IASR9,6-12V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

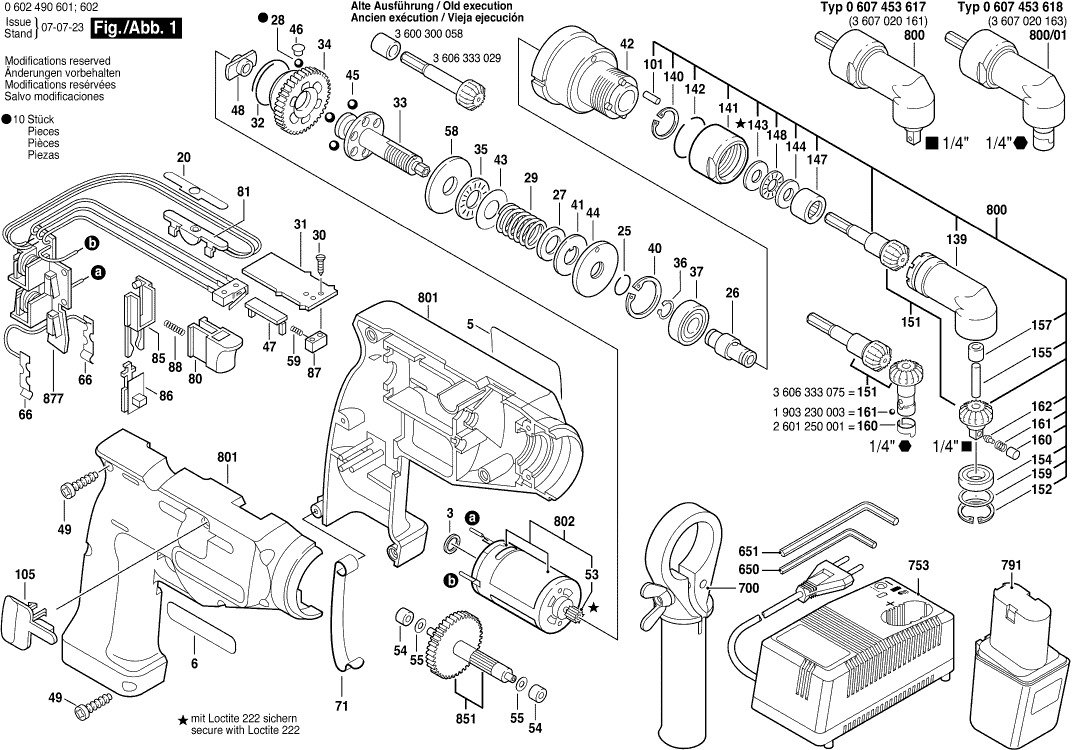

Technical drawing of model Bosch 0602490601 (IASR9,6-12V)
Spare parts list of model Bosch 0602490601 (IASR9,6-12V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Locating Ring | ||||
| 3 | 3600200043 | 4.10 | 4.96 | |
| Sticker SUNNY SIDE | ||||
| 5 | 3601110253 | 6.54 | 7.91 | |
| Sticker | ||||
| 6 | 2601110606 | 1.49 | 1.80 | |
| Sticker | ||||
| 20 | 3601110256 | 4.10 | 4.96 | |
| Retaining ring 10 DIN 9045 | ||||
| 25 | 2916600006 | 1.49 | 1.80 | |
| Tool Holding Fixture | ||||
| 26 | 3607218009 | 60.65 | 73.39 | |
| Plain Washer DIN 433-A13-ST 50 | ||||
| 27 | 2916011019 | 2.08 | 2.52 | |
| Ball | ||||
| 28 | 1903230009 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 29 | 3604611023 | 7.58 | 9.17 | |
| Tapping Screw DIN 7972-ST 2,2x6,5-C | ||||
| 30 | 2910601101 | 0.83 | 1.00 | |
| Bearing Plate | ||||
| 31 | 3601023007 | 2.71 | 3.28 | |
| Retaining ring | ||||
| 32 | 3604601001 | 1.90 | 2.30 | |
| Coupling Half | ||||
| 33 | 3606455036 | 91.56 | 110.79 | |
| Coupling Wheel | ||||
| 34 | 3606455039 | 101.94 | 123.35 | |
| Roller Thrust Bearing | ||||
| 35 | 3600929008 | 7.58 | 9.17 | |
| Spring retaining ring | ||||
| 36 | 2916650001 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 37 | 1600900042 | 5.27 | 6.38 | |
| Spring retaining ring | ||||
| 40 | 2916660010 | 1.00 | 1.21 | |
| Catch Disk | ||||
| 41 | 3600106002 | 2.24 | 2.71 | |
| Angle Flange | ||||
| 42 | 3605700119 | 36.85 | 44.59 | |
| Support Disc | ||||
| 43 | 3600106003 | 2.24 | 2.71 | |
| Round Nut | ||||
| 44 | 3603400003 | 13.93 | 16.86 | |
| Ball | ||||
| 45 | 1903230011 | 2.40 | 2.90 | |
| Sealing plate | ||||
| 46 | 3601023008 | 5.33 | 6.45 | |
| Actuating Element | ||||
| 47 | 3601923007 | 2.24 | 2.71 | |
| Plain bearing | ||||
| 48 | 3600917038 | 13.93 | 16.86 | |
| Tapping Screw | ||||
| 49 | 2910611019 | 2.86 | 3.46 | |
| Pinion | ||||
| 53 | 2606316120 | 7.46 | 9.03 | |
| Plain bearing | ||||
| 54 | 3600917037 | 5.83 | 7.05 | |
| Shim | ||||
| 55 | 2600100636 | 1.49 | 1.80 | |
| Coupling Plate | ||||
| 58 | 3606455038 | 9.53 | 11.53 | |
| Compression Spring | ||||
| 59 | 3604611021 | 2.24 | 2.71 | |
| Contact Spring | ||||
| 66 | 2601324012 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 71 | 2601251003 | |||
| Switch Slide | ||||
| 80 | 3608750036 | 2.71 | 3.28 | |
| Led-Holder | ||||
| 81 | 3608750037 | 2.71 | 3.28 | |
| Guide Piece | ||||
| 85 | 3602329026 | 2.71 | 3.28 | |
| Switch | ||||
| 86 | 3607200063 | 2.24 | 2.71 | |
| Spring Holder | ||||
| 87 | 3602329027 | 2.24 | 2.71 | |
| Compression Spring | ||||
| 88 | 3604611022 | 3.04 | 3.68 | |
| Straight Pin DIN 6325-5M2,5x12 | ||||
| 101 | 2917530057 | 1.32 | 1.60 | |
| Filler Piece | ||||
| 105 | 2605510027 | 1.49 | 1.80 | |
| Spindle Housing | ||||
| 139 | 3605106071 | 146.07 | 176.74 | |
| Spring retaining ring 18x1MM, DIN 472 | ||||
| 140 | 2916660004 | 1.00 | 1.21 | |
| Union Nut | ||||
| 141 | 3603342002 | 13.90 | 16.82 | |
| Retaining ring | ||||
| 142 | 1614601009 | 1.00 | 1.21 | |
| Support Disc | ||||
| 143 | 3600100094 | 16.79 | 20.32 | |
| Support Disc | ||||
| 144 | 3600100095 | 15.61 | 18.89 | |
| Needle bearing | ||||
| 147 | 3600917019 | 9.47 | 11.46 | |
| Roller Thrust Bearing | ||||
| 148 | 3600929003 | 18.94 | 22.92 | |
| Bevel Gear Set | ||||
| 151 | 3606333591 | 304.15 | 368.02 | |
| Spring retaining ring DIN 472-21x1MM | ||||
| 152 | 2916660045 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 154 | 3600900018 | 22.88 | 27.68 | |
| Needle Roller | ||||
| 155 | 3603201031 | 2.18 | 2.64 | |
| Needle bearing | ||||
| 157 | 9001140359 | 5.96 | 7.21 | |
| Shim | ||||
| 159 | 1600101650 | 2.40 | 2.90 | |
| Shim | ||||
| 159 | 1600101648 | 1.49 | 1.80 | |
| Guide Sleeve | ||||
| 160 | 3600400014 | 8.48 | 10.26 | |
| Leaf Spring | ||||
| 160 | 2601250001 | 3.44 | 4.16 | |
| Ball | ||||
| 161 | 1903230003 | 2.18 | 2.64 | |
| Compression Spring | ||||
| 161 | 2604613003 | 1.90 | 2.30 | |
| Detent Pin | ||||
| 162 | 3603124015 | 7.32 | 8.86 | |
| Screwdriver | ||||
| 650 | 3607950014 | 1.18 | 1.43 | |
| Hexagon-Socket Key | ||||
| 651 | 3607950001 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 700 | 2602025032 | |||
| Fast Charger | ||||
| 753 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 753 | 2607224701 | 122.80 | 148.59 | |
| No longer available, no replacement | ||||
| 791 | 2607335021 | |||
| Angle Screwdriver Head 1/4" | ||||
| 800 | 3607020161 | 1033.68 | 1250.75 | |
| Angle Screwdriver Head 1/4" | ||||
| 800/01 | 3607020163 | 935.01 | 1131.36 | |
| Housing Section BLUE | ||||
| 801 | 3605105014 | 81.47 | 98.58 | |
| DC motor 9,6-12V | ||||
| 802 | 3607030295 | 40.61 | 49.14 | |
| Spindle With Gear | ||||
| 851 | 3607031549 | 26.84 | 32.48 | |
| Printed-Board Assembly | ||||
| 877 | 3608300178 | 304.19 | 368.07 | |
