Here you will find all available parts and drawings of the 'Bosch 0601341803 ( HV81 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

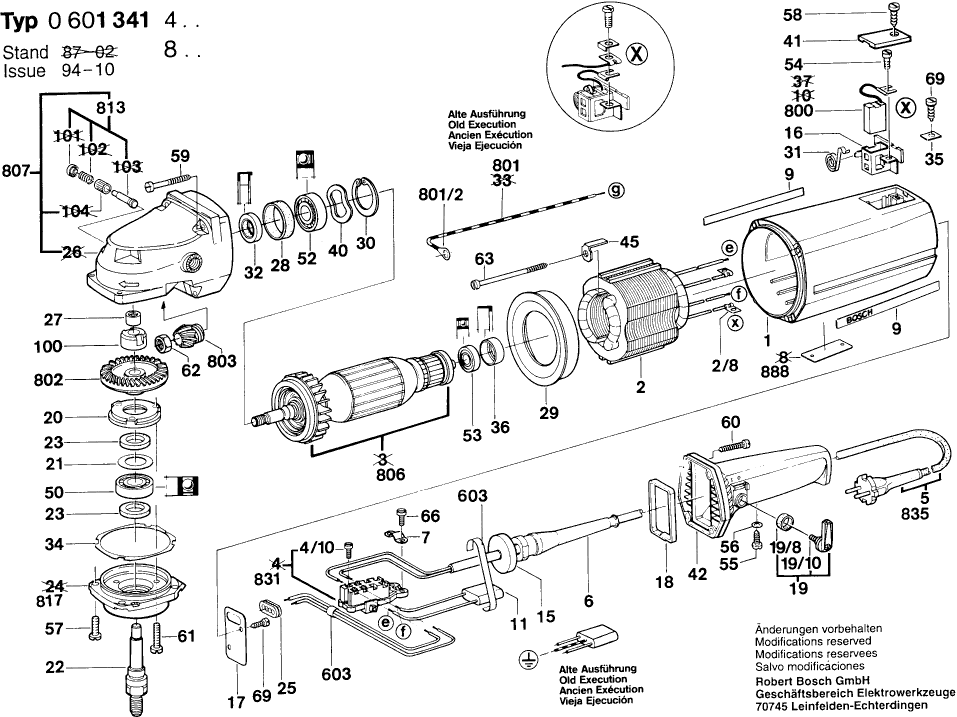

Technical drawing of model Bosch 0601341803 ( HV81 )

Spare parts list of model Bosch 0601341803 ( HV81 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 1605108124 23.75 28.74
Field 230V
2 1604220245 73.72 89.20
Terminal lug 1,5-4x4
2/8 1901350003 0.83 1.00
On-Off Switch
4/2 1607200098 29.75 36.00
Grommet Ø9,2-Ø12x120 MM
6 3600703011 2.24 2.71
Fastening Clamp
7 1601302013 1.18 1.43
Manufacturer's nameplate
9 1601110003 1.18 1.43
Suppression Filter
11 1607328034 3.31 4.01
Seal
15 1600113002 1.18 1.43
Brush Holder
16 1604336008 15.71 19.01
Cover Plate
17 1601037006 1.18 1.43
Profile Strip 3,4x7x240 MM
18 1601014005 1.18 1.43
No longer available, no replacement
19 1602026058
Felt Washer
19/8 1600205019 1.18 1.43
Bearing cover
20 1605808054 2.24 2.71
Cover Disc
21 1600102012 1.18 1.43
No longer available, no replacement
22 1603523090
Sealing disk
23 1600108055 0.83 1.00
Needle-Roller Bearing Ø14 MM
27 2600910001 3.31 4.01
Rubber Washer Ø41xØ37x11 MM
28 1600206028 1.70 2.06
Guide Pulley
29 1600502013 1.18 1.43
Spring retaining ring
30 1600119004 2.24 2.71
Spiral Spring
31 1604652015 1.94 2.35
Rotary shaft lip seal WHITE
32 1600290008 1.94 2.35
Shim 0,1 MM THICK
34 1600190004 1.18 1.43
Shim 0,2 MM THICK
34 1600190005 0.83 1.00
Tab Washer
35 1601030022 1.18 1.43
Rubber Ring
36 1600206015 1.70 2.06
Spring Washer Ø32,3xØ43,5x0,6 MM
40 1600150009 2.24 2.71
Sealing cap BLUE
41 1605500089 1.18 1.43
Handle
42 1605132093 10.73 12.98
Holding Bracket
45 1601331032 1.18 1.43
No longer available, no replacement
50 1900905227
groove ball bearing 37x12x12
52 1600900028 10.73 12.98
groove ball bearing
53 1600900029 6.54 7.91
Socket head cap screw DIN 84-AM4x8-8.8
54 2910021118 0.83 1.00
Tapping Screw DIN 7971-BZ2,9x13
55 2910211006 0.83 1.00
Plain Washer DIN 433-3,2-ST 50
56 2916011005 0.83 1.00
No longer available, no replacement
57 2910011157
Tapping Screw DIN 7971-BZ3,9x19
58 2910211020 1.70 2.06
Screw B 4,8x45 MM
59 3603415560 0.83 1.00
Tapping Screw B4,8x57,5 MM
60/1 1603429000 0.83 1.00
Socket head cap screw DIN 84-AM5x20-5.8
61 2910011162 0.83 1.00
Hex Nut M12x1,5 MM
62 1603300009 1.18 1.43
Tapping Screw B4,8x85 MM
63 1603429001 1.18 1.43
Tapping Screw DIN 7971-ST3,9x13-F
66 2910211018 0.83 1.00
Tapping Screw DIN 7971-BZ3,5x13
69 2910211011 0.83 1.00
Intermediate Flange
71/1 1605700020 4.70 5.69
No information available, not orderable
72/1 1604503005
No information available, not orderable
81/1 1601110133
Grooved Ring
100 1600390011 13.93 16.86
Reference Plate
105 1601110240 0.83 1.00
Auxiliary Handle
650/10 160202509Z 12.41 15.02
Auxiliary Handle
650/10 16020250A1 11.88 14.37
Pin-Type Face-Wrench
650/11 F000632033 1.94 2.35
Clamping-Flange Ø45 MM
650/12 2600501006 12.41 15.02
Round Nut M14
650/13 2603345004 5.33 6.45
Offset Screwdriver DIN 911;SW6
650/14 1907950007 4.10 4.96
No longer available, no replacement
652 1605510176
No longer available, no replacement
652/20 2910141240
Union Ø32,3xØ34,9x75 MM
702 1600309009 15.71 19.01
Wing Nut DIN 315-M8-GT-C
702/10 2915191007 2.71 3.28
Plain Washer DIN 125-A 8,4-ST
702/11 2916011016 0.83 1.00
No longer available, no replacement
702/20 2910141240
Parts Set
703 1607000140 0.83 1.00
Hex Screw M14x16x1,5 MM
703/11 2603450007 4.70 5.69
Parts Set Ø180 MM
712 1607000176 0.83 1.00
Carbon-Brush Set
800 1607014103 11.88 14.37
Connecting Cable
801 1604440004 0.83 1.00
Crown Gear Z=51
802 1606333210 73.72 89.20
Bevel Gear Z=18
803 1606333209 33.45 40.47
Armature 220V
806 1604012044 148.65 179.87
Parts Set
807 1607000917 60.65 73.39
Parts Set
813 1607000161 4.10 4.96
Cover Plate
817 1601037006 1.18 1.43
O-Ring 79,0x1,78 MM
817/029 1600210033 1.18 1.43
Retaining snap ring
828 1600206019 1.18 1.43
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
835 1607000228 20.42 24.71
groove ball bearing 6203-TH/C3 DIN 625
852 1900900413 26.84 32.48
Nameplate
888 160111A3H3 1.94 2.35
