Here you will find all available parts and drawings of the 'Bosch 0603997963 (HS46)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

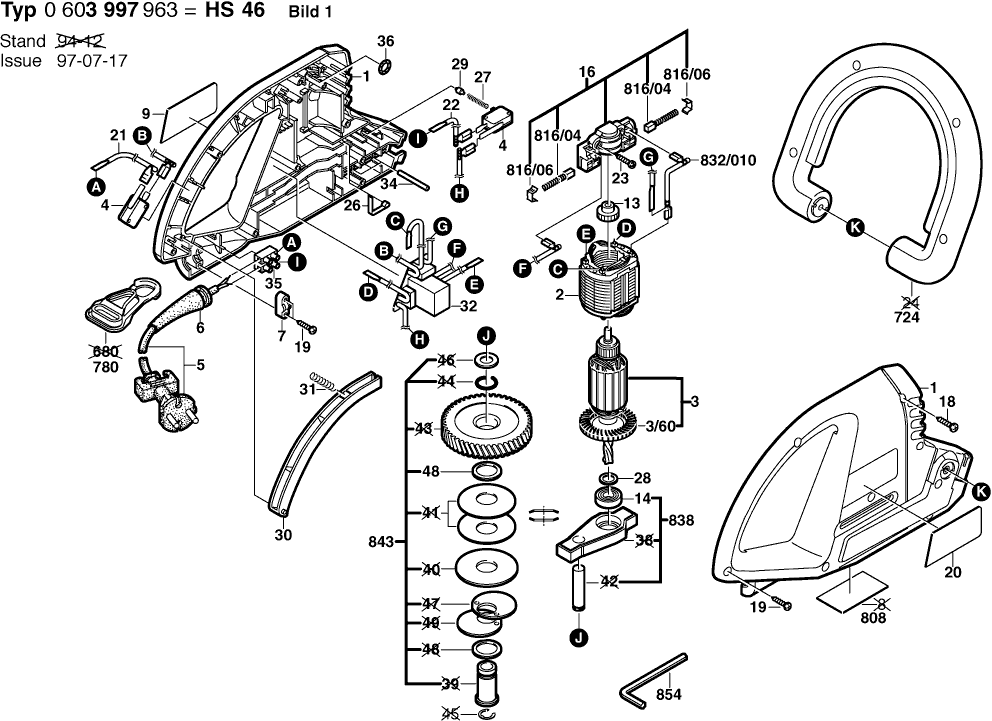

Technical drawing of model Bosch 0603997963 (HS46)
Spare parts list of model Bosch 0603997963 (HS46)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104512 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 2 | 2604220423 | |||
| No longer available, no replacement | ||||
| 3 | 2604010604 | |||
| Fan | ||||
| 3/60 | 2606610027 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 4 | 2607200316 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118841 | 1.94 | 2.35 | |
| Bushing | ||||
| 13 | 2600300077 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 2600905021 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 16 | 2609992625 | |||
| Torx Oval-Head Screw | ||||
| 18 | 2603490024 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 20 | 2601118342 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 21 | 2604448171 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 22 | 2604448162 | |||
| Torx Oval-Head Screw | ||||
| 23 | 2603490023 | 1.00 | 1.21 | |
| Contact Spring | ||||
| 26 | 2601329057 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 27 | 2604619013 | |||
| No longer available, no replacement | ||||
| 28 | 2600209003 | |||
| Shifter Rod | ||||
| 29 | 2608040076 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 30 | 2608001011 | |||
| Compression Spring | ||||
| 31 | 2604610028 | 1.49 | 1.80 | |
| Control Unit | ||||
| 32 | 2607230025 | 31.42 | 38.02 | |
| No longer available, no replacement | ||||
| 33/40 | 2603413026 | |||
| No longer available, no replacement | ||||
| 33/40/1 | 2603413025 | |||
| No longer available, no replacement | ||||
| 33/50/1 | 2915011006 | |||
| Shim | ||||
| 33/60/1 | 2600101028 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 34 | 2609002714 | 1.49 | 1.80 | |
| Socket-Terminal Strip | ||||
| 35 | 1901091101 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 36 | 2600210036 | |||
| Plain Washer | ||||
| 48 | 2600102049 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 701 | 1609200399 | |||
| Protective Glove | ||||
| 702 | 2607000134 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 724 | 2602025106 | |||
| Protective Shield | ||||
| 725 | 2607001192 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 753 | 2605411052 | |||
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 816/04 | 2607014005 | |||
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 816/06 | 2601322017 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 832/010 | 2604448173 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 833 | 2607001239 | |||
| No information available, not orderable | ||||
| 833/010 | 2607000995 | |||
| Bearing Bracket | ||||
| 838 | 2605807926 | 16.79 | 20.32 | |
| Overload Clutch | ||||
| 843 | 2606319901 | 47.53 | 57.51 | |
| Offset Screwdriver | ||||
| 854 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 854 | 2610364015 | 3.44 | 4.16 | |
