Here you will find all available parts and drawings of the 'Bosch 0602209434 ( HGS65/50 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

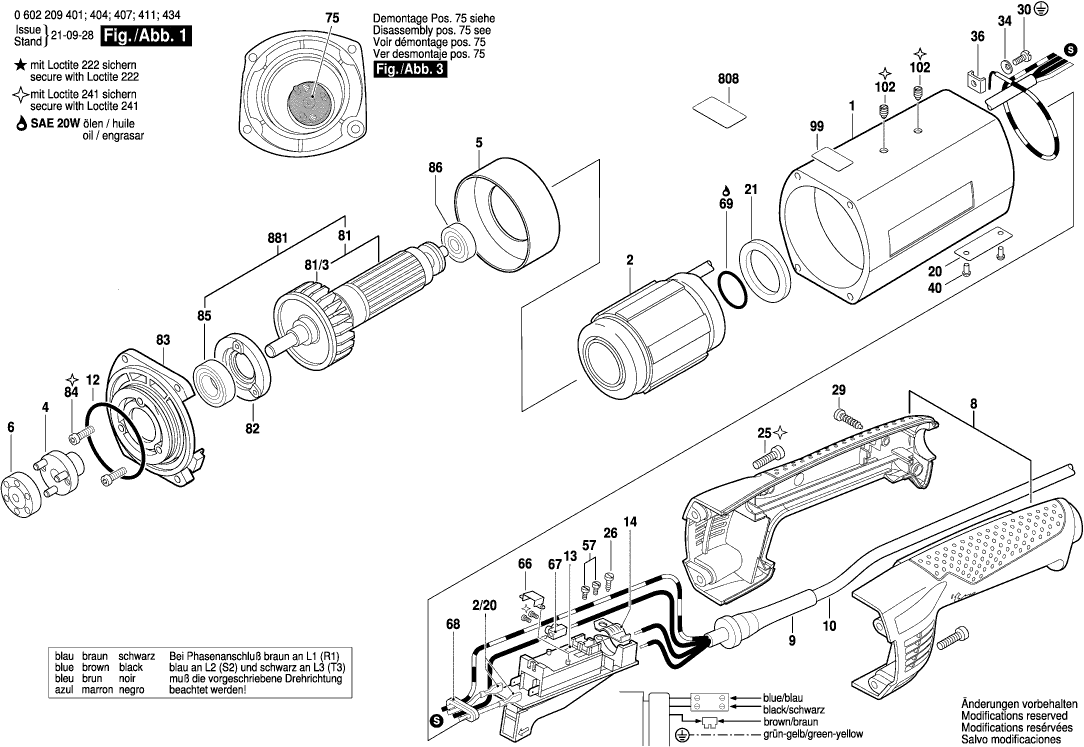

Technical drawing of model Bosch 0602209434 ( HGS65/50 )

Spare parts list of model Bosch 0602209434 ( HGS65/50 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 3605102077 168.86 204.32
Stator
2 3604229126 388.20 469.72
Receptacle
2/20 3604478004 4.10 4.96
Carrier
4 1600320028 33.45 40.47
Air-Deflector Ring
5 1600209003 5.83 7.05
Carrier
6 1606442000 4.70 5.69
Handle
8 3605132078 36.85 44.59
Grommet Ø12,8xØ13,5x100 MM
9 3600703003 3.31 4.01
Elec. Cable W/Connection
10 3604462017 49.56 59.97
O-Ring 45x3MM
12 1900210146 3.31 4.01
Switch
13 3607200055 91.56 110.79
Fastening Clamp
14 3601303004 4.70 5.69
Spindle Housing
18 3605806109 187.62 227.02
Nameplate
20 3601106053 4.10 4.96
Seal Ring
21 1600209006 2.24 2.71
Hex Socket Head Cap Screw DIN 912-M5x18-8.8
25 2910141160 1.70 2.06
Tapping Screw DIN 7971-ST3,9x16-F
26 2910211019 0.83 1.00
Hex Socket Head Cap Screw DIN 912-M 5x30-8.8
28 2910141166 1.18 1.43
Screw 4x16
29 2603490022 0.83 1.00
Thread-forming tap. Screw
30 2914461403 1.70 2.06
Spring Washer Ø4,2 MM
34 3600150006 1.94 2.35
Clamping Saddle
36 3601321001 2.71 3.28
Grooved Nail DIN 1476-2x5 MM
40 3603133001 1.94 2.35
Socket head cap screw DIN 84-AM4x8-8.8
57 2910021118 0.83 1.00
Retaining Bracket
66 3601303003 1.94 2.35
Strip Terminal
67 1901091110 1.18 1.43
Sealing Plate
68 3600054005 1.94 2.35
O-Ring 22,0x1,5 MM
69 3600210016 1.18 1.43
groove ball bearing
73 3600905063 20.42 24.71
Threaded Ring
74 3603344059 33.45 40.47
Carrier
75 1600320028 33.45 40.47
Collet
78 2608570118 20.42 24.71
Rotor Without Winding
81 3604080054 187.62 227.02
Fan
81/3 3606610010 3.31 4.01
Conical Spring Washer
82 1600501025 29.75 36.00
Bearing Flange
83 3605820065 67.25 81.37
Socket head cap screw DIN 84-AM4x18-5.8
84 2910011128 0.83 1.00
groove ball bearing 12x28x8
85 1900905121 13.93 16.86
groove ball bearing 7x22x7
86 1610900025 12.41 15.02
Needle-Roller Bearing
90 1600910002 18.19 22.01
Guide Sleeve
91 3600320015 23.75 28.74
Grinding Spindle
92 1603123011 168.86 204.32
Grinding Spindle
92 160312307M 168.86 204.32
Grinding Spindle
92/1 1603123011 168.86 204.32
Spacer Ring
97 1600202016 4.10 4.96
Retaining ring
98 1600224025 1.94 2.35
Reference Plate
99 3601119236 2.71 3.28
Set screw
102 1603402002 1.18 1.43
Single-Head Eng. Wrench DIN 894 SW 12
651 1907950506 10.73 12.98
Single-Head Eng. Wrench SW13
651 3607950025 5.83 7.05
Single-Head Eng. Wrench DIN 894 SW 15
652 1907950509 10.73 12.98
Single-Head Eng. Wrench SW19
652 3607950024 6.54 7.91
Single-Head Eng. Wrench DIN 894 SW 12
653 1907950506 10.73 12.98
Single-Head Eng. Wrench DIN 894 SW 15
654 1907950509 10.73 12.98
Collet Ø 1/4" (6,35 MM)
702 1608570058 33.45 40.47
Clamping Unit
702/1 3607030482 18.19 22.01
Nameplate
808 160111A65M 0.83 1.00
Spindle Bearing
818 1605806202 493.58 597.23
Spindle Bearing
818/1 1607000E2T 304.19 368.07
Collet
878 2608570118 20.42 24.71
Rotor Without Winding
881 3604080055 209.26 253.20
Grinding Spindle
892 3603123017 233.78 282.87
Grinding Spindle
892/1 1607000E2V 113.29 137.08
