Here you will find all available parts and drawings of the 'Bosch 0602209401 (HGS65/50)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

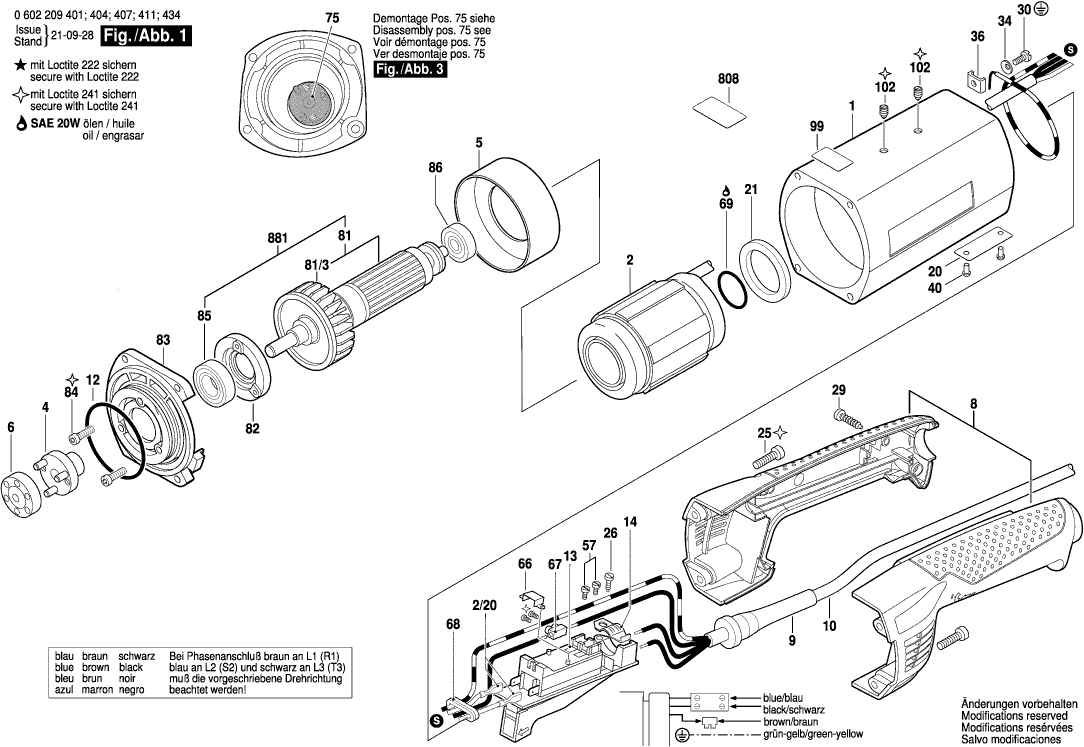

Technical drawing of model Bosch 0602209401 (HGS65/50)
Spare parts list of model Bosch 0602209401 (HGS65/50)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605102077 | 189.28 | 229.03 | |
| Stator | ||||
| 2 | 3604229125 | 383.36 | 463.87 | |
| Receptacle | ||||
| 2/20 | 3604478004 | 4.58 | 5.54 | |
| Carrier | ||||
| 4 | 1600320028 | 37.50 | 45.38 | |
| Air-Deflector Ring | ||||
| 5 | 1600209003 | 7.32 | 8.86 | |
| Carrier | ||||
| 6 | 1606442000 | 5.81 | 7.03 | |
| Handle | ||||
| 8 | 3605132078 | 41.30 | 49.97 | |
| Grommet | ||||
| 9 | 3600703003 | 4.58 | 5.54 | |
| Elec. Cable W/Connection | ||||
| 10 | 3604462017 | 55.56 | 67.23 | |
| O-Ring | ||||
| 12 | 1900210146 | 4.18 | 5.06 | |
| Switch | ||||
| 13 | 3607200055 | 102.63 | 124.18 | |
| Fastening Clamp | ||||
| 14 | 3601303004 | 5.27 | 6.38 | |
| Spindle Housing | ||||
| 18 | 3605806109 | 210.30 | 254.46 | |
| Nameplate | ||||
| 20 | 3601106053 | 4.58 | 5.54 | |
| Seal Ring | ||||
| 21 | 1600209006 | 2.52 | 3.05 | |
| Hex Socket Head Cap Screw | ||||
| 25 | 2910141160 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 26 | 2910211019 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 28 | 2910141166 | 1.49 | 1.80 | |
| Screw | ||||
| 29 | 2603490022 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 30 | 2914461403 | 1.90 | 2.30 | |
| Spring Washer Ø4,2 MM | ||||
| 34 | 3600150006 | 2.18 | 2.64 | |
| Clamping Saddle | ||||
| 36 | 3601321001 | 3.04 | 3.68 | |
| Grooved Nail DIN 1476-2x5 MM | ||||
| 40 | 3603133001 | 2.18 | 2.64 | |
| Socket head cap screw | ||||
| 57 | 2910021118 | 1.00 | 1.21 | |
| Retaining Bracket | ||||
| 66 | 3601303003 | 2.18 | 2.64 | |
| Strip Terminal | ||||
| 67 | 1901091110 | 1.49 | 1.80 | |
| Sealing Plate | ||||
| 68 | 3600054005 | 2.18 | 2.64 | |
| O-Ring 22,0x1,5 MM | ||||
| 69 | 3600210016 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 73 | 3600905063 | 22.88 | 27.68 | |
| Threaded Ring | ||||
| 74 | 3603344059 | 41.30 | 49.97 | |
| Carrier | ||||
| 75 | 1600320028 | 37.50 | 45.38 | |
| Collet | ||||
| 78 | 2608570118 | 22.88 | 27.68 | |
| Rotor Without Winding | ||||
| 81 | 3604080054 | 210.30 | 254.46 | |
| Fan | ||||
| 81/3 | 3606610010 | 3.71 | 4.49 | |
| Conical Spring Washer | ||||
| 82 | 1600501025 | 33.33 | 40.33 | |
| Bearing Flange | ||||
| 83 | 3605820065 | 75.38 | 91.21 | |
| Socket head cap screw | ||||
| 84 | 2910011128 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 85 | 1900905121 | 17.60 | 21.30 | |
| groove ball bearing | ||||
| 86 | 1610900025 | 13.90 | 16.82 | |
| Needle-Roller Bearing | ||||
| 90 | 1600910002 | 22.88 | 27.68 | |
| Guide Sleeve | ||||
| 91 | 3600320015 | 26.62 | 32.21 | |
| Grinding Spindle | ||||
| 92 | 1603123011 | 189.28 | 229.03 | |
| Grinding Spindle | ||||
| 92 | 160312307M | 189.28 | 229.03 | |
| Grinding Spindle | ||||
| 92/1 | 1603123011 | 189.28 | 229.03 | |
| Spacer Ring | ||||
| 97 | 1600202016 | 4.58 | 5.54 | |
| Retaining ring | ||||
| 98 | 1600224025 | 2.40 | 2.90 | |
| Reference Plate | ||||
| 99 | 3601119236 | 3.44 | 4.16 | |
| Set screw | ||||
| 102 | 1603402002 | 1.32 | 1.60 | |
| Single-Head Eng. Wrench DIN 894 SW 12 | ||||
| 651 | 1907950506 | 11.02 | 13.33 | |
| Single-Head Eng. Wrench | ||||
| 651 | 3607950025 | 7.46 | 9.03 | |
| Single-Head Eng. Wrench DIN 894 SW 15 | ||||
| 652 | 1907950509 | 11.02 | 13.33 | |
| Single-Head Eng. Wrench | ||||
| 652 | 3607950024 | 8.35 | 10.10 | |
| Single-Head Eng. Wrench DIN 894 SW 12 | ||||
| 653 | 1907950506 | 11.02 | 13.33 | |
| Single-Head Eng. Wrench DIN 894 SW 15 | ||||
| 654 | 1907950509 | 11.02 | 13.33 | |
| Collet Ø 1/4" (6,35 MM) | ||||
| 702 | 1608570058 | 37.50 | 45.38 | |
| Clamping Unit | ||||
| 702/1 | 3607030482 | 20.39 | 24.67 | |
| Nameplate | ||||
| 808 | 160111A65G | 0.83 | 1.00 | |
| Spindle Bearing | ||||
| 818 | 1605806202 | 553.26 | 669.44 | |
| Spindle Bearing | ||||
| 818/1 | 1607000E2T | 340.97 | 412.57 | |
| Collet | ||||
| 878 | 2608570118 | 22.88 | 27.68 | |
| Rotor Without Winding | ||||
| 881 | 3604080055 | 234.56 | 283.82 | |
| Grinding Spindle | ||||
| 892 | 3603123017 | 262.05 | 317.08 | |
| Grinding Spindle | ||||
| 892/1 | 1607000E2V | 126.98 | 153.65 | |
