Here you will find all available parts and drawings of the 'Bosch 0612204001 (HBH12/50)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

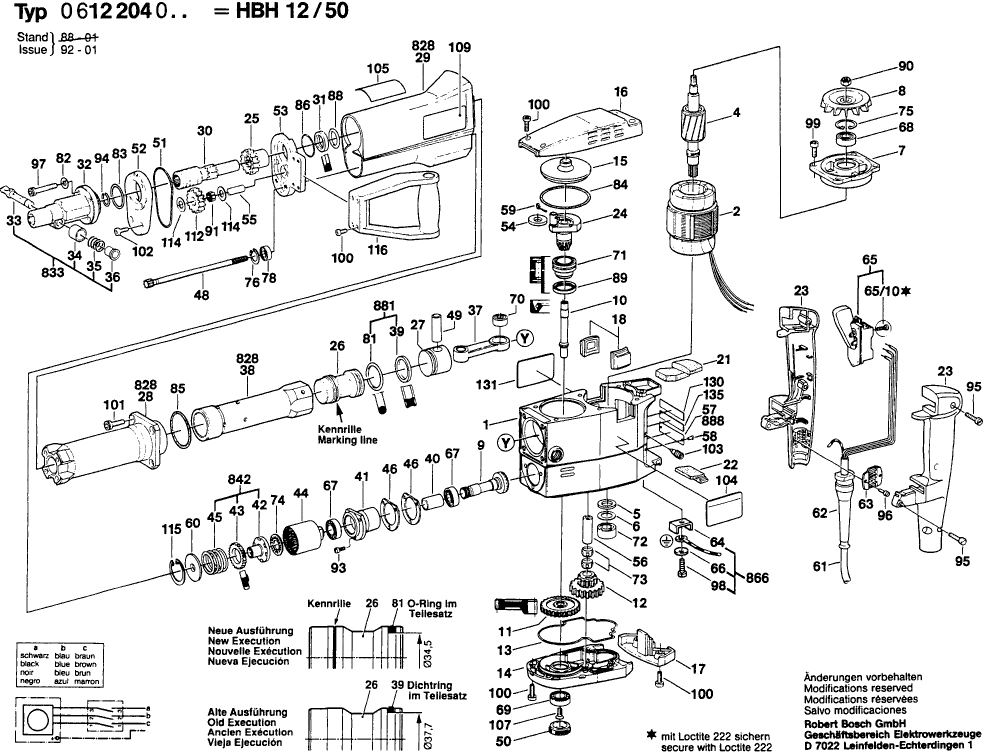

Technical drawing of model Bosch 0612204001 (HBH12/50)
Spare parts list of model Bosch 0612204001 (HBH12/50)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1615106048 | 304.19 | 368.07 | |
| Stator 250V/200HZ | ||||
| 2 | 1614229154 | 342.01 | 413.83 | |
| Rotor Without Winding | ||||
| 4 | 1614080024 | 187.62 | 227.02 | |
| Sealing disk | ||||
| 5 | 1610108012 | 1.49 | 1.80 | |
| Shim | ||||
| 6 | 1610102013 | 1.00 | 1.21 | |
| Bearing Flange | ||||
| 7 | 1615805066 | 20.42 | 24.71 | |
| Fan | ||||
| 8 | 1616610045 | 33.45 | 40.47 | |
| Bevel Gear | ||||
| 9 | 1616333016 | 80.26 | 97.11 | |
| Wheel Shaft | ||||
| 10 | 1613159007 | 39.14 | 47.36 | |
| Cylindrical Gear Z=40 | ||||
| 11 | 1616317035 | 36.85 | 44.59 | |
| Cylindrical Gear Z=46/26 | ||||
| 12 | 1616328024 | 113.29 | 137.08 | |
| Sealing Frame | ||||
| 13 | 1611015023 | 6.73 | 8.14 | |
| Gear Cover | ||||
| 14 | 1615808050 | 58.03 | 70.22 | |
| Sealing cap | ||||
| 15 | 1615500168 | 2.08 | 2.52 | |
| Fan Cover | ||||
| 16 | 1615500276 | 58.03 | 70.22 | |
| Switch Cover | ||||
| 17 | 1615500261 | 6.73 | 8.14 | |
| Sealing cap | ||||
| 18 | 1615500282 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 21 | 1612392001 | |||
| No longer available, no replacement | ||||
| 22 | 1612392000 | |||
| Handle | ||||
| 23 | 1615133025 | 23.90 | 28.92 | |
| Eccentric Cog Wheel | ||||
| 24 | 1616110029 | 495.87 | 600.00 | |
| Carrier | ||||
| 25 | 1616490024 | 80.26 | 97.11 | |
| Striker | ||||
| 26 | 1618710058 | 43.12 | 52.18 | |
| Hammer Piston | ||||
| 27 | 1618700047 | 27.81 | 33.65 | |
| Protective Tube | ||||
| 29 | 1615190019 | 19.36 | 23.43 | |
| No longer available, no replacement | ||||
| 30 | 1618598100 | |||
| Stop Disc | ||||
| 31 | 3606100101 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 37 | 1612001029 | |||
| Spacer Sleeve | ||||
| 40 | 1610400020 | 2.86 | 3.46 | |
| Bushing | ||||
| 41 | 1615801022 | 43.12 | 52.18 | |
| Clutch Element | ||||
| 44 | 1616409005 | 88.83 | 107.48 | |
| No longer available, no replacement | ||||
| 45 | 1614619006 | |||
| Shim | ||||
| 46 | 1610134004 | 4.18 | 5.06 | |
| Toothed Shaft | ||||
| 48 | 1613060009 | 80.26 | 97.11 | |
| Piston Pin | ||||
| 49 | 1610300058 | 2.86 | 3.46 | |
| Screw Plug | ||||
| 50 | 1613465003 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 51 | 1610210048 | |||
| Gear Housing | ||||
| 52 | 1615806066 | 47.68 | 57.69 | |
| Gear Housing | ||||
| 53 | 1615806064 | 179.65 | 217.38 | |
| Cover Disc | ||||
| 54 | 1610113005 | 1.49 | 1.80 | |
| Bearing bolt | ||||
| 55 | 1610300052 | 4.94 | 5.98 | |
| Bearing bolt | ||||
| 56 | 1610300057 | 6.73 | 8.14 | |
| Round-Head Grooved Pin | ||||
| 58 | 2917721034 | 1.00 | 1.21 | |
| Split Pin | ||||
| 59 | 1904681350 | 1.49 | 1.80 | |
| Cover Disc | ||||
| 60 | 1610101010 | 2.86 | 3.46 | |
| Power supply cord 5m 4 x 1,0mm | ||||
| 61 | 1614462078 | 114.26 | 138.25 | |
| Grommet | ||||
| 62 | 1600703009 | 5.81 | 7.03 | |
| Fastening Clamp | ||||
| 63 | 1611302013 | 1.32 | 1.60 | |
| On-Off Switch | ||||
| 65 | 1617200024 | 33.45 | 40.47 | |
| groove ball bearing | ||||
| 67 | 1900905163 | 10.90 | 13.19 | |
| groove ball bearing | ||||
| 68 | 1610905001 | 13.13 | 15.89 | |
| groove ball bearing | ||||
| 69 | 1900900302 | 18.94 | 22.92 | |
| Needle-Roller Bearing | ||||
| 70 | 1610910049 | 39.14 | 47.36 | |
| Needle-Roller Bearing | ||||
| 71 | 1610910060 | 31.42 | 38.02 | |
| Needle-Roller Bearing | ||||
| 72 | 1610910007 | 21.30 | 25.77 | |
| Needle-Roller Assembly | ||||
| 73 | 1610913001 | 10.90 | 13.19 | |
| Thrust Needle Rim | ||||
| 74 | 1600920000 | 4.94 | 5.98 | |
| Retaining clip | ||||
| 75 | 2916660013 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 76 | 2916660010 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 78 | 1900905159 | 27.81 | 33.65 | |
| Spring Lock Washer | ||||
| 82 | 2916690007 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 83 | 1900210136 | |||
| O-Ring | ||||
| 84 | 1900210160 | 5.81 | 7.03 | |
| O-Ring | ||||
| 85 | 1900210152 | 3.44 | 4.16 | |
| O-Ring | ||||
| 86 | 1900210130 | 3.44 | 4.16 | |
| O-Ring | ||||
| 88 | 1610210042 | 1.49 | 1.80 | |
| Shaft Seal | ||||
| 89 | 2916740053 | 11.37 | 13.76 | |
| Hex Nut | ||||
| 90 | 2915061005 | 2.40 | 2.90 | |
| Needle-Roller Assembly | ||||
| 91 | 1610913006 | 3.44 | 4.16 | |
| Hex Socket Head Cap Screw | ||||
| 93 | 2910141158 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 94 | 2916601012 | 2.08 | 2.52 | |
| Oval-Head Screw | ||||
| 95 | 2914201506 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 96 | 2910021118 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 97 | 1613414007 | 1.90 | 2.30 | |
| Hex Socket Head Cap Screw | ||||
| 99 | 2910141201 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 100 | 2910141201 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 101 | 2910141244 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 102 | 2910141158 | 1.00 | 1.21 | |
| Set screw DIN 915-M8x16-45H | ||||
| 103 | 2912081238 | 1.32 | 1.60 | |
| Manufacturer's nameplate | ||||
| 104 | 1611110492 | 1.94 | 2.35 | |
| Reference Plate | ||||
| 105 | 1611110493 | 2.71 | 3.28 | |
| Countersunk-Head Screw | ||||
| 107 | 2910540238 | 2.40 | 2.90 | |
| Reference Plate | ||||
| 109 | 1611110489 | 2.00 | 2.42 | |
| No longer available, no replacement | ||||
| 112 | 1616317027 | |||
| Shim | ||||
| 114 | 1600101641 | 3.44 | 4.16 | |
| Spring retaining ring | ||||
| 115 | 2916660020 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 130 | 1601110265 | |||
| Manufacturer's nameplate | ||||
| 131 | 1611110488 | 2.52 | 3.05 | |
| Reference Plate | ||||
| 135 | 1611110387 | 1.49 | 1.80 | |
| Parts Set | ||||
| 650 | 1617000051 | 44.82 | 54.23 | |
| Offset Screwdriver | ||||
| 650/10 | 1907950007 | 4.94 | 5.98 | |
| Protective Cap | ||||
| 650/20 | 1610508014 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 650/30 | 160202509Z | 14.94 | 18.08 | |
| Auxiliary Handle | ||||
| 650/30 | 16020250A1 | 13.13 | 15.89 | |
| Fastening Rod | ||||
| 650/40 | 1610762003 | 15.61 | 18.89 | |
| Protective Cap | ||||
| 650/50 | 1610508013 | 0.83 | 1.00 | |
| Carrying Case | ||||
| 651 | 1615438107 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 813 | 1617000158 | |||
| Parts Set | ||||
| 816 | 1617000101 | 26.62 | 32.21 | |
| Parts Set | ||||
| 828 | 1617000916 | 553.26 | 669.44 | |
| Tool Holder Set | ||||
| 832 | 1617000100 | 285.84 | 345.87 | |
| No longer available, no replacement | ||||
| 833 | 1617000014 | |||
| Parts Set | ||||
| 842 | 1617000091 | 98.18 | 118.80 | |
| Clamping Saddle | ||||
| 866 | 1617000156 | 2.52 | 3.05 | |
| No longer available, no replacement | ||||
| 881 | 1617000172 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
