Here you will find all available parts and drawings of the 'Bosch 3601GB0610 (GWX18V-50PC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

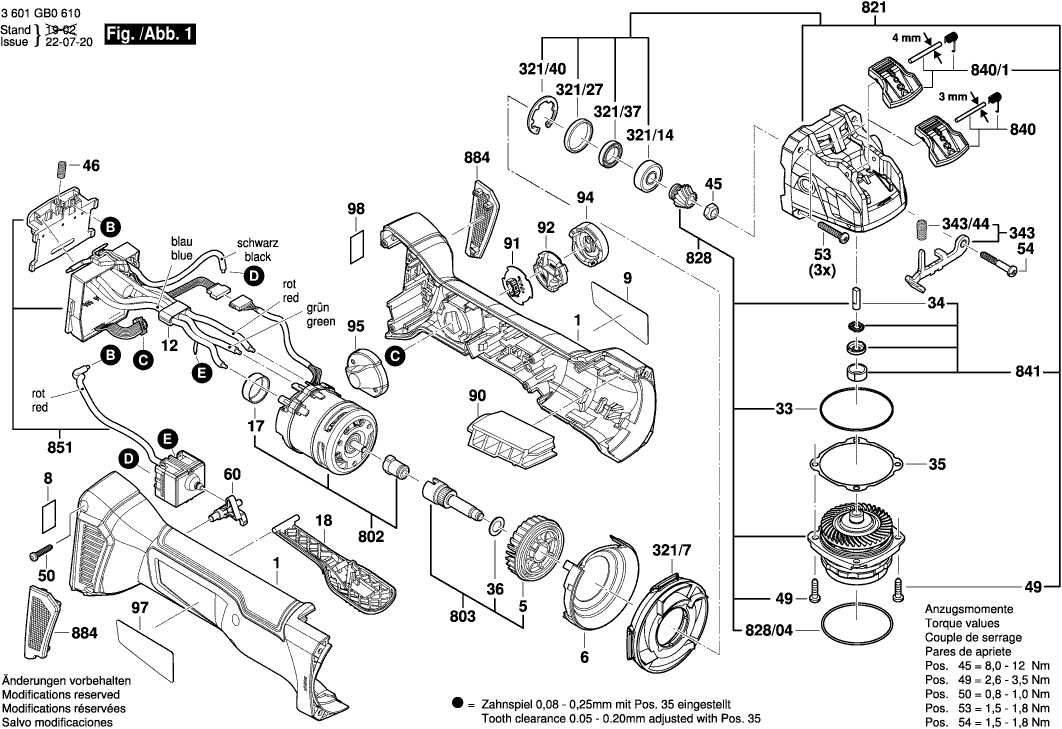

Technical drawing of model Bosch 3601GB0610 (GWX18V-50PC)
Spare parts list of model Bosch 3601GB0610 (GWX18V-50PC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 16051082EL | 21.30 | 25.77 | |
| Fan | ||||
| 5 | 160661016E | 2.86 | 3.46 | |
| Air-Deflector Ring | ||||
| 6 | 1600591065 | 2.40 | 2.90 | |
| Nameplate GWX18V-50PC | ||||
| 8 | 160111A6V3 | 2.18 | 2.64 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C2VA | 2.18 | 2.64 | |
| Ferrite | ||||
| 12 | 1600A00RK2 | 2.08 | 2.52 | |
| Cover | ||||
| 17 | 1600100P12 | 1.49 | 1.80 | |
| Switch-Pawl | ||||
| 18 | 1600A00R9F | 4.18 | 5.06 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Braking Element | ||||
| 34 | 1600A012X9 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Washer | ||||
| 36 | 1610100023 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 49 | 160343508X | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 50 | 1603435071 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Reverse-Transfer Lever | ||||
| 60 | 1600A00R9L | 1.49 | 1.80 | |
| Cover | ||||
| 90 | 1600A00P2N | 2.08 | 2.52 | |
| Electronics Module | ||||
| 91 | 1607503438 | 13.13 | 15.89 | |
| Cover Panel | ||||
| 92 | 1600A00M53 | 1.00 | 1.21 | |
| Cover | ||||
| 94 | 16055002BV | 2.08 | 2.52 | |
| Cover | ||||
| 95 | 1600A00P1B | 1.00 | 1.21 | |
| Warning Plate | ||||
| 97 | 160111C2A1 | 2.18 | 2.64 | |
| Warning Plate | ||||
| 98 | 160111C16U | 2.18 | 2.64 | |
| groove ball bearing | ||||
| 321/14 | 1600905032 | 5.81 | 7.03 | |
| Rubber Ring | ||||
| 321/27 | 1600206025 | 2.08 | 2.52 | |
| Holder | ||||
| 321/37 | 1600A00P17 | 1.00 | 1.21 | |
| Retaining clip | ||||
| 321/40 | 1600119011 | 2.08 | 2.52 | |
| Air Distributor | ||||
| 321/7 | 160059105N | 2.08 | 2.52 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 650/1 | 16020250A0 | 10.90 | 13.19 | |
| Charger | ||||
| 652 | 2607225921 | 165.14 | 199.82 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 653 | 2607337069 | 114.26 | 138.25 | |
| Motor | ||||
| 802 | 1607000CA4 | 102.63 | 124.18 | |
| Bevel Gear Shaft | ||||
| 803 | 1607000CA5 | 11.37 | 13.76 | |
| Gear Housing | ||||
| 821 | 1607000EA2 | 26.62 | 32.21 | |
| Parts Set | ||||
| 828 | 1607000D5J | 55.56 | 67.23 | |
| O-Ring | ||||
| 828/04 | 3600210109 | 2.08 | 2.52 | |
| Parts Set | ||||
| 840 | 1607000D5X | 6.73 | 8.14 | |
| Lever | ||||
| 840/1 | 1607000EA6 | 3.44 | 4.16 | |
| Parts Set | ||||
| 841 | 1607000D5Z | 4.94 | 5.98 | |
| Electronics Module | ||||
| 851 | 1607000D90 | 126.98 | 153.65 | |
| Filter Unit | ||||
| 884 | 1607000CA9 | 10.90 | 13.19 | |
| Auxiliary Handle | ||||
| 891 | 1602025027 | 6.73 | 8.14 | |
| Protective Cover | ||||
| 892 | 1607000DG8 | 12.21 | 14.77 | |
