Here you will find all available parts and drawings of the 'Bosch 3601GC9200 (GWX750-115)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

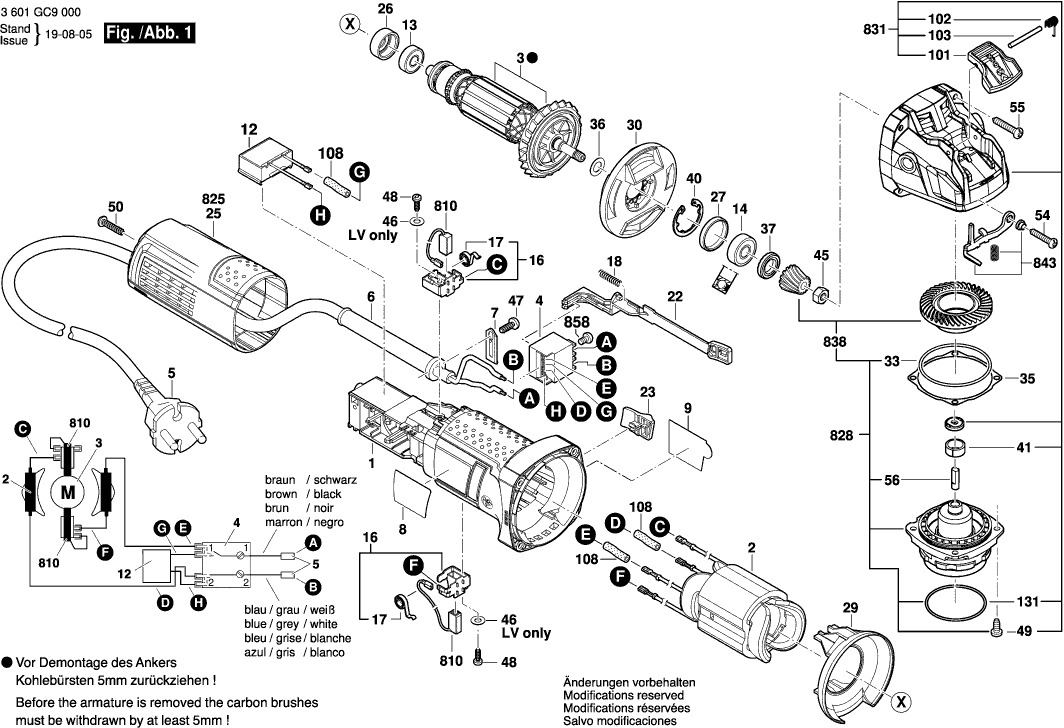

Technical drawing of model Bosch 3601GC9200 (GWX750-115)
Spare parts list of model Bosch 3601GC9200 (GWX750-115)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P10958 | 4.94 | 5.98 | |
| Field | ||||
| 2 | 160422059E | 16.79 | 20.32 | |
| Armature | ||||
| 3 | 1604010BM8 | 27.81 | 33.65 | |
| Switch | ||||
| 4 | 1607200326 | 7.46 | 9.03 | |
| Power supply cord | ||||
| 5 | 1604460312 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Nameplate | ||||
| 8 | 1619P17059 | 2.40 | 2.90 | |
| Manufacturer's nameplate GWX 750-115 | ||||
| 9 | 1619P17060 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1619P15041 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 13 | 1619P14660 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 1619P13103 | 2.86 | 3.46 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 18 | 1619P11487 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 22 | 1619P10967 | 1.00 | 1.21 | |
| Switch Button | ||||
| 23 | 1619P17018 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 25 | 1619P10963 | 3.44 | 4.16 | |
| Intermediate Ring | ||||
| 26 | 1600502023 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1619P10970 | 1.00 | 1.21 | |
| Air Distributor | ||||
| 30 | 1619P14769 | 1.49 | 1.80 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Washer | ||||
| 36 | 1619P00987 | 1.00 | 1.21 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 41 | 1600A012V6 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Special Screw | ||||
| 47 | 2609110052 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P00220 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 160343508X | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 1619P00105 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 54 | 2603490025 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 55 | 1619P01066 | 1.00 | 1.21 | |
| Braking Element | ||||
| 56 | 1600A021AR | 1.00 | 1.21 | |
| Lever | ||||
| 101 | 1600A012V1 | 1.49 | 1.80 | |
| Torsion Spring | ||||
| 102 | 1600A012V3 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 103 | 1600A012V4 | 1.00 | 1.21 | |
| Shrinkable Tube | ||||
| 108 | 1619P02866 | 1.00 | 1.21 | |
| O-Ring | ||||
| 131 | 3600210109 | 2.08 | 2.52 | |
| Auxiliary Handle | ||||
| 650/1 | 1619P10681 | 3.44 | 4.16 | |
| Protective Cover | ||||
| 651 | 1600A00XK8 | 13.13 | 15.89 | |
| Carbon-Brush Set | ||||
| 810 | 1619P11715 | 5.81 | 7.03 | |
| Parts Set | ||||
| 828 | 1619P17082 | 64.67 | 78.25 | |
| Gear Housing | ||||
| 831 | 1619P17085 | 39.14 | 47.36 | |
| Set Of Gears | ||||
| 838 | 1619P17086 | 16.79 | 20.32 | |
| Catch Lever | ||||
| 843 | 1607000742 | 7.46 | 9.03 | |
| Oval-Head Screw | ||||
| 858 | 2910641081 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 891 | 16020250A0 | 10.90 | 13.19 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
