Here you will find all available parts and drawings of the 'Bosch 3601JH6502 (GWX18V-15SC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

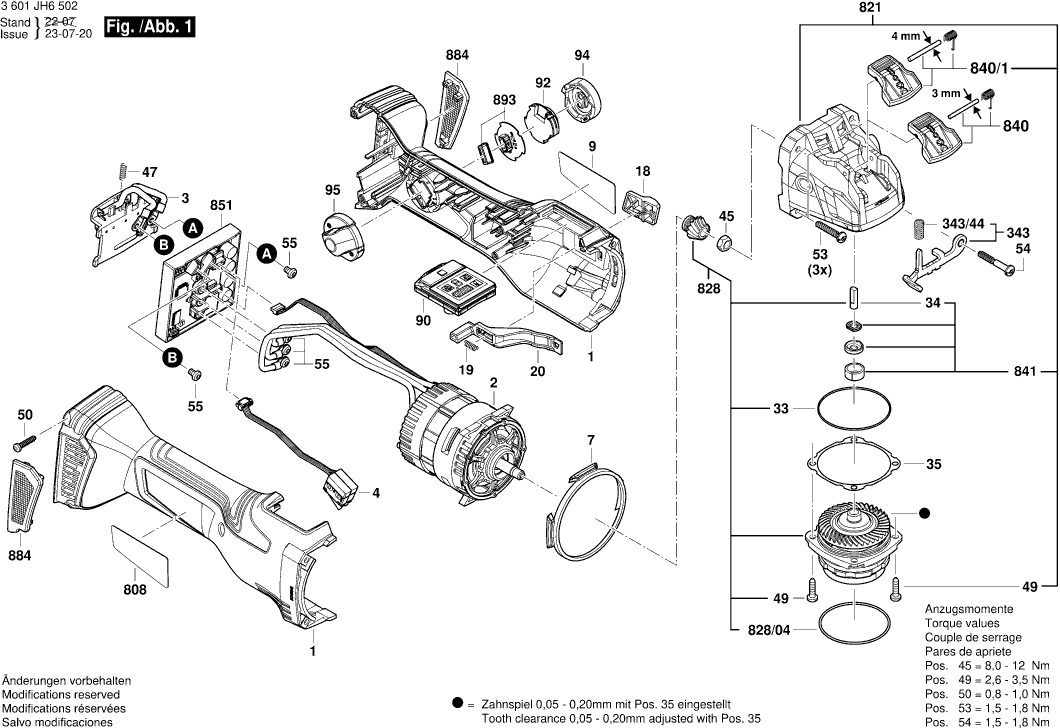

Technical drawing of model Bosch 3601JH6502 (GWX18V-15SC)
Spare parts list of model Bosch 3601JH6502 (GWX18V-15SC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 16051082J3 | 18.94 | 22.92 | |
| DC motor | ||||
| 2 | 1607022661 | 122.80 | 148.59 | |
| Contact Plate | ||||
| 3 | 1600A024C4 | 10.90 | 13.19 | |
| Switch Unit | ||||
| 4 | 1600A016JC | 16.79 | 20.32 | |
| Cover Ring | ||||
| 7 | 1600A016U4 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C2SG | 2.40 | 2.90 | |
| Switch Handle | ||||
| 18 | 1600A016PW | 1.00 | 1.21 | |
| Compression Spring | ||||
| 19 | 160461203M | 1.00 | 1.21 | |
| Switch Slide | ||||
| 20 | 1600A016PX | 1.00 | 1.21 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Braking Element | ||||
| 34 | 1600A012X9 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 47 | 1609280477 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914491410 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 50 | 1603435071 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Screw | ||||
| 55 | 160343003T | 1.00 | 1.21 | |
| Electronic Module | ||||
| 90 | 16072335LN | 43.12 | 52.18 | |
| Electronics Module | ||||
| 92 | 1600A013WF | 34.82 | 42.13 | |
| Cover | ||||
| 94 | 16055002FA | 1.49 | 1.80 | |
| Dust-Protection Cover | ||||
| 95 | 1600A019TY | 1.00 | 1.21 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 650/1 | 16020250A0 | 10.90 | 13.19 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Fast Charger | ||||
| 652 | 1600A01US1 | 173.95 | 210.48 | |
| Charger | ||||
| 652 | 2607225921 | 165.14 | 199.82 | |
| Battery Pack GBA 18V 8.0Ah ProCore SCM | ||||
| 653 | 1607A350AT | 244.89 | 296.32 | |
| Battery Pack GBA 18V 5.5 Ah XL ProCore SCM | ||||
| 653 | 1607A350LR | 197.62 | 239.12 | |
| Nameplate | ||||
| 808 | 160111A9C2 | 2.40 | 2.90 | |
| Nameplate | ||||
| 808 | 160111A6BB | 2.18 | 2.64 | |
| Gear Housing | ||||
| 821 | 1607000D89 | 33.33 | 40.33 | |
| Gear Housing | ||||
| 821 | 1607000EA4 | 27.81 | 33.65 | |
| Bearing Flange | ||||
| 828 | 1607000D8A | 64.67 | 78.25 | |
| O-Ring | ||||
| 828/04 | 3600210109 | 2.08 | 2.52 | |
| Parts Set | ||||
| 840 | 1607000D5X | 6.73 | 8.14 | |
| Lever | ||||
| 840/1 | 1607000EA6 | 3.44 | 4.16 | |
| Parts Set | ||||
| 841 | 1607000D5Z | 4.94 | 5.98 | |
| Electronic Module | ||||
| 851 | 1607000DK3 | 136.48 | 165.14 | |
| Protective Cover | ||||
| 852 | 1600A021MH | 9.67 | 11.70 | |
| Filter Unit | ||||
| 884 | 1607000CA9 | 10.90 | 13.19 | |
| Electronics Module | ||||
| 893 | 1607000D91 | 11.37 | 13.76 | |
