Here you will find all available parts and drawings of the 'Bosch 3601GC3000 ( GWX17-125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

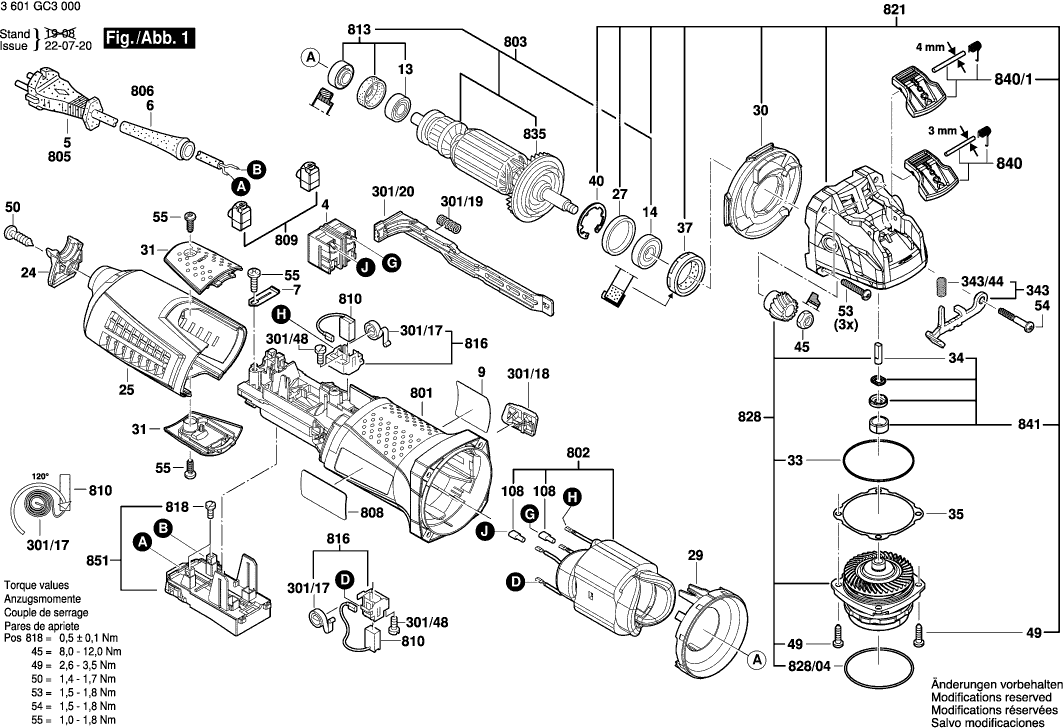

Technical drawing of model Bosch 3601GC3000 ( GWX17-125 )
Spare parts list of model Bosch 3601GC3000 ( GWX17-125 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 4 | 160720035A | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 1600703043 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C2V6 | 2.18 | 2.64 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1600905032 | 5.81 | 7.03 | |
| Cover | ||||
| 24 | 1605500274 | 2.86 | 3.46 | |
| Housing Cover | ||||
| 25 | 1605500276 | 8.35 | 10.10 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591047 | 2.08 | 2.52 | |
| Air Distributor | ||||
| 30 | 1600591048 | 2.40 | 2.90 | |
| Brush-Cover | ||||
| 31 | 1600A01M0M | 3.44 | 4.16 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Braking Element | ||||
| 34 | 1600A012X9 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 160343508X | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 55 | 2603490021 | 1.00 | 1.21 | |
| Insulating Part | ||||
| 108 | 1600712030 | 1.49 | 1.80 | |
| Spiral Spring | ||||
| 301/17 | 1604652021 | 1.00 | 1.21 | |
| Switch Handle | ||||
| 301/18 | 1602026091 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 301/19 | 1604611031 | 2.52 | 3.05 | |
| Adjusting Slide | ||||
| 301/20 | 1602319026 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 301/48 | 1613435034 | 1.00 | 1.21 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 650/1 | 16020250A0 | 10.90 | 13.19 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Motor Housing | ||||
| 801 | 1607000CY2 | 16.79 | 20.32 | |
| Field assembly | ||||
| 802 | 1604220532 | 23.90 | 28.92 | |
| Armature With Fan | ||||
| 803 | 1607000V35 | 61.93 | 74.94 | |
| Power supply cord | ||||
| 805 | 1607000392 | 21.30 | 25.77 | |
| Nameplate | ||||
| 808 | 160111A6JD | 2.18 | 2.64 | |
| Seal | ||||
| 809 | 1607000D9C | 1.49 | 1.80 | |
| Carbon-Brush Set | ||||
| 810 | 1607000V37 | 13.13 | 15.89 | |
| groove ball bearing | ||||
| 813 | 1607000V38 | 7.46 | 9.03 | |
| Brush Holder | ||||
| 816 | 1607000V43 | 3.44 | 4.16 | |
| Pan head screw | ||||
| 818 | 1607000V42 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 821 | 1607000D5C | 33.33 | 40.33 | |
| Gear Housing | ||||
| 821 | 1607000E9Y | 31.42 | 38.02 | |
| Parts Set | ||||
| 828 | 1607000D5G | 58.03 | 70.22 | |
| O-Ring | ||||
| 828/04 | 3600210109 | 2.08 | 2.52 | |
| Fan | ||||
| 835 | 1616B00064 | 2.08 | 2.52 | |
| Parts Set | ||||
| 840 | 1607000D5X | 6.73 | 8.14 | |
| Lever | ||||
| 840/1 | 1607000EA6 | 3.44 | 4.16 | |
| Parts Set | ||||
| 841 | 1607000D5Z | 4.94 | 5.98 | |
| Speed governor | ||||
| 851 | 1607000DA3 | 47.53 | 57.51 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 9.67 | 11.70 | |
