Here you will find all available parts and drawings of the 'Bosch 3601GB9000 ( GWX15-125PS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

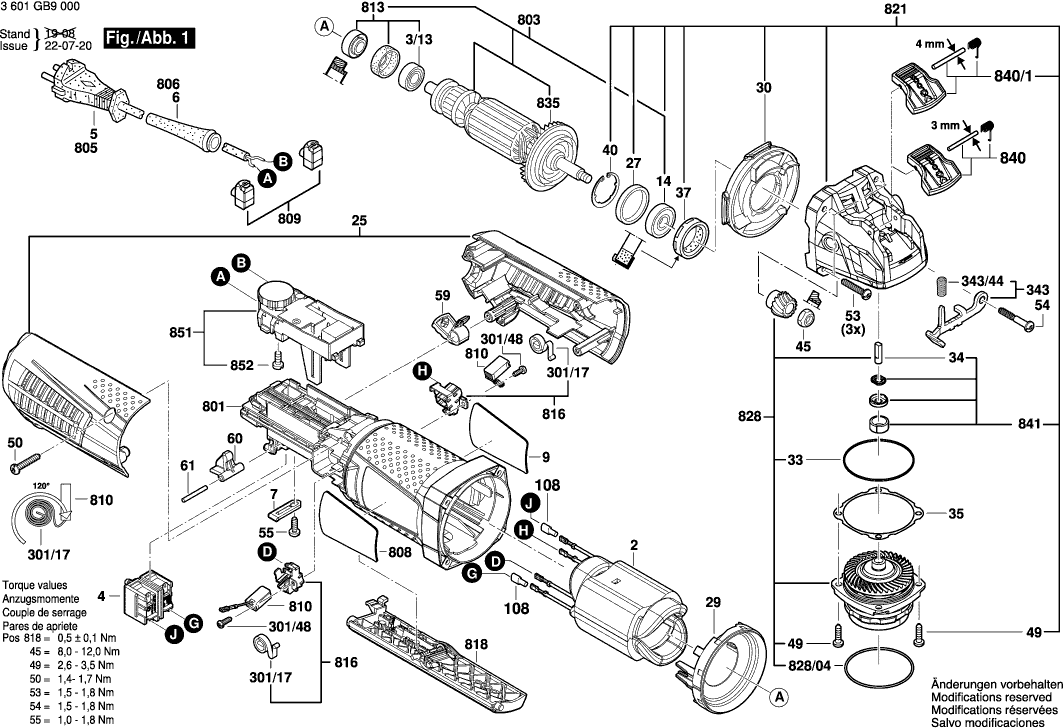

Technical drawing of model Bosch 3601GB9000 ( GWX15-125PS )
Spare parts list of model Bosch 3601GB9000 ( GWX15-125PS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1607000F0B | 23.75 | 28.74 | |
| Field | ||||
| 2 | 1604220478 | 22.36 | 27.06 | |
| Ball Bearing 7x19x6 | ||||
| 3/13 | 2600905032 | 4.10 | 4.96 | |
| Switch | ||||
| 4 | 160720035A | 8.45 | 10.22 | |
| Grommet | ||||
| 6 | 1600703043 | 1.94 | 2.35 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C2TW | 1.94 | 2.35 | |
| groove ball bearing 8x22x7 | ||||
| 14 | 1600905032 | 4.70 | 5.69 | |
| Housing Section | ||||
| 25 | 1605108292 | 7.58 | 9.17 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 1600591047 | 1.70 | 2.06 | |
| Air Distributor | ||||
| 30 | 1600591048 | 1.94 | 2.35 | |
| O-Ring 46,0x1,1 MM | ||||
| 33 | 1600210035 | 1.18 | 1.43 | |
| Braking Element | ||||
| 34 | 1600A012X9 | 1.70 | 2.06 | |
| Shim 0,15 MM THICK | ||||
| 35 | 1600136020 | 2.71 | 3.28 | |
| Shim 0,1 MM THICK | ||||
| 35 | 1600136013 | 1.94 | 2.35 | |
| Shim 0,2 MM THICK | ||||
| 35 | 1600136014 | 1.94 | 2.35 | |
| Shim 0,3 MM THICK | ||||
| 35 | 1600136015 | 1.94 | 2.35 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 1.94 | 2.35 | |
| Retaining clip | ||||
| 40 | 1600119011 | 1.70 | 2.06 | |
| Hex Nut M7, SW10 | ||||
| 45 | 1603300016 | 1.18 | 1.43 | |
| Thread-forming tap. Screw M4x16-St w/ Precote 85- | ||||
| 49 | 160343508X | 0.83 | 1.00 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x30 | ||||
| 54 | 1603414026 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x12 | ||||
| 55 | 2603490021 | 0.83 | 1.00 | |
| Plug | ||||
| 59 | 1600591054 | 0.83 | 1.00 | |
| Reverse-Transfer Lever | ||||
| 60 | 1602026095 | 0.83 | 1.00 | |
| Straight Pin | ||||
| 61 | 1600A00X5A | 0.83 | 1.00 | |
| Insulating Part | ||||
| 108 | 1600712030 | 1.18 | 1.43 | |
| Spiral Spring | ||||
| 301/17 | 1604652021 | 0.83 | 1.00 | |
| Lens Head Screw 3x10 ST | ||||
| 301/48 | 1613435034 | 0.83 | 1.00 | |
| Catch Lever | ||||
| 343 | 1607000742 | 5.83 | 7.05 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.18 | 1.43 | |
| Auxiliary Handle | ||||
| 650/1 | 16020250A0 | 8.45 | 10.22 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 7.96 | 9.63 | |
| Motor Housing | ||||
| 801 | 1607000D99 | 11.88 | 14.37 | |
| Armature With Fan 230V | ||||
| 803 | 1607000V35 | 55.25 | 66.85 | |
| Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F | ||||
| 805 | 1607000392 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 160111A6JB | 1.94 | 2.35 | |
| Seal | ||||
| 809 | 1607000D9C | 1.18 | 1.43 | |
| Carbon-Brush Set | ||||
| 810 | 1607000V37 | 11.88 | 14.37 | |
| groove ball bearing | ||||
| 813 | 1607000V38 | 5.83 | 7.05 | |
| Brush Holder | ||||
| 816 | 1607000V43 | 2.71 | 3.28 | |
| Switch-Pawl | ||||
| 818 | 1607000504 | 7.58 | 9.17 | |
| Gear Housing | ||||
| 821 | 1607000D5C | 28.01 | 33.89 | |
| Gear Housing | ||||
| 821 | 1607000E9Y | 26.84 | 32.48 | |
| Parts Set | ||||
| 828 | 1607000D5G | 49.56 | 59.97 | |
| O-Ring 47,0x1,5 MM | ||||
| 828/04 | 3600210109 | 1.70 | 2.06 | |
| Fan | ||||
| 835 | 1606610132 | 1.70 | 2.06 | |
| Parts Set | ||||
| 840 | 1607000D5X | 5.33 | 6.45 | |
| Lever | ||||
| 840/1 | 1607000EA6 | 2.71 | 3.28 | |
| Parts Set | ||||
| 841 | 1607000D5Z | 4.10 | 4.96 | |
| Speed governor | ||||
| 851 | 1607000DB5 | 49.56 | 59.97 | |
| Pan head screw | ||||
| 852 | 1607000V42 | 0.83 | 1.00 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 7.58 | 9.17 | |
