Here you will find all available parts and drawings of the 'Bosch 3601GB3000 (GWX10-125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

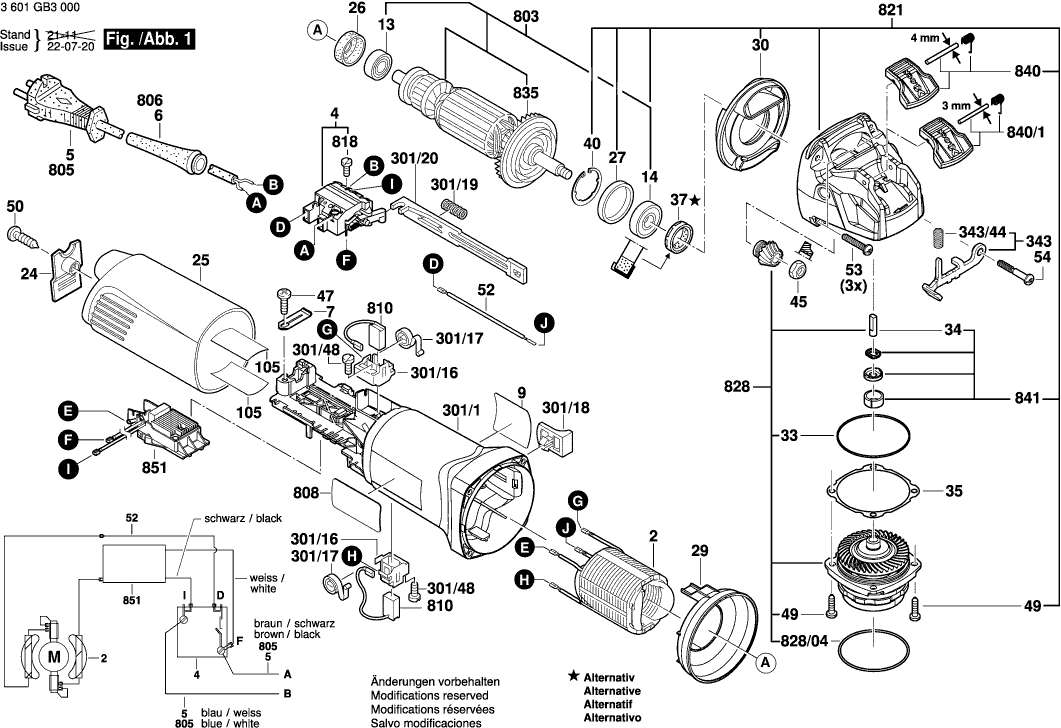

Technical drawing of model Bosch 3601GB3000 (GWX10-125)
Spare parts list of model Bosch 3601GB3000 (GWX10-125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1607000F0R | 33.33 | 40.33 | |
| Switch | ||||
| 4 | 1607200199 | 14.94 | 18.08 | |
| Grommet | ||||
| 6 | 1600703039 | 2.18 | 2.64 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C2TV | 2.40 | 2.90 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1600905032 | 5.81 | 7.03 | |
| Cover | ||||
| 24 | 1605500228 | 2.52 | 3.05 | |
| Housing Cover | ||||
| 25 | 1605500251 | 7.46 | 9.03 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| Air-Deflector Ring | ||||
| 30 | 1600591014 | 2.40 | 2.90 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Braking Element | ||||
| 34 | 1600A012X9 | 2.08 | 2.52 | |
| Braking Element | ||||
| 34 | 1600A021AR | 1.00 | 1.21 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 47 | 2603490021 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 160343508X | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 52 | 1604448013 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Insulating Plate | ||||
| 105 | 1601008005 | 4.94 | 5.98 | |
| Motor Housing | ||||
| 301/1 | 1605108249 | 9.47 | 11.46 | |
| Brush Holder | ||||
| 301/16 | 1601323023 | 3.44 | 4.16 | |
| Brush Holder | ||||
| 301/16 | 1601323025 | 3.44 | 4.16 | |
| Spiral Spring | ||||
| 301/17 | 1604652013 | 1.49 | 1.80 | |
| Switch Handle | ||||
| 301/18 | 1602026088 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 301/19 | 1619P09932 | 1.28 | 1.55 | |
| Compression Spring | ||||
| 301/19 | 1604611026 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 301/20 | 1602319011 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 301/48 | 1613435034 | 1.00 | 1.21 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Armature With Fan | ||||
| 803 | 1604010A20 | 55.56 | 67.23 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A6J3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607000482 | 110.30 | 133.46 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 12.82 | 15.51 | |
| Pan head screw | ||||
| 818 | 2910110048 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 821 | 1607000D5B | 33.33 | 40.33 | |
| Gear Housing | ||||
| 821 | 1607000E9X | 23.90 | 28.92 | |
| Parts Set | ||||
| 828 | 1607000D5G | 58.03 | 70.22 | |
| O-Ring | ||||
| 828/04 | 3600210109 | 2.08 | 2.52 | |
| Fan | ||||
| 835 | 1616B00064 | 2.08 | 2.52 | |
| Fan | ||||
| 835 | 1606610132 | 2.08 | 2.52 | |
| Parts Set | ||||
| 840 | 1607000D5X | 6.73 | 8.14 | |
| Lever | ||||
| 840/1 | 1607000EA6 | 3.44 | 4.16 | |
| Parts Set | ||||
| 841 | 1607000D5Z | 4.94 | 5.98 | |
| Speed governor | ||||
| 851 | 16072335CG | 58.03 | 70.22 | |
| Auxiliary Handle | ||||
| 891 | 16020250A0 | 10.90 | 13.19 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 891 | 160202509T | 3.44 | 4.16 | |
