Here you will find all available parts and drawings of the 'Bosch 3601C960K0 ( GWS900-100 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

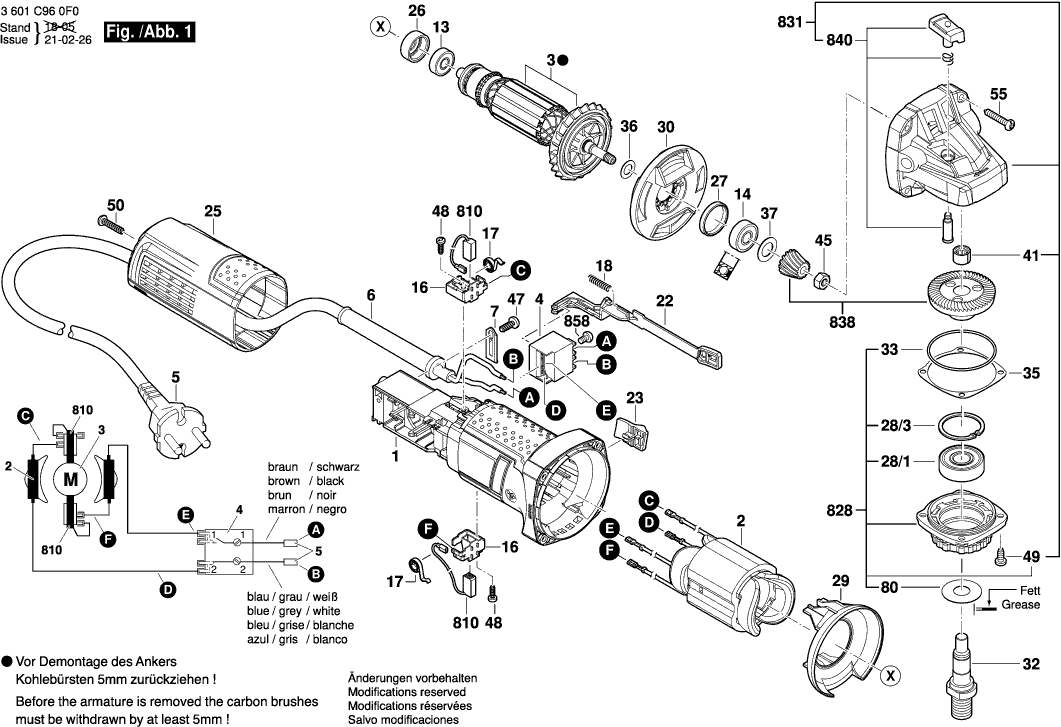

Technical drawing of model Bosch 3601C960K0 ( GWS900-100 )

Spare parts list of model Bosch 3601C960K0 ( GWS900-100 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 1619P10959 4.10 4.96
Field
2 160422059G 20.42 24.71
Field
2 1619P10953 14.80 17.91
Armature
3 1604010BN1 20.42 24.71
Armature
3 1619P10952 17.13 20.73
Switch
4 160720031Y 7.58 9.17
Power supply cord CN 2,65m 2 x 0,75mm H05 W-F
5 1607000387 8.45 10.22
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Fastening Clamp
7 1601302017 0.83 1.00
groove ball bearing
13 1619P14660 1.94 2.35
groove ball bearing
14 1619P13103 2.24 2.71
Brush Holder
16 1619P01811 2.24 2.71
Spiral Spring
17 1604652013 1.18 1.43
Compression Spring
18 1619P11487 0.83 1.00
Adjusting Slide
22 1619P10968 0.83 1.00
Switch Button
23 1619P10969 0.83 1.00
Housing Cover
25 1619P13558 3.31 4.01
Intermediate Ring
26 1600502023 1.70 2.06
Rubber Ring
27 1600206025 1.70 2.06
Ball Bearing
28/1 1619P07440 5.33 6.45
Retaining clip DIN 472-32x1,2 MM
28/3 2916660013 1.70 2.06
Air-Deflector Ring
29 1619P10970 0.83 1.00
Air Distributor
30 1619P14139 1.18 1.43
Grinding Spindle M10, SW12
32 1603523111 5.33 6.45
O-Ring 44,0x1,0 MM
33 1619P02820 1.18 1.43
Shim 0,2 MM
35 1619P02822 1.18 1.43
Shim 0,1 MM
35 1619P02821 0.83 1.00
Washer
36 1619P00987 0.83 1.00
Cover Disc
37 1600100033 1.94 2.35
Needle bearing Ø8xØ12x8 MM
41 1600910018 4.10 4.96
Hex Nut DIN 934-M6-8-A
45 2915011007 0.83 1.00
Special Screw
47 2609110052 0.83 1.00
Torx Oval-Head Screw 3x10
48 1619P00220 0.83 1.00
Thread-forming tap. Screw DIN 7500, M4x10, SR10.2
49 1603435068 1.18 1.43
Torx Oval-Head Screw 4x20
50 1619P00105 1.18 1.43
Torx Oval-Head Screw 4x25
55 1619P01066 0.83 1.00
Cover Disc
80 1619P09390 1.70 2.06
Protective Cover
650/1 1600A025XP 7.58 9.17
Round Nut With 2 Holes
650/2 1619P09976 1.70 2.06
Pin-Type Face-Wrench
650/3 1619P08927 3.31 4.01
Clamping-Flange M10, 16-20 MM
650/5 1605703113 1.18 1.43
O-Ring 20,35x1,78 MM
650/5/2 1600210039 1.70 2.06
Protective Cover Ø100 MM SILVER
651 1600A00XU5 6.54 7.91
Carbon-Brush Set
810 1619P11715 4.70 5.69
Bearing Flange
828 1619P07451 12.41 15.02
Gear Housing
831 1619P12186 11.88 14.37
Set Of Gears
838 1619P16293 12.41 15.02
Push Button
840 1619P12188 1.18 1.43
Oval-Head Screw DIN7985-M3,5x5-4.8-H
858 2910641081 0.83 1.00
Grease Tube 225 ML
894 1615430020 15.71 19.01
Grease Tube 225 ML
895 1605430003 29.75 36.00
