Here you will find all available parts and drawings of the 'Bosch 3601C96009 (GWS900)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

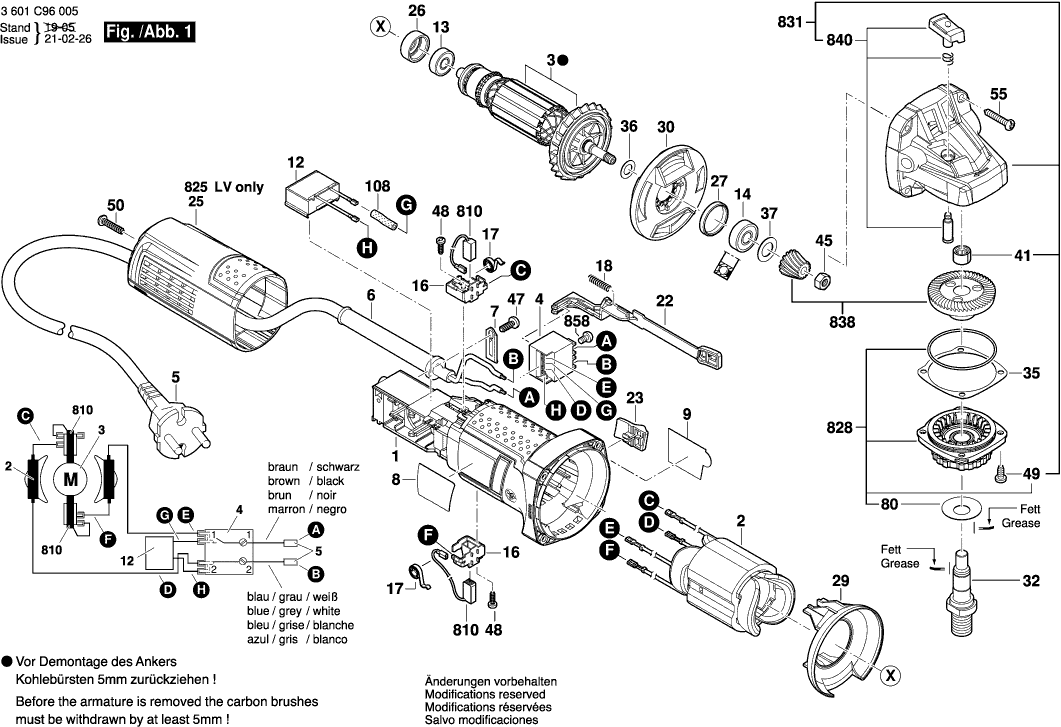

Technical drawing of model Bosch 3601C96009 (GWS900)
Spare parts list of model Bosch 3601C96009 (GWS900)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P10959 | 4.94 | 5.98 | |
| Field | ||||
| 2 | 160422059G | 23.90 | 28.92 | |
| Armature | ||||
| 3 | 1604010BN1 | 22.88 | 27.68 | |
| Switch | ||||
| 4 | 1607200326 | 7.46 | 9.03 | |
| Power supply cord | ||||
| 5 | 1604460312 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Nameplate | ||||
| 8 | 1619P20915 | 2.18 | 2.64 | |
| Nameplate | ||||
| 8 | 1619PS4337 | 2.08 | 2.52 | |
| Manufacturer's nameplate GWS 900 | ||||
| 9 | 1619P20916 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1619P15041 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 13 | 1619P08829 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 1619P13103 | 2.86 | 3.46 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 18 | 1619P11487 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 22 | 1619P10968 | 1.00 | 1.21 | |
| Switch Button | ||||
| 23 | 1619P10969 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 25 | 1619P13558 | 4.18 | 5.06 | |
| Intermediate Ring | ||||
| 26 | 1600502023 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1619P10970 | 1.00 | 1.21 | |
| Air Distributor | ||||
| 30 | 1619P14139 | 1.49 | 1.80 | |
| Grinding Spindle | ||||
| 32 | 1619P06419 | 10.90 | 13.19 | |
| Shim | ||||
| 35 | 1619P02822 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1619P02821 | 1.00 | 1.21 | |
| Washer | ||||
| 36 | 1619P00987 | 1.00 | 1.21 | |
| Cover Disc | ||||
| 37 | 1600100033 | 2.40 | 2.90 | |
| Needle bearing | ||||
| 41 | 1600910018 | 4.94 | 5.98 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Special Screw | ||||
| 47 | 2609110052 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P00220 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1619P11118 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 50 | 1619P00105 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 55 | 1619P01066 | 1.00 | 1.21 | |
| Cover Disc | ||||
| 80 | 1619P09390 | 2.08 | 2.52 | |
| Shrinkable Tube | ||||
| 108 | 1619P02866 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 650/1 | 1619P10681 | 3.44 | 4.16 | |
| Round Nut | ||||
| 650/2 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 650/3 | 1619P08927 | 4.18 | 5.06 | |
| Clamping Flange | ||||
| 650/5 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/5/2 | 1600210039 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 651 | 1600A00XU7 | 8.35 | 10.10 | |
| Carbon-Brush Set | ||||
| 810 | 1619P11715 | 5.81 | 7.03 | |
| Bearing Flange | ||||
| 828 | 1619P07452 | 9.67 | 11.70 | |
| Gear Housing | ||||
| 831 | 1619P12186 | 13.13 | 15.89 | |
| Set Of Gears | ||||
| 838 | 1619P14111 | 11.37 | 13.76 | |
| Push Button | ||||
| 840 | 1619P12188 | 1.49 | 1.80 | |
| Oval-Head Screw | ||||
| 858 | 2910641081 | 1.00 | 1.21 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
