Here you will find all available parts and drawings of the 'Bosch 0601345703 (GWS9-150C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

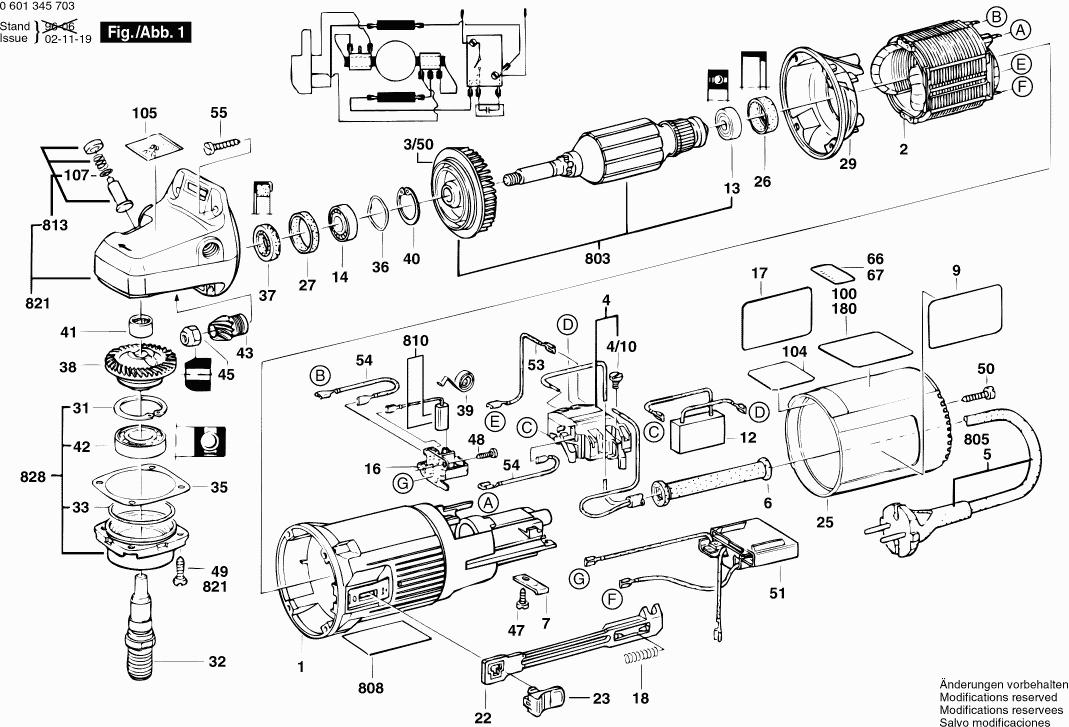

Technical drawing of model Bosch 0601345703 (GWS9-150C)
Spare parts list of model Bosch 0601345703 (GWS9-150C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 16051082CC | 12.82 | 15.51 | |
| Field | ||||
| 2 | 1604220220 | 39.14 | 47.36 | |
| Fan | ||||
| 3/50 | 1606610121 | 1.49 | 1.80 | |
| On-Off Switch | ||||
| 4 | 1607200086 | 10.90 | 13.19 | |
| Pan head screw | ||||
| 4/10 | 2910110048 | 1.00 | 1.21 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 9 | 1601110610 | |||
| No longer available, no replacement | ||||
| 12 | 1607328029 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1600905011 | 5.81 | 7.03 | |
| Brush Holder | ||||
| 16 | 1600A003G4 | 3.44 | 4.16 | |
| No information available, not orderable | ||||
| 17 | 1601110611 | |||
| Adjusting Slide | ||||
| 22 | 1602319002 | 2.40 | 2.90 | |
| Switch Handle | ||||
| 23 | 1602026057 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 25 | 1600508010 | 7.46 | 9.03 | |
| Rubber Bushing | ||||
| 26 | 1600502020 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1601328005 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 31 | 2916660013 | 2.08 | 2.52 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 7.46 | 9.03 | |
| O-Ring | ||||
| 33 | 3600210124 | 2.86 | 3.46 | |
| Shim | ||||
| 35 | 1600136010 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136011 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 1600136012 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 36 | 1600150011 | 1.00 | 1.21 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Crown Gear | ||||
| 38 | 1606333235 | 67.98 | 82.26 | |
| Spiral Spring | ||||
| 39 | 1604652013 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 40 | 2916660009 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 41 | 1600910018 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 42 | 1600905006 | 11.37 | 13.76 | |
| Bevel Gear | ||||
| 43 | 1606333234 | 37.50 | 45.38 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 47 | 2910211018 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 48 | 2910211005 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435026 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 50 | 2910211021 | 1.49 | 1.80 | |
| Speed governor | ||||
| 51 | 1607233008 | 26.62 | 32.21 | |
| Connecting Cable | ||||
| 53 | 1604448005 | 2.86 | 3.46 | |
| Connecting Cable | ||||
| 54 | 1604448006 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 55 | 2912401021 | |||
| No information available, not orderable | ||||
| 100 | 1601110310 | |||
| Reference Plate | ||||
| 105 | 1601110470 | 1.00 | 1.21 | |
| O-Ring | ||||
| 107 | 1600210044 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 650/10 | 1600A025XP | 9.67 | 11.70 | |
| Round Nut | ||||
| 650/20 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 650/30 | 1607950052 | 3.44 | 4.16 | |
| Clamping Flange | ||||
| 650/50 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/50/20 | 1600210039 | 2.08 | 2.52 | |
| Offset Screwdriver | ||||
| 650/60 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 650/60 | 2610364015 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 652 | 2605510127 | |||
| Hex Socket Head Cap Screw | ||||
| 652/20 | 2910141197 | 1.44 | 1.74 | |
| No longer available, no replacement | ||||
| 803 | 1604010248 | |||
| Power supply cord | ||||
| 805 | 1607000227 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014116 | 10.90 | 13.19 | |
| Push-Button | ||||
| 813 | 1607000253 | 2.08 | 2.52 | |
| Gear Housing | ||||
| 821 | 1605806480 | 52.45 | 63.46 | |
| Bearing Flange | ||||
| 828 | 1607000936 | 27.81 | 33.65 | |
| Fast Locking Flange | ||||
| 896 | 1600A016PP | 41.30 | 49.97 | |
