Here you will find all available parts and drawings of the 'Bosch 0601343003 ( GWS9-125CS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

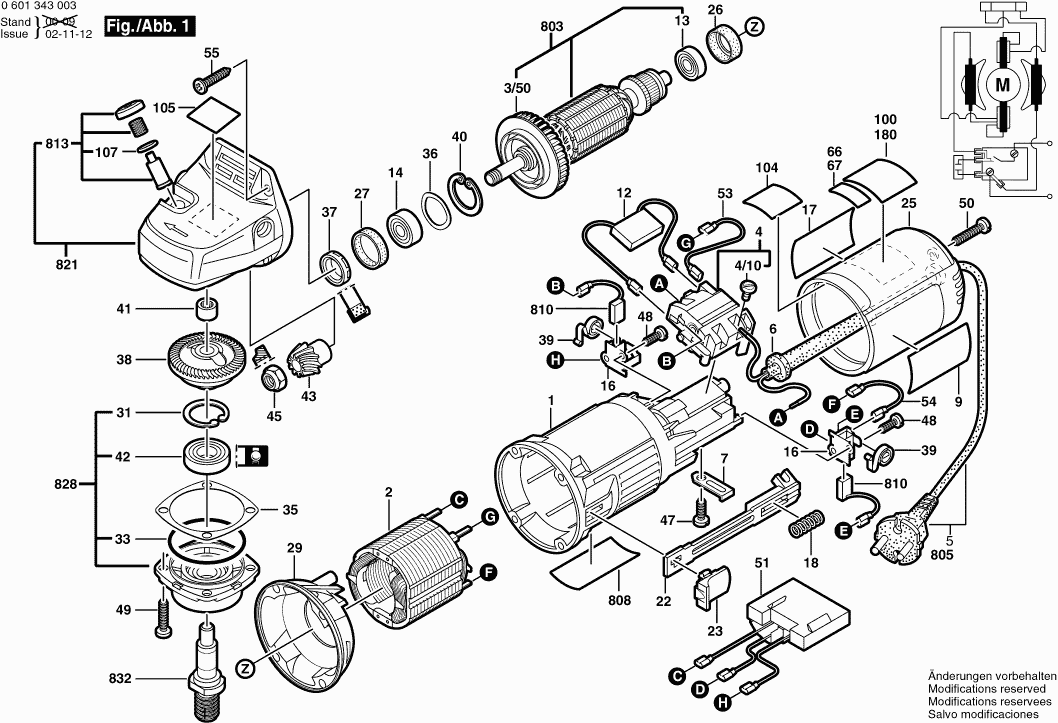

Technical drawing of model Bosch 0601343003 ( GWS9-125CS )

Spare parts list of model Bosch 0601343003 ( GWS9-125CS )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 16051082CC 10.73 12.98
Field 220-230V
2 1604220220 33.45 40.47
Fan
3/50 1606610121 1.18 1.43
On-Off Switch
4 1607200086 8.45 10.22
Pan head screw DIN 85-AM3x6-CUZN
4/10 2910110048 0.83 1.00
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate
9 1601110607 0.83 1.00
No longer available, no replacement
12 1607328029
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
Ball Bearing 7x22x7
14 1900905018 13.93 16.86
Brush Holder
16 1600A003G4 2.71 3.28
Manufacturer's nameplate
17 1601110608 0.83 1.00
Compression Spring
18 1604611026 0.83 1.00
Adjusting Slide
22 1602319002 1.94 2.35
Ratchet Cap
23 F016F05700 1.00 1.21
Housing Cover BLACK
25 1600508006 4.70 5.69
Rubber Bushing
26 1600502020 1.94 2.35
Rubber Ring
27 1600206025 1.70 2.06
Air-Deflector Ring
29 1601328005 1.94 2.35
Retaining clip DIN 472-32x1,2 MM
31 2916660013 1.70 2.06
O-Ring 46,0x1,1 MM RED
33 3600210124 2.24 2.71
Shim 0,2 MM THICK
35 1600136010 1.94 2.35
Shim 0,3 MM THICK
35 1600136011 1.70 2.06
Shim 0,1 MM THICK
35 1600136012 0.83 1.00
Spring Washer
36 1600150011 0.83 1.00
Rotary shaft lip seal
37 1600290016 1.94 2.35
Crown Gear Z=36
38 1606333601 5.83 7.05
Spiral Spring
39 1604652013 1.18 1.43
Spring retaining ring DIN 472-25x1,2MM
40 2916660009 1.70 2.06
Needle bearing Ø8xØ12x8 MM
41 1600910018 4.10 4.96
groove ball bearing 12x32x10
42 1600905006 9.53 11.53
Bevel Gear Z=11
43 1606333242 44.82 54.23
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Tapping Screw DIN 7971-ST3,9x13-F
47 2910211018 0.83 1.00
Tapping Screw DIN 7971-ST2,9x9,5-F
48 2910211005 0.83 1.00
Thread-forming tap. Screw
49 1603435026 1.70 2.06
Tapping Screw DIN 7971-ST3,9x22-F
50 2910211021 1.18 1.43
Speed governor 230V
51 1607233013 81.47 98.58
Connecting Cable L=95 MM WHITE
53 1604448005 2.24 2.71
Connecting Cable L=40 MM WHITE
54 1604448006 1.94 2.35
Tapping Screw DIN7981-ST3,9x22-C-Z
55 2912401021 0.83 1.00
Reference Plate
100 1601110378 1.70 2.06
Reference Plate
105 1601110470 0.83 1.00
O-Ring 4,5x1,0 MM BLUE
107 1600210044 0.83 1.00
Round Nut M14
650/20 1603345043 6.54 7.91
Pin-Type Face-Wrench
650/30 1607950052 2.71 3.28
Clamping Flange Ø22,3xØ42 MM
650/50 2605703014 4.10 4.96
O-Ring 20,35x1,78 MM
650/50/20 1600210039 1.70 2.06
Protective Cover
651/10 1600A025XP 7.58 9.17
Auxiliary Handle M10
651/10 1602025027 5.33 6.45
Protective Cover
652 1600A0136N 20.42 24.71
Hex Socket Head Cap Screw DIN 912-M6x16-8.8
652/20 2910141197 0.83 1.00
Armature With Fan 220-230V
803 1604010248 36.85 44.59
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 1607014116 8.45 10.22
Push-Button BLACK
813 1607000253 1.70 2.06
Gear Housing
821 1605806480 44.82 54.23
Bearing Flange
828 1607000936 23.75 28.74
Grinding Spindle
832 1607000D6A 5.83 7.05
