Here you will find all available parts and drawings of the 'Bosch 0601377563 ( GWS850C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

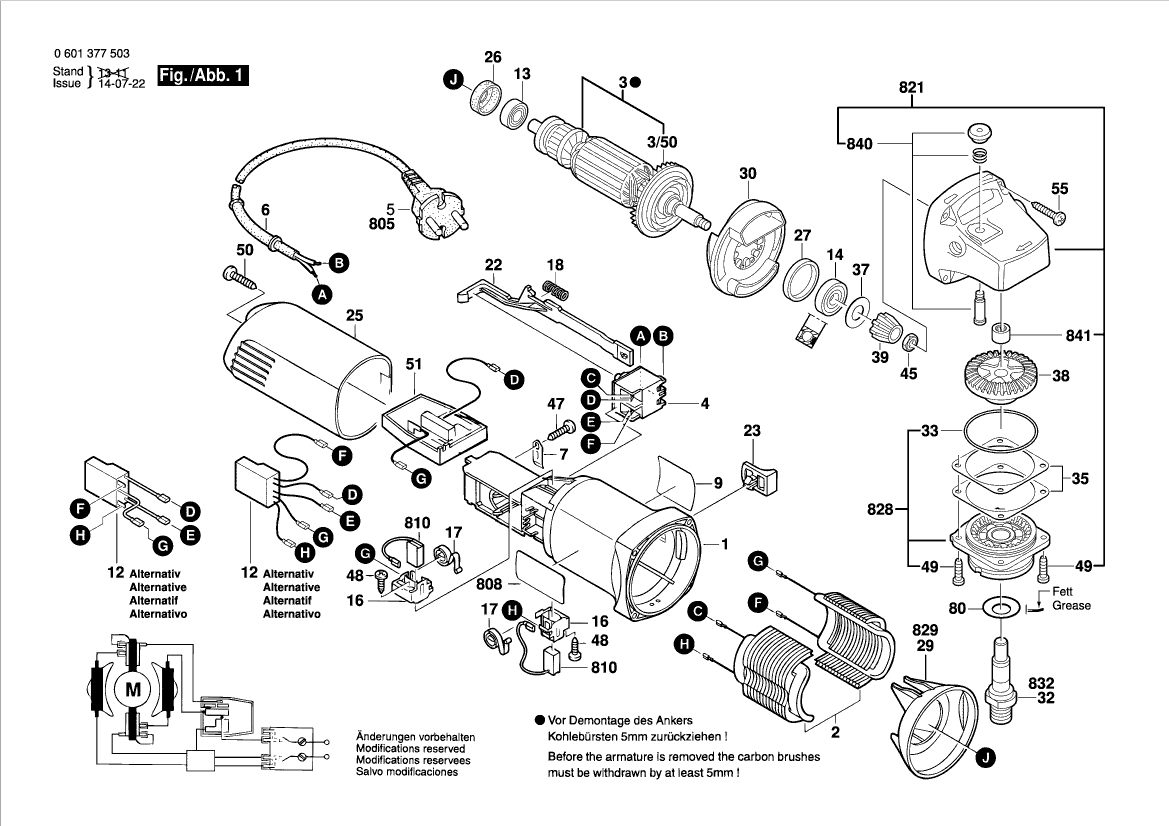

Technical drawing of model Bosch 0601377563 ( GWS850C )
Spare parts list of model Bosch 0601377563 ( GWS850C )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P09772 | 10.73 | 12.98 | |
| Field 230V | ||||
| 2 | 1604220506 | 18.71 | 22.64 | |
| Armature 230V | ||||
| 3 | 1604010B04 | 40.61 | 49.14 | |
| Fan | ||||
| 3/50 | 1606610141 | 3.31 | 4.01 | |
| On-Off Switch | ||||
| 4 | 1607200179 | 6.54 | 7.91 | |
| Power supply cord USA/CDN 2,15m 2 x 0,82mm SJ 18/ | ||||
| 5 | 2604460122 | 13.93 | 16.86 | |
| Grommet Ø7,6-Ø8,2x95 MM | ||||
| 6 | 2600703013 | 1.94 | 2.35 | |
| Fastening Clamp | ||||
| 7 | 1619P00499 | 0.83 | 1.00 | |
| Manufacturer's nameplate GWS 850 C | ||||
| 9 | 1611110F56 | 2.71 | 3.28 | |
| Suppression Filter | ||||
| 12 | 2609120008 | 11.88 | 14.37 | |
| groove ball bearing | ||||
| 13 | 1619P08829 | 5.33 | 6.45 | |
| Ball Bearing 7x19x6 | ||||
| 13 | 2600905032 | 4.10 | 4.96 | |
| groove ball bearing | ||||
| 14 | 1619P11240 | 2.24 | 2.71 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.24 | 2.71 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 18 | 1604611031 | 2.24 | 2.71 | |
| Adjusting Slide | ||||
| 22 | 1602319009 | 1.94 | 2.35 | |
| Switch Handle BLACK | ||||
| 23 | 1602026068 | 1.94 | 2.35 | |
| Housing Cover BLUE | ||||
| 25 | 1605500194 | 4.10 | 4.96 | |
| Intermediate Ring | ||||
| 26 | 1600502023 | 1.70 | 2.06 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 1600591023 | 1.94 | 2.35 | |
| Air-Deflector Ring | ||||
| 30 | 1600591024 | 2.71 | 3.28 | |
| O-Ring 42,0x1,1 MM | ||||
| 33 | 1600210041 | 1.94 | 2.35 | |
| Shim 0,1 MM THICK | ||||
| 35 | 1600136016 | 1.94 | 2.35 | |
| Shim 0,2 MM THICK | ||||
| 35 | 1600136017 | 1.94 | 2.35 | |
| Cover Disc | ||||
| 37 | 1600100033 | 1.94 | 2.35 | |
| Conversion Gear | ||||
| 38 | 2609110150 | 5.33 | 6.45 | |
| Pinion | ||||
| 39 | 2609110149 | 3.31 | 4.01 | |
| Hex Nut DIN 934-M6-8-A | ||||
| 45 | 2915011007 | 0.83 | 1.00 | |
| Special Screw | ||||
| 47 | 2609110052 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 3x10 | ||||
| 48 | 1619P00220 | 0.83 | 1.00 | |
| Thread-forming tap. Screw DIN 7500, M4x10, SR10.2 | ||||
| 49 | 1603435068 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 50 | 2910611020 | 1.18 | 1.43 | |
| Regulator 220-240V | ||||
| 51 | 1607233139 | 36.85 | 44.59 | |
| Tapping Screw DIN 7981-ST3,9x25-C-H | ||||
| 55 | 2910611022 | 0.83 | 1.00 | |
| Cover Disc | ||||
| 80 | 1619P09390 | 1.70 | 2.06 | |
| No information available, not orderable | ||||
| 210 | 2609130146 | |||
| Protective Cover | ||||
| 650/10 | 1600A025XP | 7.58 | 9.17 | |
| Round Nut M14 | ||||
| 650/20 | 1603345043 | 6.54 | 7.91 | |
| Pin-Type Face-Wrench | ||||
| 650/30 | 1607950052 | 2.71 | 3.28 | |
| Clamping Flange Ø22,3xØ42 MM | ||||
| 650/50 | 2605703014 | 4.10 | 4.96 | |
| O-Ring 20,35x1,78 MM | ||||
| 650/50/20 | 1600210039 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 651 | 1605510249 | |||
| Nameplate | ||||
| 808 | 160111A3H3 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 1607014144 | 7.58 | 9.17 | |
| Gear Housing | ||||
| 821 | 1605806466 | 12.41 | 15.02 | |
| Bearing Flange BLACK | ||||
| 828 | 1605805090 | 12.41 | 15.02 | |
| Air-Deflector Ring | ||||
| 829 | 1600591023 | 1.94 | 2.35 | |
| Grinding Spindle | ||||
| 832 | 1607000D6A | 5.83 | 7.05 | |
| Push-Button BLACK | ||||
| 840 | 1607000298 | 3.31 | 4.01 | |
| Needle bearing Ø8xØ12x8 MM | ||||
| 841 | 1600910018 | 4.10 | 4.96 | |
