Here you will find all available parts and drawings of the 'Bosch 06013777AE ( GWS850C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

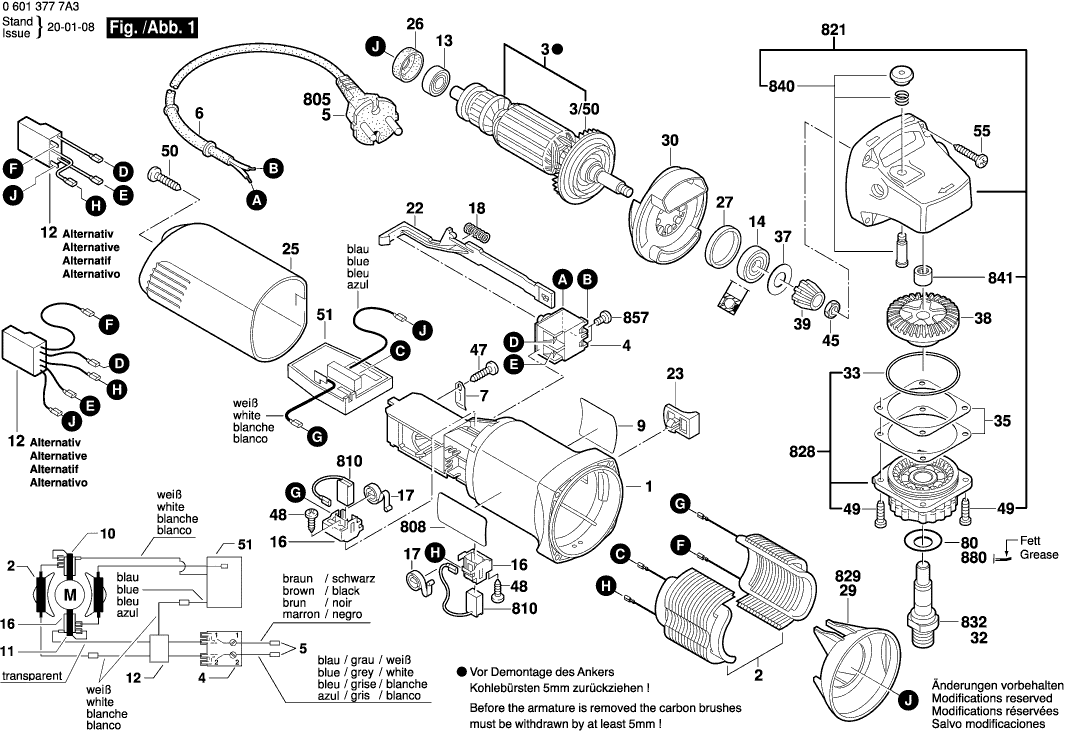

Technical drawing of model Bosch 06013777AE ( GWS850C )
Spare parts list of model Bosch 06013777AE ( GWS850C )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P09772 | 12.82 | 15.51 | |
| Field | ||||
| 2 | 1604220506 | 20.39 | 24.67 | |
| Armature With Fan | ||||
| 3 | 1604010667 | 30.08 | 36.40 | |
| Fan | ||||
| 3/50 | 1606610141 | 4.18 | 5.06 | |
| Switch | ||||
| 4 | 160720031V | 8.48 | 10.26 | |
| Power supply cord | ||||
| 5 | 1604460312 | 8.48 | 10.26 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110F56 | 3.04 | 3.68 | |
| Suppression Filter | ||||
| 12 | 2609120008 | 13.13 | 15.89 | |
| groove ball bearing | ||||
| 13 | 1619P08829 | 6.73 | 8.14 | |
| Groove ball bearing | ||||
| 13 | 1619P11239 | 3.04 | 3.68 | |
| groove ball bearing | ||||
| 14 | 1619P11240 | 2.86 | 3.46 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 18 | 1604611031 | 2.52 | 3.05 | |
| Adjusting Slide | ||||
| 22 | 1602319009 | 2.86 | 3.46 | |
| Switch Button | ||||
| 23 | 1619P02762 | 2.40 | 2.90 | |
| Housing Cover | ||||
| 25 | 1605500194 | 4.58 | 5.54 | |
| Intermediate Ring | ||||
| 26 | 1600502023 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 30 | 1600591024 | 3.44 | 4.16 | |
| O-Ring | ||||
| 33 | 1600210041 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136016 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136017 | 2.40 | 2.90 | |
| Cover Disc | ||||
| 37 | 1600100033 | 2.40 | 2.90 | |
| Conversion Gear | ||||
| 38 | 2609110150 | 6.73 | 8.14 | |
| Pinion | ||||
| 39 | 2609110149 | 4.18 | 5.06 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Special Screw | ||||
| 47 | 2609110052 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P00220 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435068 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 50 | 2910611020 | 1.49 | 1.80 | |
| Speed governor 230V | ||||
| 51 | 16072335C0 | 41.30 | 49.97 | |
| No longer available, no replacement | ||||
| 55 | 2910611022 | |||
| Hex Screw Driver | ||||
| 131 | 1619P01598 | 2.40 | 2.90 | |
| Key Holder | ||||
| 132 | 3602311050 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 650/10 | 1600A025XP | 8.48 | 10.26 | |
| Round Nut | ||||
| 650/20 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 650/30 | 1619P08927 | 4.18 | 5.06 | |
| Clamping Flange | ||||
| 650/50 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/50/20 | 1600210039 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 651 | 1600A00XU7 | 8.35 | 10.10 | |
| Nameplate | ||||
| 808 | 1619P31703 | 2.18 | 2.64 | |
| Carbon-Brush Set | ||||
| 810 | 1619P07571 | 8.48 | 10.26 | |
| Gear Housing | ||||
| 821 | 1605806466 | 13.90 | 16.82 | |
| Bearing Flange | ||||
| 828 | 1619P02708 | 9.67 | 11.70 | |
| Air-Deflector Ring | ||||
| 829 | 1600591023 | 2.40 | 2.90 | |
| Grinding Spindle | ||||
| 832 | 1619P06419 | 10.90 | 13.19 | |
| Push-Button | ||||
| 840 | 1607000298 | 4.18 | 5.06 | |
| Plain bearing | ||||
| 841 | 1600200029 | 3.71 | 4.49 | |
| Oval-Head Screw | ||||
| 857 | 2910641081 | 1.00 | 1.21 | |
| Cover Disc | ||||
| 880 | 1619P09390 | 2.08 | 2.52 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
