Here you will find all available parts and drawings of the 'Bosch 3601C940E1 (GWS7-115)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

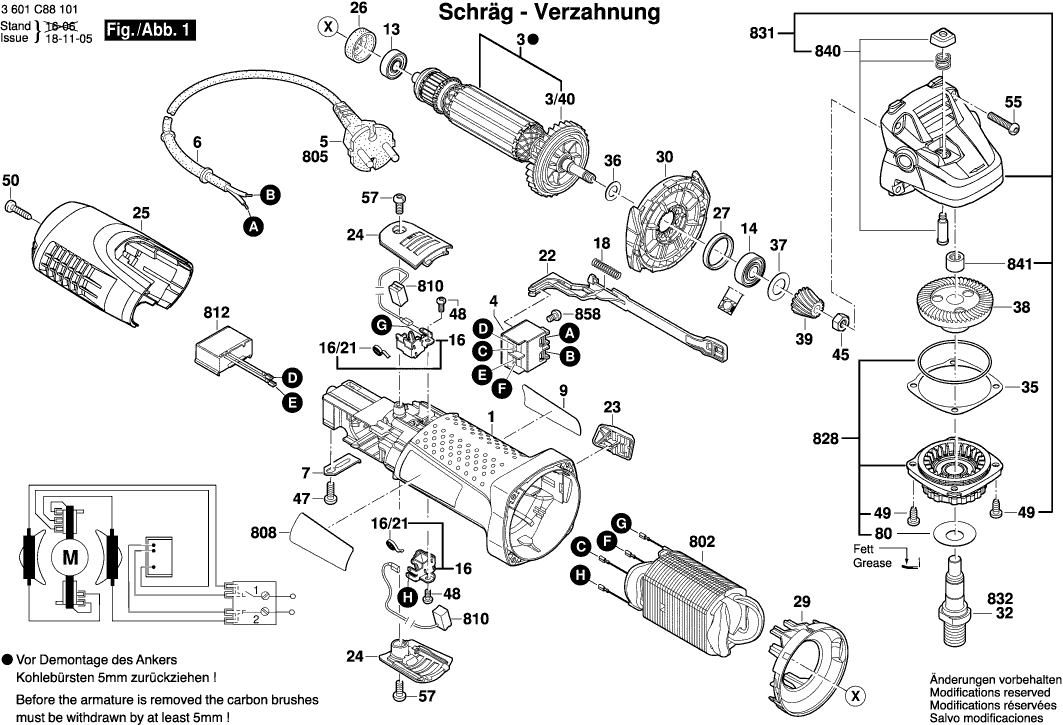

Technical drawing of model Bosch 3601C940E1 (GWS7-115)
Spare parts list of model Bosch 3601C940E1 (GWS7-115)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P10958 | 4.94 | 5.98 | |
| Field | ||||
| 2 | 160422059E | 16.79 | 20.32 | |
| Armature | ||||
| 3 | 1619P21035 | 22.88 | 27.68 | |
| Switch | ||||
| 4 | 160720031V | 9.67 | 11.70 | |
| Power supply cord BR 2,65m 2 x 0,75mm H05 VV-F | ||||
| 5 | 1619P01962 | 10.68 | 12.92 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 13 | 1619P14660 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 1619P13103 | 2.86 | 3.46 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 18 | 1619P11487 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 22 | 1619P10967 | 1.00 | 1.21 | |
| Switch Button | ||||
| 23 | 1619P10969 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 25 | 1619P10963 | 3.44 | 4.16 | |
| Intermediate Ring | ||||
| 26 | 1600502023 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Ball Bearing | ||||
| 28/1 | 1619P07440 | 6.73 | 8.14 | |
| Retaining clip | ||||
| 28/3 | 2916660013 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1619P10970 | 1.00 | 1.21 | |
| Air Distributor | ||||
| 30 | 1619P14139 | 1.49 | 1.80 | |
| Grinding Spindle | ||||
| 32 | 1619P06419 | 10.90 | 13.19 | |
| O-Ring | ||||
| 33 | 1619P02820 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1619P02822 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1619P02821 | 1.00 | 1.21 | |
| Washer | ||||
| 36 | 1619P00987 | 1.00 | 1.21 | |
| Cover Disc | ||||
| 37 | 1600100033 | 2.40 | 2.90 | |
| Crown Gear | ||||
| 38 | 1619P02823 | 8.35 | 10.10 | |
| Bevel Gear | ||||
| 39 | 1619P02825 | 4.94 | 5.98 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Special Screw | ||||
| 47 | 2609110052 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P00220 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435068 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 50 | 1619P00105 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 55 | 1619P01066 | 1.00 | 1.21 | |
| Cover Disc | ||||
| 80 | 1619P09390 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 650/1 | 1600A025XP | 9.67 | 11.70 | |
| Round Nut | ||||
| 650/2 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 650/3 | 1619P08927 | 4.18 | 5.06 | |
| Clamping Flange | ||||
| 650/5 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/5/2 | 1600210039 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 651 | 1600A00XU6 | 10.90 | 13.19 | |
| Carbon-Brush Set | ||||
| 810 | 1619P11715 | 5.81 | 7.03 | |
| Bearing Flange | ||||
| 828 | 1619P07451 | 13.90 | 16.82 | |
| Gear Housing | ||||
| 831 | 1619P12186 | 13.13 | 15.89 | |
| Push Button | ||||
| 840 | 1619P12188 | 1.49 | 1.80 | |
| Plain bearing | ||||
| 841 | 1600200029 | 3.71 | 4.49 | |
| Oval-Head Screw | ||||
| 858 | 2910641081 | 1.00 | 1.21 | |
| Grease Tube | ||||
| 894 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
