Here you will find all available parts and drawings of the 'Bosch 3601C88101 ( GWS7-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

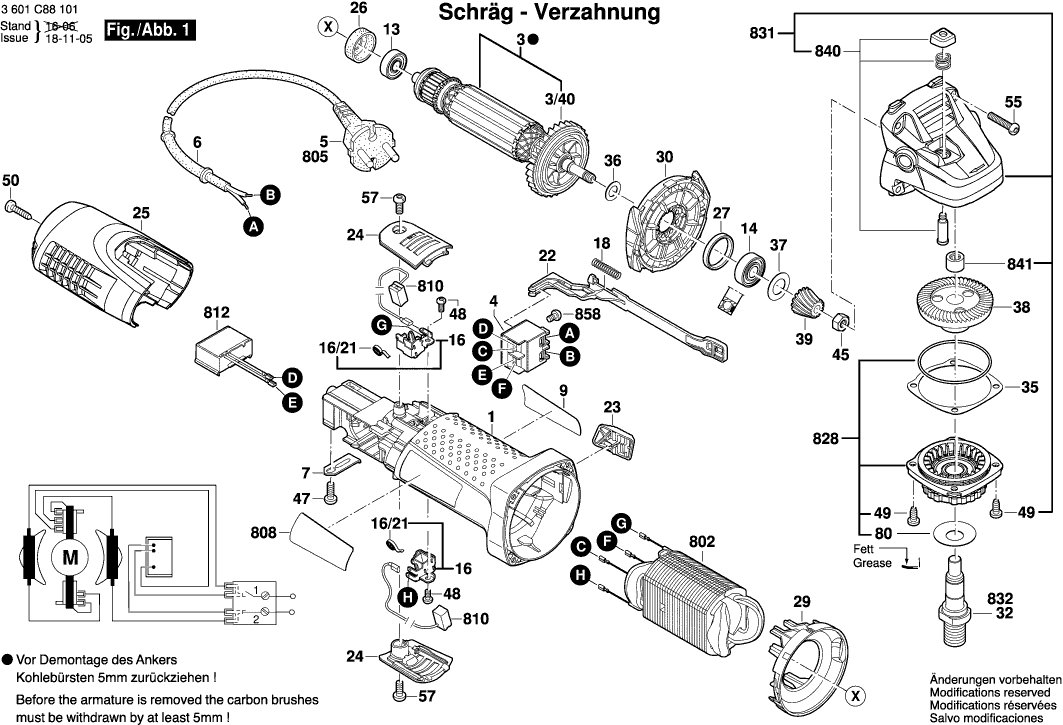

Technical drawing of model Bosch 3601C88101 ( GWS7-115 )

Spare parts list of model Bosch 3601C88101 ( GWS7-115 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 1619P09415 6.54 7.91
Armature
3 1604010BK7 20.42 24.71
Fan
3/40 1619P02801 1.18 1.43
On-Off Switch
4 1607200179 6.54 7.91
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate GWS 7-115
9 1619P02874 1.94 2.35
Ball Bearing 7x19x6 MM
13 1619P00456 2.24 2.71
Ball Bearing
14 1619P00455 2.71 3.28
Brush Holder
16 1619P02845 2.24 2.71
Spiral Spring
16/21 1619P02809 0.83 1.00
Compression Spring
18 1604611031 2.24 2.71
Adjusting Slide
22 1619P02811 1.18 1.43
Switch Button
23 1619P10838 1.18 1.43
Brush-Cover
24 1619P02828 1.18 1.43
Housing Cover
25 1619P02843 3.31 4.01
Intermediate Ring
26 1600502023 1.70 2.06
Rubber Ring
27 1600206025 1.70 2.06
Air-Deflector Ring
29 1619P02818 1.18 1.43
Air Distributor
30 1619P02819 0.83 1.00
O-Ring 44,0x1,0 MM
33 1619P02820 1.18 1.43
Shim 0,2 MM
35 1619P02822 1.18 1.43
Shim 0,1 MM
35 1619P02821 0.83 1.00
Washer
36 1619P00987 0.83 1.00
Cover Disc
37 1600100033 1.94 2.35
Crown Gear
38 1619P02823 6.54 7.91
Bevel Gear
39 1619P02825 4.10 4.96
Hex Nut DIN 934-M6-8-A
45 2915011007 0.83 1.00
Special Screw
47 2609110052 0.83 1.00
Torx Oval-Head Screw 3x8
48 1619P02849 0.83 1.00
Thread-forming tap. Screw DIN 7500, M4x10, SR10.2
49 1603435068 1.18 1.43
Torx Oval-Head Screw 4x20
50 1619P00105 1.18 1.43
Torx Oval-Head Screw 4x25
55 1619P01066 0.83 1.00
Torx Oval-Head Screw 4x12
57 1619P02848 1.18 1.43
Cover Disc
80 1619P09390 1.70 2.06
Protective Cover
650/10 1600A025XP 7.58 9.17
Round Nut M14
650/20 1603345043 6.54 7.91
Pin-Type Face-Wrench
650/30 1619P08927 3.31 4.01
Clamping Flange Ø22,3xØ42 MM
650/50 2605703014 4.10 4.96
O-Ring 20,35x1,78 MM
650/50/20 1600210039 1.70 2.06
Protective Cover Ø115 MM SILVER
651 1600A00XU6 8.45 10.22
Field 220-230V
802 1619P07239 15.71 19.01
Power supply cord EU 2,6m 2 x 1,0 mm
805 1607000385 11.88 14.37
Nameplate
808 1619P02967 1.84 2.23
Nameplate
808 1619P30275 1.18 1.43
Carbon-Brush Set 10 x 1 619 P02 870
810 1607000489 49.56 59.97
Carbon-Brush Set
810 1619P02870 6.54 7.91
Suppression Capacitor
812 1619P07240 5.02 6.07
Suppression Filter
812 1619P15039 1.94 2.35
Switch Button
823 1619P10838 1.18 1.43
Bearing Flange
828 1619P07452 7.58 9.17
Gear Housing
831 1619P02872 12.41 15.02
Grinding Spindle
832 1607000D6A 5.83 7.05
Push-Button
840 1619P02873 1.70 2.06
Needle bearing Ø8xØ12x8 MM
841 1600910018 4.10 4.96
Oval-Head Screw DIN7985-M3,5x5-4.8-H
858 2910641081 0.83 1.00
Grease Tube 225 ML
894 1615430020 15.71 19.01
Grease Tube 225 ML
895 1605430003 29.75 36.00
