Here you will find all available parts and drawings of the 'Bosch 06013751V6 (GWS600)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

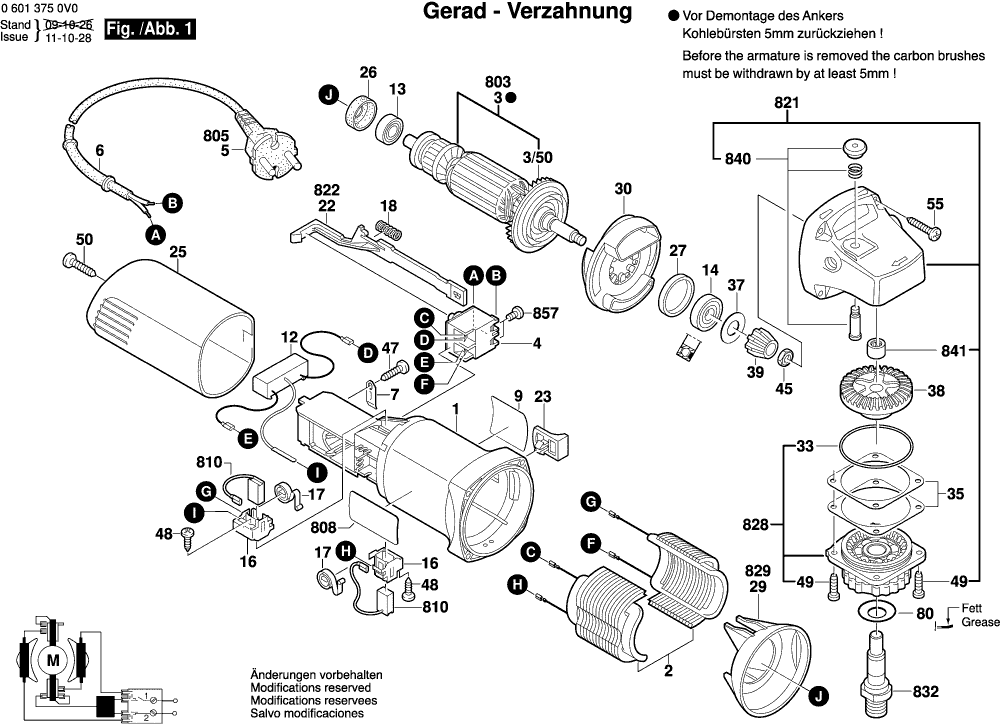

Technical drawing of model Bosch 06013751V6 (GWS600)
Spare parts list of model Bosch 06013751V6 (GWS600)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P09772 | 12.82 | 15.51 | |
| No information available, not orderable | ||||
| 2 | 1604220457 | |||
| Armature | ||||
| 3 | 1604010626 | 31.42 | 38.02 | |
| No information available, not orderable | ||||
| 3/50 | 1618B00700 | |||
| Switch | ||||
| 4 | 1607200146 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 9 | 160111C01H | |||
| Suppression Filter | ||||
| 12 | 1619P07647 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 13 | 2600905103 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 14 | 1619P11240 | 2.86 | 3.46 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 18 | 1604611031 | 2.52 | 3.05 | |
| Adjusting Slide | ||||
| 22 | 1602319009 | 2.86 | 3.46 | |
| Switch Button | ||||
| 23 | 1619P02762 | 2.40 | 2.90 | |
| Housing Cover | ||||
| 25 | 1605500194 | 4.94 | 5.98 | |
| Intermediate Ring | ||||
| 26 | 1600502024 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591023 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 30 | 1618B00704 | |||
| O-Ring | ||||
| 33 | 1600210041 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136016 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136017 | 2.40 | 2.90 | |
| Cover Disc | ||||
| 37 | 1600100033 | 2.40 | 2.90 | |
| Conversion Gear | ||||
| 38 | 2609110150 | 6.73 | 8.14 | |
| Pinion | ||||
| 39 | 2609110149 | 4.18 | 5.06 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Special Screw | ||||
| 47 | 2609110052 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P00220 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435068 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 50 | 2910611020 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 55 | 1603435078 | |||
| Cover Disc | ||||
| 80 | 1619P09390 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 650/10 | 1600A025XP | 9.67 | 11.70 | |
| Round Nut | ||||
| 650/20 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 650/30 | 1619P08927 | 4.18 | 5.06 | |
| Clamping Flange | ||||
| 650/50 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/50/20 | 1600210039 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 651 | 1619P02839 | 10.90 | 13.19 | |
| Armature | ||||
| 803 | 1604010626 | 31.42 | 38.02 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| No information available, not orderable | ||||
| 808 | 160111A3PL | |||
| Carbon-Brush Set | ||||
| 810 | 1607014145 | 9.67 | 11.70 | |
| Gear Housing | ||||
| 821 | 1619P01814 | 18.94 | 22.92 | |
| Adjusting Slide | ||||
| 822 | 1602319009 | 2.86 | 3.46 | |
| Bearing Flange | ||||
| 828 | 1619P02708 | 9.67 | 11.70 | |
| Air-Deflector Ring | ||||
| 829 | 1600591023 | 2.40 | 2.90 | |
| Grinding Spindle | ||||
| 832 | 1607000D6A | 7.46 | 9.03 | |
| Hex Screw Driver | ||||
| 833 | 1619P01598 | 2.40 | 2.90 | |
| Key Holder | ||||
| 834 | 3602311050 | 2.08 | 2.52 | |
| Push-Button | ||||
| 840 | 1607000298 | 4.18 | 5.06 | |
| Needle bearing | ||||
| 841 | 1600910018 | 4.94 | 5.98 | |
| Oval-Head Screw | ||||
| 857 | 2910641081 | 1.00 | 1.21 | |
| Grease Tube | ||||
| 895 | 1605430003 | 34.82 | 42.13 | |
| Grease Tube | ||||
| 895 | 1615430020 | 18.94 | 22.92 | |
| Grease Tube | ||||
| 896 | 1605430003 | 34.82 | 42.13 | |
| Grease Tube | ||||
| 896 | 1615430020 | 18.94 | 22.92 | |
| Clamping Flange | ||||
| 897 | 2605703014 | 7.53 | 9.11 | |
