Here you will find all available parts and drawings of the 'Bosch 06013750VJ ( GWS600 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

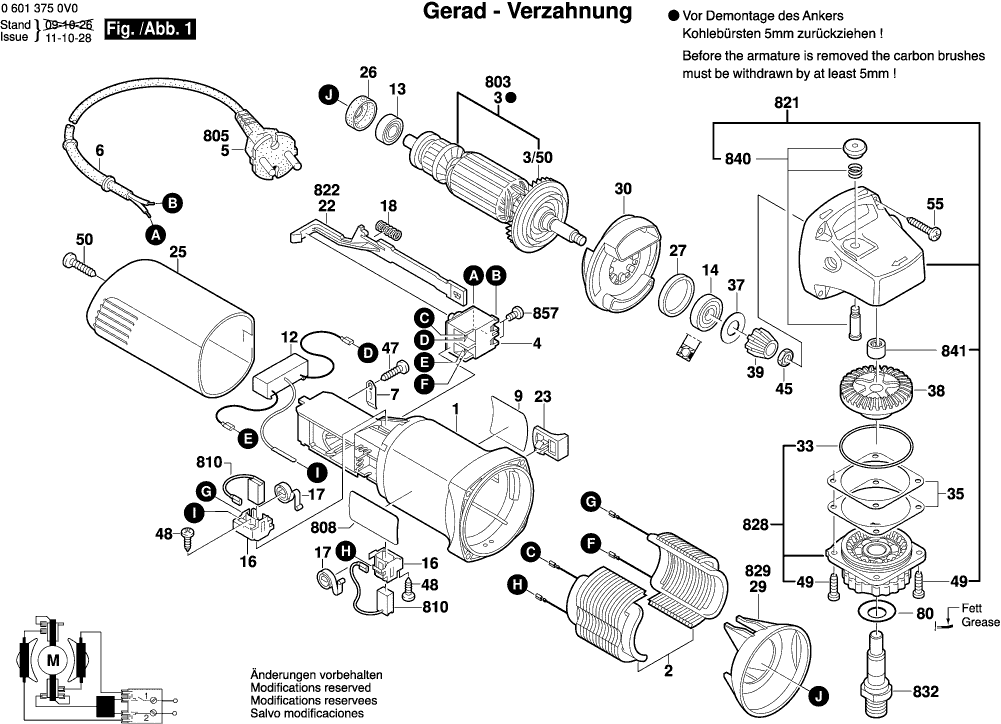

Technical drawing of model Bosch 06013750VJ ( GWS600 )

Spare parts list of model Bosch 06013750VJ ( GWS600 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 1619P09772 12.82 15.51
Field
2 1604220457 25.28 30.59
Armature
3 1604010626 31.42 38.02
Fan
3/50 1618B00700 2.00 2.42
Switch
4 1607200146 9.67 11.70
Grommet
6 2600703012 2.86 3.46
Fastening Clamp
7 1601302017 1.00 1.21
Manufacturer's nameplate
9 160111C01H 2.87 3.47
Suppression Filter
12 1619P07647 6.73 8.14
groove ball bearing
13 2600905103 5.81 7.03
groove ball bearing
14 1619P11240 2.86 3.46
Brush Holder
16 1619P01811 2.86 3.46
Spiral Spring
17 1604652013 1.49 1.80
Compression Spring
18 1604611031 2.52 3.05
Adjusting Slide
22 1602319009 2.86 3.46
Switch Button
23 1619P02762 2.40 2.90
Housing Cover
25 1605500194 4.94 5.98
Intermediate Ring
26 1600502024 2.08 2.52
Rubber Ring
27 1600206025 2.08 2.52
Air-Deflector Ring
29 1600591023 2.40 2.90
Air-Deflector Ring
30 1618B00704 2.00 2.42
O-Ring
33 1600210041 2.40 2.90
Shim
35 1600136016 2.40 2.90
Shim
35 1600136017 2.40 2.90
Cover Disc
37 1600100033 2.40 2.90
Conversion Gear
38 2609110150 6.73 8.14
Pinion
39 2609110149 4.18 5.06
Hex Nut
45 2915011007 1.00 1.21
Special Screw
47 2609110052 1.00 1.21
Torx Oval-Head Screw
48 1619P00220 1.00 1.21
Thread-forming tap. Screw
49 1603435068 1.49 1.80
Tapping Screw
50 2910611020 1.49 1.80
Torx Oval-Head Screw
55 1603435078 1.00 1.21
Cover Disc
80 1619P09390 2.08 2.52
Protective Cover
650/10 1600A025XP 9.67 11.70
Round Nut
650/20 1603345043 8.35 10.10
Pin-Type Face-Wrench
650/30 1619P08927 4.18 5.06
Clamping Flange
650/50 2605703014 7.53 9.11
O-Ring
650/50/20 1600210039 2.08 2.52
Protective Cover
651 1619P02839 10.90 13.19
Armature
803 1604010626 31.42 38.02
Power supply cord
805 1607000385 13.13 15.89
Nameplate
808 160111A3PH 1.94 2.35
Carbon-Brush Set
810 1607014144 8.48 10.26
Gear Housing
821 1619P01814 18.94 22.92
Adjusting Slide
822 1602319009 2.86 3.46
Bearing Flange
828 1619P02708 9.67 11.70
Air-Deflector Ring
829 1600591023 2.40 2.90
Grinding Spindle
832 1607000D6A 7.46 9.03
Hex Screw Driver
833 1619P01598 2.40 2.90
Key Holder
834 3602311050 2.08 2.52
Push-Button
840 1607000298 4.18 5.06
Needle bearing
841 1600910018 4.94 5.98
Oval-Head Screw
857 2910641081 1.00 1.21
Grease Tube
895 1605430003 34.82 42.13
Grease Tube
895 1615430020 18.94 22.92
Grease Tube
896 1605430003 34.82 42.13
Grease Tube
896 1615430020 18.94 22.92
