Here you will find all available parts and drawings of the 'Bosch 06013750VH ( GWS600 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

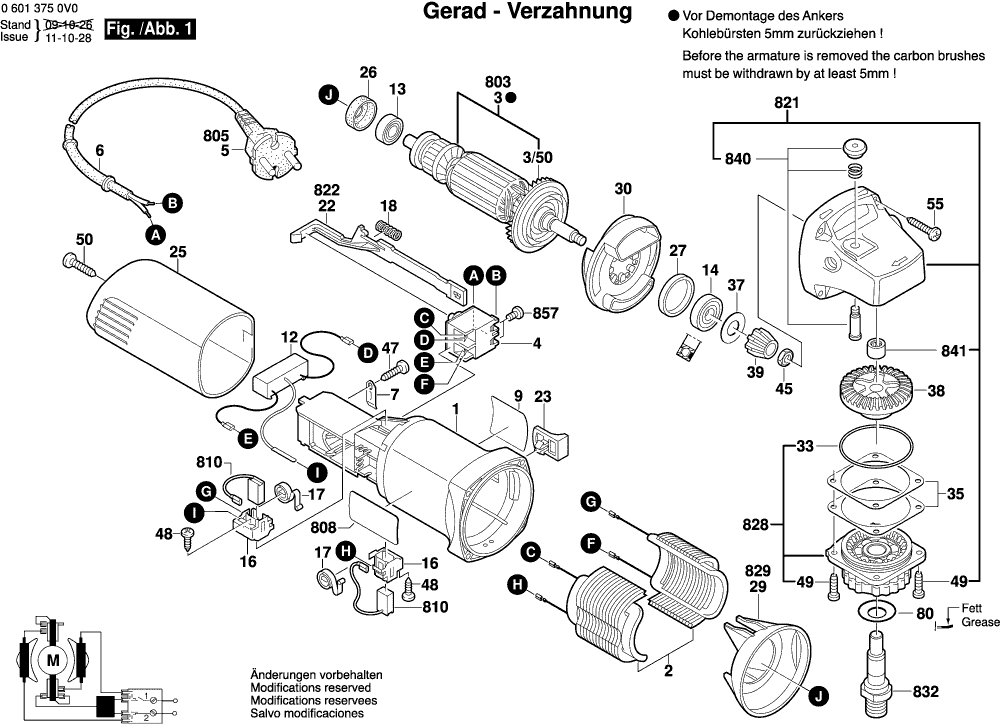

Technical drawing of model Bosch 06013750VH ( GWS600 )

Spare parts list of model Bosch 06013750VH ( GWS600 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 1619P09772 10.73 12.98
Field
2 1604220457 23.75 28.74
Armature 220-240V
3 1604010626 26.84 32.48
Fan
3/50 1618B00700 1.94 2.35
Switch
4 1607200146 7.58 9.17
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate GWS 600
9 160111C01H 2.71 3.28
Suppression Filter
12 1619P07647 5.33 6.45
groove ball bearing 7x19x6
13 2600905103 4.70 5.69
groove ball bearing
14 1619P11240 2.24 2.71
Brush Holder
16 1619P01811 2.24 2.71
Spiral Spring
17 1604652013 1.18 1.43
Compression Spring
18 1604611031 2.24 2.71
Adjusting Slide
22 1602319009 1.94 2.35
Switch Button BLACK
23 1619P02762 1.94 2.35
Housing Cover BLUE
25 1605500194 4.10 4.96
Intermediate Ring
26 1600502024 1.70 2.06
Rubber Ring
27 1600206025 1.70 2.06
Air-Deflector Ring
29 1600591023 1.94 2.35
Air-Deflector Ring
30 1618B00704 1.94 2.35
O-Ring 42,0x1,1 MM
33 1600210041 1.94 2.35
Shim 0,1 MM THICK
35 1600136016 1.94 2.35
Shim 0,2 MM THICK
35 1600136017 1.94 2.35
Cover Disc
37 1600100033 1.94 2.35
Conversion Gear
38 2609110150 5.33 6.45
Pinion
39 2609110149 3.31 4.01
Hex Nut DIN 934-M6-8-A
45 2915011007 0.83 1.00
Special Screw
47 2609110052 0.83 1.00
Torx Oval-Head Screw 3x10
48 1619P00220 0.83 1.00
Thread-forming tap. Screw DIN 7500, M4x10, SR10.2
49 1603435068 1.18 1.43
Tapping Screw DIN 7981-ST3,9x19-C-H
50 2910611020 1.18 1.43
Torx Oval-Head Screw
55 1603435078 0.83 1.00
Cover Disc
80 1619P09390 1.70 2.06
Protective Cover
650/10 1600A025XP 7.58 9.17
Round Nut M14
650/20 1603345043 6.54 7.91
Pin-Type Face-Wrench
650/30 1619P08927 3.31 4.01
Clamping Flange Ø22,3xØ42 MM
650/50 2605703014 4.10 4.96
O-Ring 20,35x1,78 MM
650/50/20 1600210039 1.70 2.06
Protective Cover Ø115 MM BLACK
651 1619P02839 8.45 10.22
Armature 220-240V
803 1604010626 26.84 32.48
Power supply cord EU 2,6m 2 x 1,0 mm
805 1607000385 11.88 14.37
Nameplate
808 160111A3PG 1.94 2.35
Carbon-Brush Set
810 1607014145 7.58 9.17
Gear Housing GREEN
821 1619P01814 15.71 19.01
Adjusting Slide
822 1602319009 1.94 2.35
Bearing Flange BLACK
828 1619P02708 7.58 9.17
Air-Deflector Ring
829 1600591023 1.94 2.35
Grinding Spindle
832 1607000D6A 5.83 7.05
Hex Screw Driver 4x95
833 1619P01598 1.94 2.35
Key Holder
834 3602311050 1.70 2.06
Push-Button BLACK
840 1607000298 3.31 4.01
Needle bearing Ø8xØ12x8 MM
841 1600910018 4.10 4.96
Oval-Head Screw DIN7985-M3,5x5-4.8-H
857 2910641081 0.83 1.00
Grease Tube 225 ML
895 1605430003 29.75 36.00
Grease Tube 225 ML
895 1615430020 15.71 19.01
Grease Tube 225 ML
896 1605430003 29.75 36.00
Grease Tube 225 ML
896 1615430020 15.71 19.01
Clamping Flange Ø22,3xØ42 MM
897 2605703014 4.10 4.96
