Here you will find all available parts and drawings of the 'Bosch 06013760A3 (GWS580)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

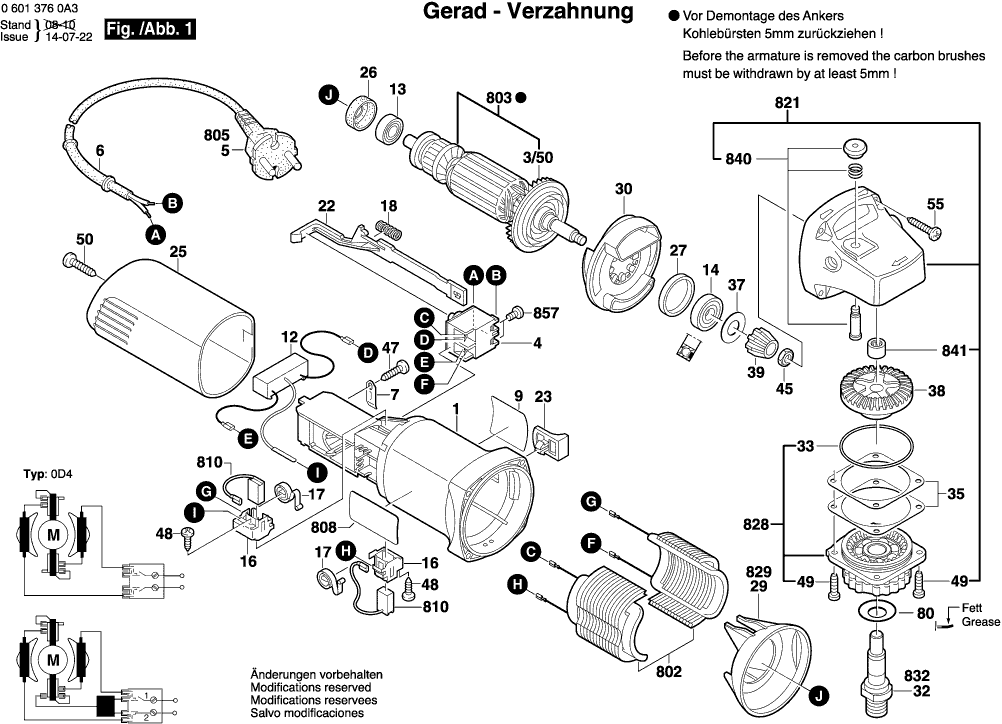

Technical drawing of model Bosch 06013760A3 (GWS580)
Spare parts list of model Bosch 06013760A3 (GWS580)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P09772 | 12.82 | 15.51 | |
| Fan | ||||
| 3/50 | 1606610141 | 4.18 | 5.06 | |
| Switch | ||||
| 4 | 1607200146 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 2609130614 | 2.87 | 3.47 | |
| Suppression Filter | ||||
| 12 | 1619P07647 | 6.73 | 8.14 | |
| Groove ball bearing | ||||
| 13 | 1619P11239 | 3.44 | 4.16 | |
| Ball Bearing | ||||
| 13 | 1619P00456 | 2.86 | 3.46 | |
| Ball Bearing | ||||
| 14 | 1619P00455 | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 14 | 1619P11240 | 2.86 | 3.46 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 18 | 1604611031 | 2.52 | 3.05 | |
| Adjusting Slide | ||||
| 22 | 1602319009 | 2.86 | 3.46 | |
| Switch Button | ||||
| 23 | 1619P02762 | 2.40 | 2.90 | |
| Housing Cover | ||||
| 25 | 1605500194 | 4.94 | 5.98 | |
| Intermediate Ring | ||||
| 26 | 1600502023 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 30 | 1600591024 | 3.44 | 4.16 | |
| O-Ring | ||||
| 33 | 1600210041 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136016 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136017 | 2.40 | 2.90 | |
| Cover Disc | ||||
| 37 | 1600100033 | 2.40 | 2.90 | |
| Conversion Gear | ||||
| 38 | 2609110150 | 6.73 | 8.14 | |
| Pinion | ||||
| 39 | 2609110149 | 4.18 | 5.06 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Special Screw | ||||
| 47 | 2609110052 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P00220 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435068 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 50 | 2910611020 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 55 | 2910611022 | |||
| Cover Disc | ||||
| 80 | 1619P09390 | 2.08 | 2.52 | |
| Hex Screw Driver | ||||
| 131 | 1619P01598 | 2.40 | 2.90 | |
| Key Holder | ||||
| 132 | 3602311050 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 650/10 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 650/10 | 160202509T | 3.44 | 4.16 | |
| Round Nut | ||||
| 650/20 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 650/30 | 1619P08927 | 4.18 | 5.06 | |
| Clamping Flange | ||||
| 650/50 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/50/20 | 1600210039 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 651 | 1619P02839 | 10.90 | 13.19 | |
| Field | ||||
| 802 | 2609120100 | 17.60 | 21.30 | |
| Armature | ||||
| 803 | 2609120101 | 26.62 | 32.21 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 1619P06767 | 0.83 | 1.00 | |
| Carbon-Brush Set | ||||
| 810 | 1607014145 | 9.67 | 11.70 | |
| Gear Housing | ||||
| 821 | 1605806466 | 14.94 | 18.08 | |
| Bearing Flange | ||||
| 828 | 1619P02708 | 9.67 | 11.70 | |
| Air-Deflector Ring | ||||
| 829 | 1600591023 | 2.40 | 2.90 | |
| Grinding Spindle | ||||
| 832 | 1607000D6A | 7.46 | 9.03 | |
| Push-Button | ||||
| 840 | 1607000298 | 4.18 | 5.06 | |
| Needle bearing | ||||
| 841 | 1600910018 | 4.94 | 5.98 | |
| Oval-Head Screw | ||||
| 857 | 2910641081 | 1.00 | 1.21 | |
