Here you will find all available parts and drawings of the 'Bosch 3601HC6300 ( GWS27-180JR )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

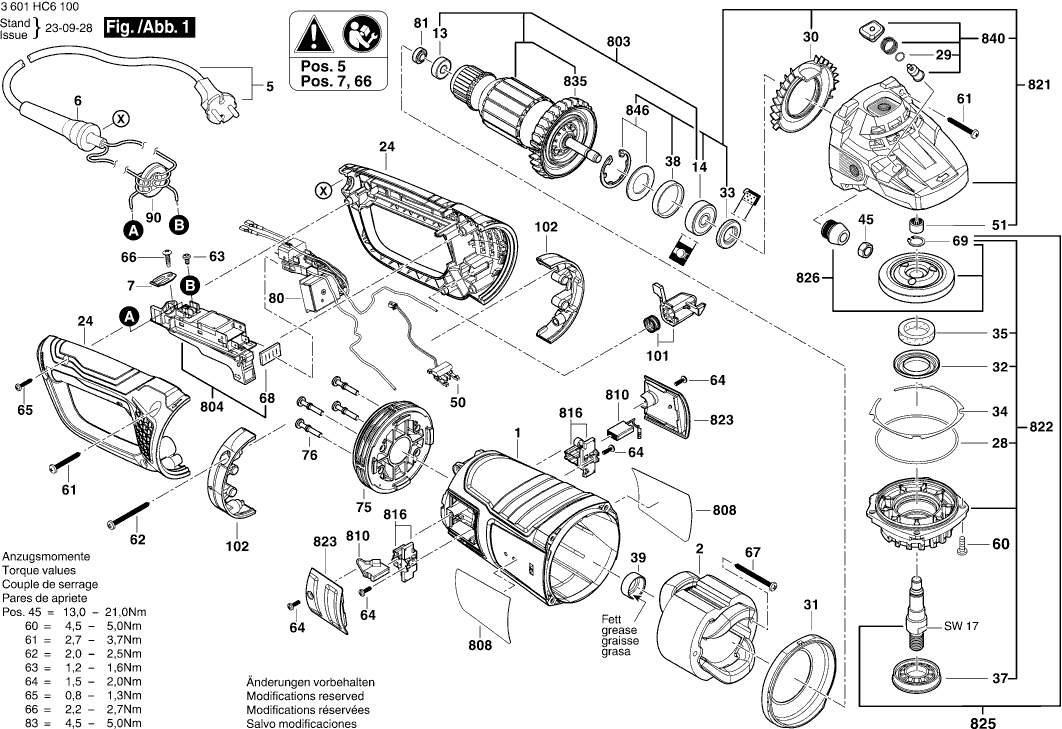

Technical drawing of model Bosch 3601HC6300 ( GWS27-180JR )

Spare parts list of model Bosch 3601HC6300 ( GWS27-180JR )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 1619P15457 11.88 14.37
Field
2 1619P17831 0.83 1.00
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
5 1604460126 13.93 16.86
Grommet
6 1619P14369 1.18 1.43
Fastening Clamp
7 1601302018 1.18 1.43
groove ball bearing 8x22x7
13 1600905011 4.70 5.69
groove ball bearing
14 1600905028 9.53 11.53
Handle
24 1619P17065 0.83 1.00
O-Ring 79,0x1,78 MM
28 1600210033 1.18 1.43
O-Ring 8,0x1,0 MM
29 1600210045 1.18 1.43
Air Distributor
30 1619P15274 2.24 2.71
Air-Deflector Ring
31 1619P17066 0.83 1.00
Retaining snap ring
32 1600290019 1.18 1.43
Rotary shaft lip seal 18,7 MM RED
33 1600290013 1.94 2.35
Shim 0,3 MM THICK
34 1600190021 1.94 2.35
Shim 0,1 MM THICK
34 1600190022 1.18 1.43
Shim 0,15 MM THICK
34 1600190020 1.18 1.43
Shim 0,2 MM THICK
34 1600190037 0.83 1.00
Shim 0,25 MM THICK
34 1600190038 0.83 1.00
Shim 0,35 MM THICK
34 1600190039 0.83 1.00
Shim 0,4 MM THICK
34 1600190040 0.83 1.00
Felt Washer
35 1600205034 1.18 1.43
Seal Ring BLACK
37 1600290036 1.70 2.06
Rubber Ring 7 MM WIDE
38 1600206020 1.18 1.43
Rubber Ring
39 1600206030 1.18 1.43
Hex Nut M10, SW14
45 1603300019 1.18 1.43
No longer available, no replacement
50 1619P17064
Needle-Roller Bearing Ø14 MM
51 2600910001 3.31 4.01
Thread-forming tap. Screw TT M5x18 MM
60 1603435023 1.18 1.43
Tapping Screw DIN 7981-4,8x38-C-Z-ST
61 2912401038 0.83 1.00
Tapping Screw 4,8x55
62 1603435060 1.18 1.43
Pan head screw M4x10 MM
63 1603410014 1.18 1.43
Plastic-Cutting Screw St3,9x12
64 1603435042 1.18 1.43
Tapping Screw DIN 7981-3,9x19-C-Z-ST
65 2912401020 0.83 1.00
Tapping Screw DIN 7971-ST3,9x16-F
66 2910211019 0.83 1.00
Tapping Screw C4,8x63 MM
67 1603435024 1.18 1.43
Sealing Plate
68 1601006011 1.94 2.35
Spring retaining ring
69 2916650905 0.83 1.00
Damper
75 1619P17360 0.83 1.00
Collar Screw
76 1619P17837 0.83 1.00
No longer available, no replacement
80 16072335R9
Magnet
81 1616B10375 0.83 1.00
Ferrite
90 1619P14161 0.83 1.00
Button
101 1619P17357 0.83 1.00
Cap
102 1619P17355 0.83 1.00
Protective Cover Ø180 MM
651 1600A01R95 33.45 40.47
Armature
803 1619P18630 0.83 1.00
Switch
804 1619P18631 0.83 1.00
Label
808 1619P18639 0.83 1.00
Carbon-Brush Set
810 1607014171 11.88 14.37
Brush Holder
816 1604336048 5.33 6.45
Gear Housing
821 1619P15750 29.75 36.00
Bearing Flange Ø180 MM
822 1619P17220 29.75 36.00
Sealing cap
823 1619P15945 2.24 2.71
Grinding Spindle
825 1619P15297 5.83 7.05
Bevel Gear Set Ø180 MM
826 1619P15405 20.42 24.71
No information available, not orderable
835 1606610142
Push-Button
840 1619P15752 2.71 3.28
Retaining Washer
846 1607000342 2.71 3.28
O-Ring 20,35x1,78 MM
890 1600210039 1.70 2.06
Auxiliary Handle
891 1619P09013 7.58 9.17
Auxiliary Handle
891/1 160202509Z 12.41 15.02
Pin-Type Face-Wrench
892 F000632033 1.94 2.35
Clamping Flange Ø22,3xØ42 MM
893 2605703014 4.10 4.96
Round Nut M14
894 1603345043 6.54 7.91
Fast Locking Flange
896 1600A016PP 36.85 44.59
Grease Tube 225 ML
897 1605430003 29.75 36.00
Grease Tube 225 ML
898 1615430020 15.71 19.01
