Here you will find all available parts and drawings of the 'Bosch 3601C64801 ( GWS24-300L )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

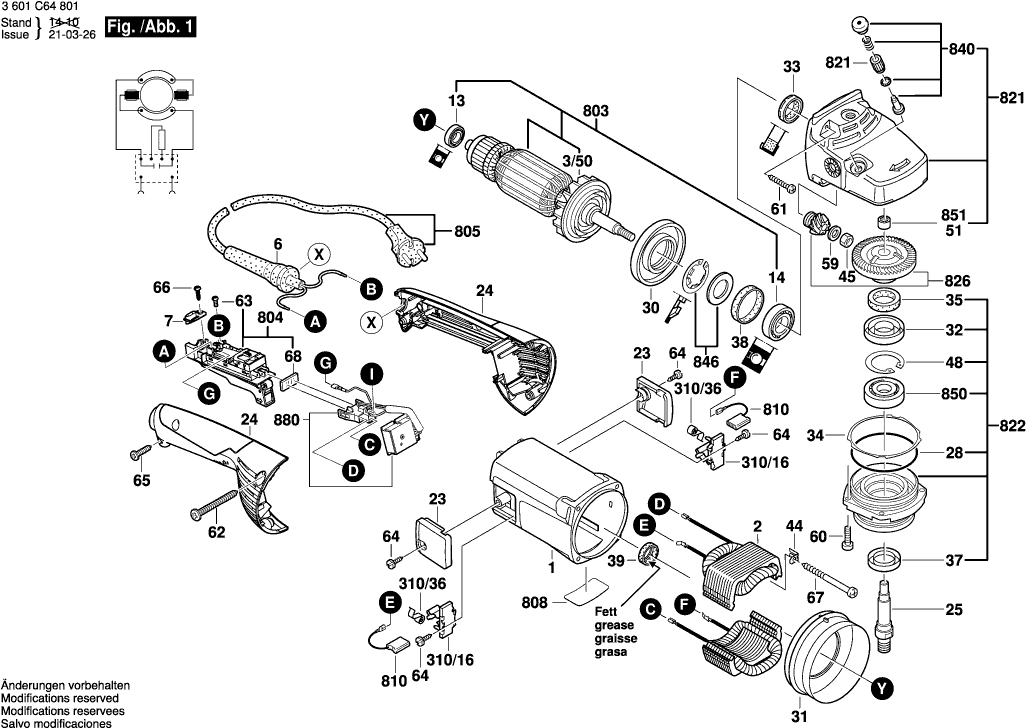

Technical drawing of model Bosch 3601C64801 ( GWS24-300L )

Spare parts list of model Bosch 3601C64801 ( GWS24-300L )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLACK
1 1605108145 20.42 24.71
Field
2 160422057K 60.65 73.39
Fan
3/50 1606610127 2.24 2.71
Grommet Ø10,5-Ø11,0x100 MM
6 1600703036 1.70 2.06
Fastening Clamp
7 1601302018 1.18 1.43
groove ball bearing 8x22x7
13 1600905011 4.70 5.69
groove ball bearing 10x35x11
14 1600905023 9.53 11.53
Sealing cap BLACK
23 1605500150 2.71 3.28
Handle
24 1605132157 10.73 12.98
Grinding Spindle
25 1603123060 36.85 44.59
O-Ring 79,0x1,78 MM
28 1600210033 1.18 1.43
Air-Deflector Ring
30 1600591010 1.70 2.06
Air-Deflector Ring
31 1600591011 1.18 1.43
Retaining snap ring
32 1600290019 1.18 1.43
Rotary shaft lip seal 18,7 MM RED
33 1600290013 1.94 2.35
Shim 0,3 MM THICK
34 1600190021 1.94 2.35
Shim 0,1 MM THICK
34 1600190022 1.18 1.43
Shim 0,15 MM THICK
34 1600190020 1.18 1.43
Felt Washer
35 1600205034 1.18 1.43
Seal Ring
37 1600290020 1.18 1.43
Rubber Ring 7 MM WIDE
38 1600206020 1.18 1.43
Rubber Ring
39 1600206030 1.18 1.43
Holding Bracket
44 1601334008 1.94 2.35
Hex Nut M10, SW14
45 1603300019 1.18 1.43
Spring retaining ring
48 1600119010 1.18 1.43
Plain bearing Ø14 MM
51 1600200031 2.24 2.71
Plain Washer 1,8 MM THICK
59 1600101655 1.18 1.43
Thread-forming tap. Screw
60 1603435076 1.70 2.06
Tapping Screw DIN 7981-4,8x38-C-Z-ST
61 2912401038 0.83 1.00
Tapping Screw C4,8x63 MM
62 1603435024 1.18 1.43
Pan head screw M4x10 MM
63 1603410014 1.18 1.43
Oval-Head Screw A 4x12-10,9-D
64 2914201503 1.70 2.06
Plastic-Cutting Screw St3,9x12
64 1603435042 1.18 1.43
Tapping Screw DIN 7981-3,9x19-C-Z-ST
65 2912401020 0.83 1.00
Tapping Screw DIN 7971-ST3,9x16-F
66 2910211019 0.83 1.00
Tapping Screw 4,8x78 MM, TORX T-20
67 1603435036 1.18 1.43
Sealing Plate
68 1601006011 1.94 2.35
Brush Holder
310/16 1604336021 2.24 2.71
Spiral Spring
310/36 1604652015 1.94 2.35
Protective Cover Ø300 MM
651 1605510212 148.65 179.87
Guide Block Ø300 MM
661 1608190014 130.32 157.69
Round-Head Bolt M 8x30 DIN 603
661/03 2910281246 1.94 2.35
Wing Nut DIN 315-M8-GT-C
661/04 2915191007 2.71 3.28
Plain Washer DIN 315-M8-GT-C
661/05 2600100041 1.18 1.43
Compression Spring
661/06 1604643003 5.33 6.45
Clamping-Flange
662/3 1605703101 73.72 89.20
Hex Screw M14x16x1,5 MM
662/6 2603450007 4.70 5.69
Conical Spring Washer
662/7 1605703100 23.75 28.74
Fast Locking Flange
662/9 1600A016PP 36.85 44.59
Armature 230-240V
803 1604011156 130.32 157.69
On-Off Switch
804 1607000C16 26.84 32.48
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
805 1607000228 20.42 24.71
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set 10 x 1 607 014 171
810 1607000480 101.94 123.35
Carbon-Brush Set
810 1607014171 11.88 14.37
Gear Housing
821 1605805592 73.72 89.20
Parts Set
822 1607000947 44.82 54.23
Bevel Gear Set
826 1600A003DA 209.26 253.20
Push-Button BLACK
840 1607000206 8.45 10.22
Retaining Washer
846 1607000342 2.71 3.28
groove ball bearing
850 3600905134 8.45 10.22
Needle-Roller Bearing Ø14 MM
851 2600910001 3.31 4.01
Electronics Module
880 1607233319 36.85 44.59
