Here you will find all available parts and drawings of the 'Bosch 0601364973 (GWS24-300)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

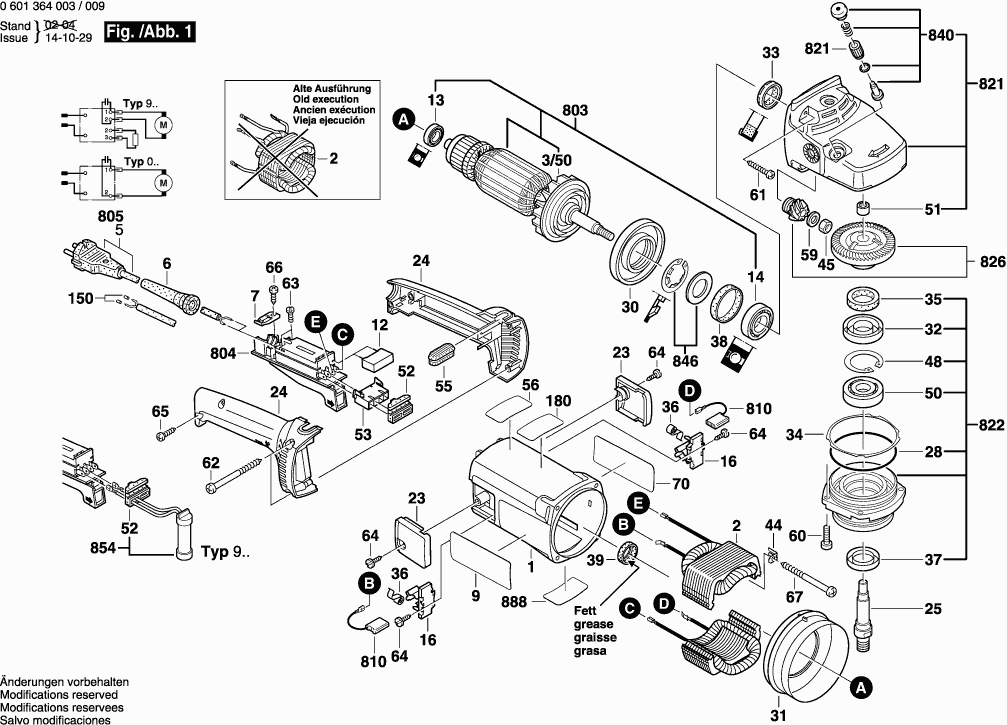

Technical drawing of model Bosch 0601364973 (GWS24-300)
Spare parts list of model Bosch 0601364973 (GWS24-300)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1605108145 | 23.90 | 28.92 | |
| Field | ||||
| 2 | 160422057K | 71.68 | 86.73 | |
| Fan | ||||
| 3/50 | 1606610127 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 1600703023 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118357 | 3.04 | 3.68 | |
| Suppression Filter | ||||
| 12 | 1607328035 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 13 | 1600905011 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 14 | 1600905023 | 11.37 | 13.76 | |
| Brush Holder | ||||
| 16 | 1604336021 | 2.86 | 3.46 | |
| Sealing cap | ||||
| 23 | 1605500150 | 3.44 | 4.16 | |
| Handle | ||||
| 24 | 1605132117 | 9.47 | 11.46 | |
| Grinding Spindle | ||||
| 25 | 1603123060 | 43.12 | 52.18 | |
| O-Ring | ||||
| 28 | 1600210033 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 30 | 1600591010 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 31 | 1600591011 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 32 | 1600290019 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 33 | 1600290013 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190021 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190022 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190020 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190037 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 35 | 1600205034 | 1.49 | 1.80 | |
| Spiral Spring | ||||
| 36 | 1604652015 | 2.86 | 3.46 | |
| Seal Ring | ||||
| 37 | 1600290020 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 38 | 1600206020 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 39 | 1600206030 | 1.49 | 1.80 | |
| Holding Bracket | ||||
| 44 | 1601334008 | 2.18 | 2.64 | |
| Hex Nut | ||||
| 45 | 1603300019 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 48 | 1600119010 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 50 | 3600905134 | 10.90 | 13.19 | |
| Plain bearing | ||||
| 51 | 1600200031 | 2.86 | 3.46 | |
| Cable routing | ||||
| 52 | 1602388027 | 2.40 | 2.90 | |
| Socket Housing | ||||
| 53 | 1605190038 | 1.49 | 1.80 | |
| Storage Ledge | ||||
| 55 | 1602388029 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 56 | 1601110530 | 0.83 | 1.00 | |
| Plain Washer | ||||
| 59 | 1600101655 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 60 | 1603435023 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 61 | 2912401038 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 62 | 1603435024 | 1.49 | 1.80 | |
| Pan head screw | ||||
| 63 | 1603410014 | 1.49 | 1.80 | |
| Plastic-Cutting Screw | ||||
| 64 | 1603435042 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 65 | 2912401020 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 66 | 2910211019 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 67 | 3603435040 | 1.32 | 1.60 | |
| Manufacturer's nameplate | ||||
| 70 | 1601110841 | 2.00 | 2.42 | |
| Suction Hood | ||||
| 702 | 1605510215 | 0.83 | 1.00 | |
| Hex Screw | ||||
| 703/20 | 2603450007 | 5.81 | 7.03 | |
| Strap-Shaped Handle | ||||
| 750 | 1607000247 | 1.00 | 1.21 | |
| Hex Screw | ||||
| 750/20 | 2603450007 | 5.81 | 7.03 | |
| Protective Cover | ||||
| 751 | 1605510224 | 0.83 | 1.00 | |
| Fast Locking Flange | ||||
| 752 | 1603340031 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 761 | 2608190025 | |||
| Offset Screwdriver | ||||
| 762/20 | 1907950007 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 762/30 | 2605703017 | |||
| Offset Screwdriver | ||||
| 762/50 | 1907950009 | 21.30 | 25.77 | |
| Hex Screw | ||||
| 762/60 | 2603450007 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 762/70 | 2605703016 | |||
| Round Nut | ||||
| 762/80 | 2603345003 | 0.83 | 1.00 | |
| Suction Bend | ||||
| 763 | 1600793007 | 1.00 | 1.21 | |
| Armature | ||||
| 803 | 1604011156 | 155.51 | 188.17 | |
| Switch | ||||
| 804 | 1607200105 | 52.45 | 63.46 | |
| Power supply cord | ||||
| 805 | 1607000228 | 23.90 | 28.92 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| Gear Housing | ||||
| 821 | 1605805592 | 88.83 | 107.48 | |
| Parts Set | ||||
| 822 | 1607000947 | 52.45 | 63.46 | |
| Bevel Gear Set | ||||
| 826 | 1600A003DA | 122.80 | 148.59 | |
| Push-Button | ||||
| 840 | 1607000206 | 10.90 | 13.19 | |
| Retaining Washer | ||||
| 846 | 1607000342 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 854 | 1607000926 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
