Here you will find all available parts and drawings of the 'Bosch 3601H64T00 ( GWS24-230JBX )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

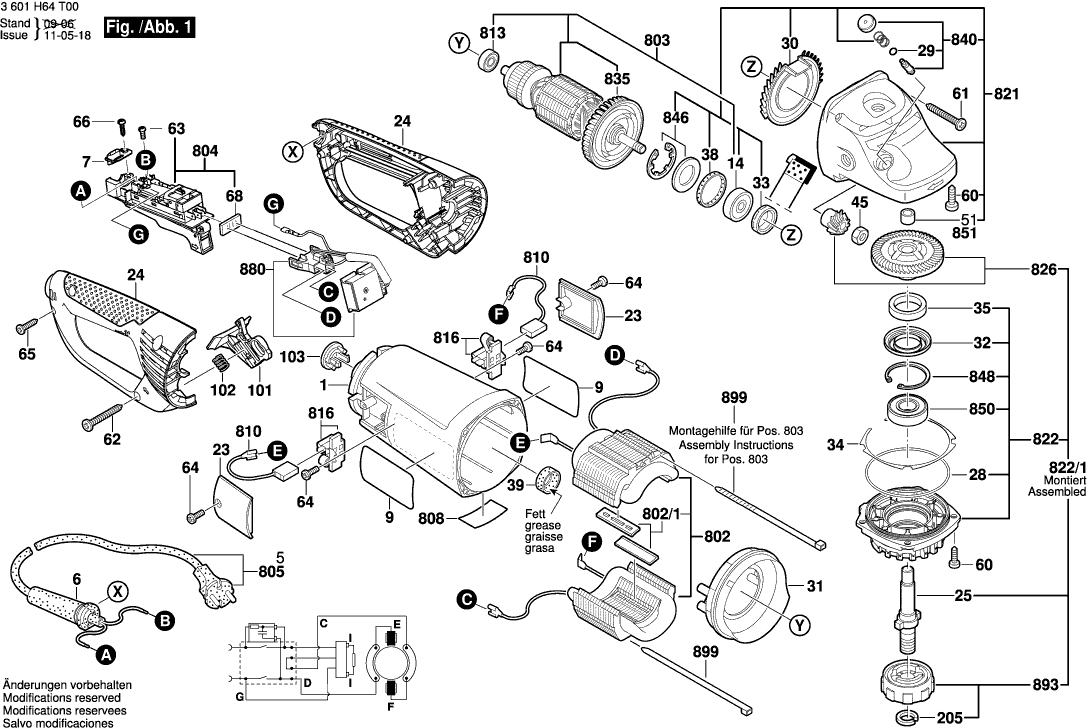

Technical drawing of model Bosch 3601H64T00 ( GWS24-230JBX )

Spare parts list of model Bosch 3601H64T00 ( GWS24-230JBX )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 1605108236 11.88 14.37
Grommet Ø10,5-Ø11,0x100 MM
6 1600703036 1.70 2.06
Fastening Clamp
7 1601302018 1.18 1.43
Manufacturer's nameplate GWS 24-230 JBX
9 1601118R36 1.70 2.06
groove ball bearing
14 1600905028 9.53 11.53
Sealing cap
23 1605500236 2.71 3.28
Handle BLUE
24 1605132151 11.88 14.37
Grinding Spindle
25 160312305Z 40.61 49.14
O-Ring 79,0x1,78 MM
28 1600210033 1.18 1.43
O-Ring 8,0x1,0 MM
29 1600210045 1.18 1.43
Air Distributor
30 1600591029 1.94 2.35
Air-Deflector Ring
31 1600591075 1.94 2.35
Retaining snap ring
32 1600290019 1.18 1.43
Rotary shaft lip seal 16 MM BLUE
33 1600290064 1.70 2.06
Shim 0,3 MM THICK
34 1600190021 1.94 2.35
Shim 0,1 MM THICK
34 1600190022 1.18 1.43
Shim 0,15 MM THICK
34 1600190020 1.18 1.43
Shim 0,2 MM THICK
34 1600190037 0.83 1.00
Shim 0,25 MM THICK
34 1600190038 0.83 1.00
Shim 0,35 MM THICK
34 1600190039 0.83 1.00
Shim 0,4 MM THICK
34 1600190040 0.83 1.00
Felt Washer
35 1600205034 1.18 1.43
Rubber Ring 7 MM WIDE
38 1600206020 1.18 1.43
Rubber Ring
39 1600206030 1.18 1.43
Hex Nut M10, SW14
45 1603300019 1.18 1.43
Plain bearing Ø14 MM
51 1600200031 2.24 2.71
Thread-forming tap. Screw TT M5x18 MM
60 1603435023 1.18 1.43
Tapping Screw DIN 7981-4,8x38-C-Z-ST
61 2912401038 0.83 1.00
Oval-Head Screw
62 1603415006 1.70 2.06
Pan head screw M4x10 MM
63 1603410014 1.18 1.43
Plastic-Cutting Screw St3,9x12
64 1603435042 1.18 1.43
Tapping Screw DIN 7981-3,9x19-C-Z-ST
65 2912401020 0.83 1.00
Tapping Screw DIN 7971-ST3,9x16-F
66 2910211019 0.83 1.00
Sealing Plate
68 1601006011 1.94 2.35
Catch Slide
101 1601990014 2.24 2.71
Compression Spring
102 1604616022 1.18 1.43
Cable routing
103 1602388035 1.18 1.43
Spring retaining ring
205 1600209015 0.83 1.00
Protective Cover Ø230 MM
651 1600A01R96 33.45 40.47
Auxiliary Handle M14 BLACK
660 1602025051 23.75 28.74
Field
802 160422057L 101.94 123.35
Brake Shoe
802/1 1607000363 36.85 44.59
Armature
803 1604010BC2 91.56 110.79
On-Off Switch GRAY
804 1607000C14 23.75 28.74
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
805 1607000228 20.42 24.71
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set 10 x 1 607 014 171
810 1607000480 101.94 123.35
Carbon-Brush Set
810 1607014171 11.88 14.37
groove ball bearing 8x22x7
813 1600905011 4.70 5.69
Brush Holder
816 1604336048 5.33 6.45
Gear Housing
821 1607000C27 55.25 66.85
Bearing Flange Ø230 MM
822 1607000C24 20.42 24.71
Bearing Flange
822/1 1607000C25 73.72 89.20
Bevel Gear Set
826 1607000C29 55.25 66.85
No information available, not orderable
835 1606610142
Push-Button
840 1607000354 5.33 6.45
Retaining Washer
846 1607000342 2.71 3.28
Spring retaining ring
848 1600119010 1.18 1.43
groove ball bearing 17x40x12
850 1600905026 6.54 7.91
Needle-Roller Bearing Ø14 MM
851 2600910001 3.31 4.01
Electronics Module
880 1607233319 36.85 44.59
Auxiliary Handle
891 16020250A1 11.88 14.37
Pin-Type Face-Wrench
892 F000632033 1.94 2.35
Clamping-Flange
893 1607000368 26.84 32.48
Round Nut M14
894 1603345043 6.54 7.91
Fast Locking Flange
896 1600A016PP 36.85 44.59
Puller
898 1609244A78 130.32 157.69
Cable tie 250x13,8x2
899 1609203H18 3.31 4.01
