Here you will find all available parts and drawings of the 'Bosch 0601753079 (GWS23-180)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

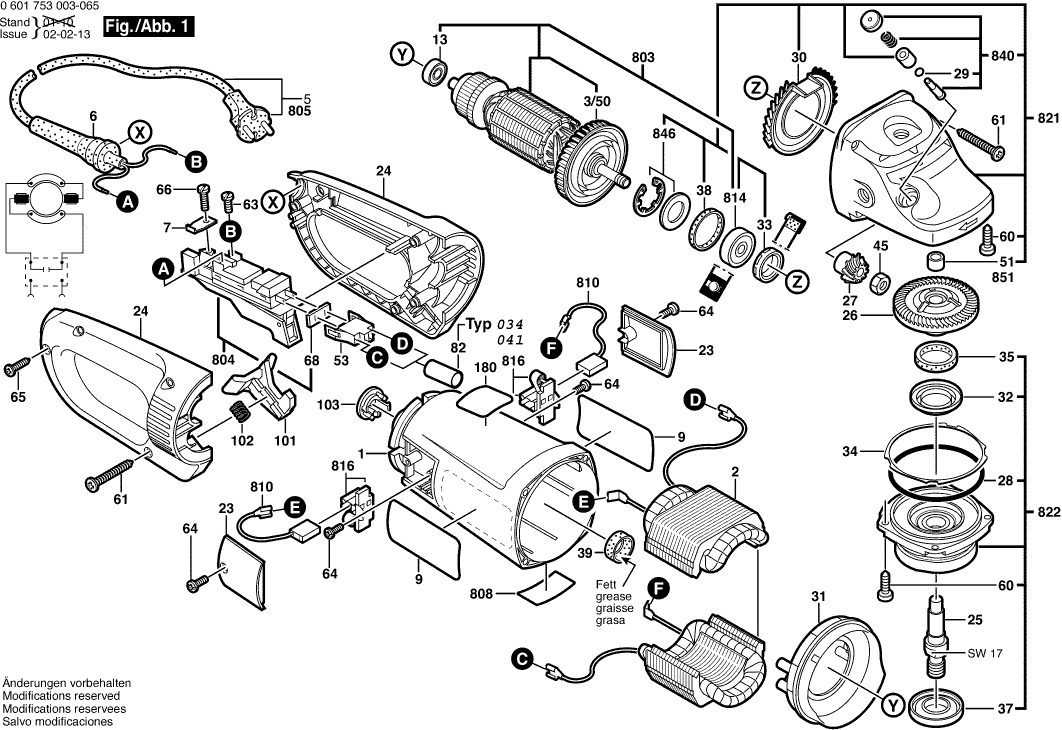

Technical drawing of model Bosch 0601753079 (GWS23-180)
Spare parts list of model Bosch 0601753079 (GWS23-180)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| groove ball bearing | ||||
| 13 | 1600905011 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 14 | 1600905023 | 11.37 | 13.76 | |
| Bearing Flange | ||||
| 22 | 1605805137 | 18.94 | 22.92 | |
| Brush-Cover | ||||
| 23 | F000600349 | 1.49 | 1.80 | |
| Handle | ||||
| 24 | F000603011 | 11.37 | 13.76 | |
| Grinding Spindle | ||||
| 25 | 160312305U | 11.02 | 13.33 | |
| No longer available, no replacement | ||||
| 26 | 1606333618 | |||
| Bevel Gear | ||||
| 27 | 1606333237 | 31.42 | 38.02 | |
| O-Ring | ||||
| 28 | 1600210033 | 1.49 | 1.80 | |
| O-Ring | ||||
| 29 | 1600210034 | 1.49 | 1.80 | |
| Splash Guard | ||||
| 30 | F000600350 | 4.18 | 5.06 | |
| Air-Deflector Ring | ||||
| 31 | F000604003 | 3.44 | 4.16 | |
| Retaining snap ring | ||||
| 32 | 1600290019 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 33 | 1600290013 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190021 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190022 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190020 | 1.49 | 1.80 | |
| Felt Washer | ||||
| 35 | 1600205034 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 37 | 1600290036 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 38 | 1600206020 | 1.49 | 1.80 | |
| Locating ring | ||||
| 39 | F000616060 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1603300019 | 1.49 | 1.80 | |
| Retaining Washer 1,8 MM THICK | ||||
| 46 | 1600102018 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 47 | 1600119008 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 48 | 1600119010 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 50 | 3600905134 | 10.90 | 13.19 | |
| Needle-Roller Bearing | ||||
| 51 | 2600910001 | 4.18 | 5.06 | |
| Roller pot | ||||
| 53 | F000600567 | 1.00 | 1.21 | |
| Screw | ||||
| 60 | 9618086638 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 61 | F000600216 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 62 | F000600216 | 1.00 | 1.21 | |
| Screw | ||||
| 64 | 9618087099 | 1.49 | 1.80 | |
| Screw | ||||
| 65 | 9618087099 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 67 | F000600215 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 71 | 9618089885 | 1.00 | 1.21 | |
| Bearing Flange | ||||
| 72 | F000600222 | 2.86 | 3.46 | |
| Auxiliary Handle | ||||
| 660 | 160202509Z | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 661 | 1605510176 | |||
| Clamping Flange | ||||
| 662 | 2605703014 | 7.53 | 9.11 | |
| Round Nut | ||||
| 663 | F000635152 | 7.46 | 9.03 | |
| Pin-Type Face-Wrench | ||||
| 664 | F000632033 | 2.40 | 2.90 | |
| Motor Housing | ||||
| 801 | F000600546 | 21.30 | 25.77 | |
| Armature 220V | ||||
| 803 | F000605227 | 173.95 | 210.48 | |
| Carbon-Brush Set E64 | ||||
| 810 | F000611090 | 13.13 | 15.89 | |
| Brush Holder | ||||
| 811 | 1604336047 | 5.81 | 7.03 | |
| Pivot Pin | ||||
| 812 | 9618086834 | 2.86 | 3.46 | |
| Switch | ||||
| 814 | F000600221 | 23.90 | 28.92 | |
| No information available, not orderable | ||||
| 815 | F000609000 | |||
| Grommet | ||||
| 816 | 1600703023 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 817 | F000600243 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 818 | F000600340 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 821 | F000602169 | |||
| Spiral Spring | ||||
| 836 | 1604652019 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 844 | F000603115 | |||
