Here you will find all available parts and drawings of the 'Bosch 3601HC1303 ( GWS22-230J )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

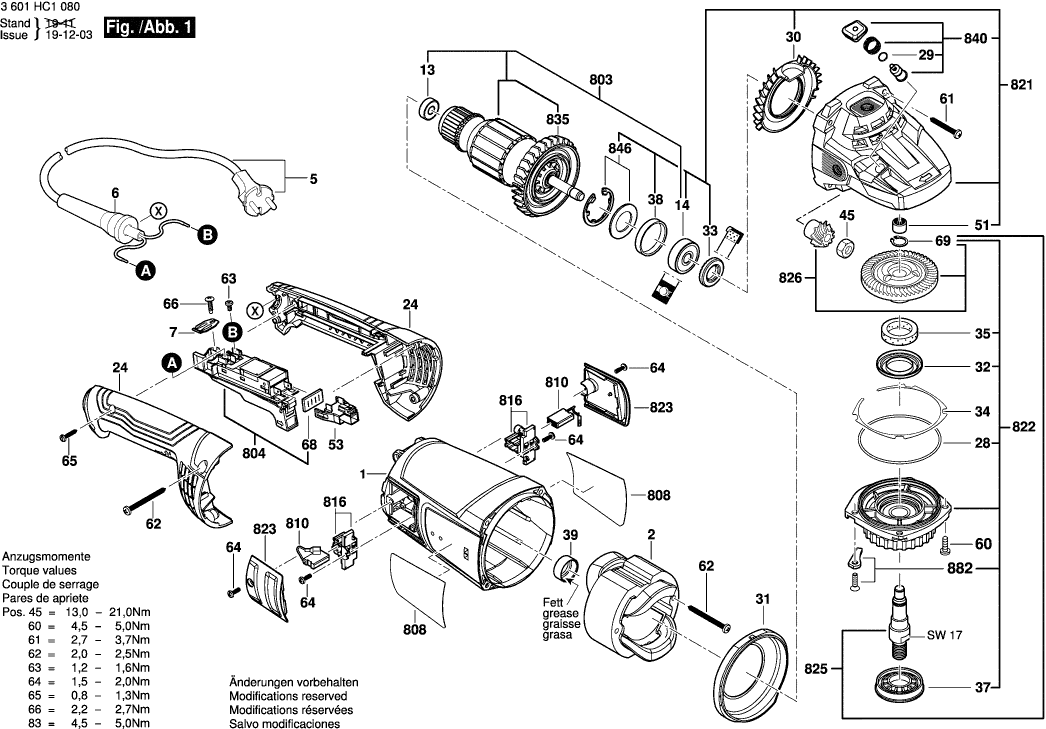

Technical drawing of model Bosch 3601HC1303 ( GWS22-230J )

Spare parts list of model Bosch 3601HC1303 ( GWS22-230J )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 16051082MU 12.41 15.02
Field
2 1619P15702 29.75 36.00
Power supply cord
5 3607030489 26.84 32.48
Grommet
6 1619P14369 1.18 1.43
Fastening Clamp
7 1601302018 1.18 1.43
groove ball bearing 8x22x7
13 1600905011 4.70 5.69
groove ball bearing
14 1600905028 9.53 11.53
Handle
24 1619P15272 9.53 11.53
O-Ring 79,0x1,78 MM
28 1600210033 1.18 1.43
O-Ring 8,0x1,0 MM
29 1600210045 1.18 1.43
Air Distributor
30 1619P15274 2.24 2.71
Retaining snap ring
32 1600290019 1.18 1.43
Rotary shaft lip seal 18,7 MM RED
33 1600290013 1.94 2.35
Shim 0,3 MM THICK
34 1600190021 1.94 2.35
Shim 0,1 MM THICK
34 1600190022 1.18 1.43
Shim 0,15 MM THICK
34 1600190020 1.18 1.43
Shim 0,2 MM THICK
34 1600190037 0.83 1.00
Shim 0,25 MM THICK
34 1600190038 0.83 1.00
Shim 0,35 MM THICK
34 1600190039 0.83 1.00
Shim 0,4 MM THICK
34 1600190040 0.83 1.00
Felt Washer
35 1600205034 1.18 1.43
Seal Ring BLACK
37 1600290036 1.70 2.06
Rubber Ring 7 MM WIDE
38 1600206020 1.18 1.43
Rubber Ring
39 1600206030 1.18 1.43
Hex Nut M10, SW14
45 1603300019 1.18 1.43
Needle-Roller Bearing Ø14 MM
51 2600910001 3.31 4.01
Socket Housing
53 1605190068 0.83 1.00
Thread-forming tap. Screw TT M5x18 MM
60 1603435023 1.18 1.43
Tapping Screw DIN 7981-4,8x38-C-Z-ST
61 2912401038 0.83 1.00
Tapping Screw 4,8x55
62 1603435060 1.18 1.43
Pan head screw M4x10 MM
63 1603410014 1.18 1.43
Plastic-Cutting Screw St3,9x12
64 1603435042 1.18 1.43
Tapping Screw DIN 7981-3,9x19-C-Z-ST
65 2912401020 0.83 1.00
Tapping Screw DIN 7971-ST3,9x16-F
66 2910211019 0.83 1.00
Sealing Plate
68 1601006011 1.94 2.35
Spring retaining ring
69 2916650905 0.83 1.00
Protective Cover Ø230 MM
651 1619P15668 12.41 15.02
Armature
803 1619P15749 44.82 54.23
Switch
804 1619P16542 29.75 36.00
Nameplate
808 1619P18061 0.83 1.00
Carbon-Brush Set
810 1607014171 11.88 14.37
Brush Holder
816 1604336048 5.33 6.45
Gear Housing
821 1619P15750 29.75 36.00
Bearing Flange Ø 230MM
822 1619P15872 15.71 19.01
Sealing cap
823 1619P15945 2.24 2.71
Grinding Spindle
825 1619P15297 5.83 7.05
Bevel Gear Set Ø230 MM
826 1619P15388 20.42 24.71
No information available, not orderable
835 1606610142
Push-Button
840 1619P15752 2.71 3.28
Retaining Washer
846 1607000342 2.71 3.28
Stopper
882 1619P06597 3.31 4.01
O-Ring 20,35x1,78 MM
890 1600210039 1.70 2.06
Auxiliary Handle
891 1619P09013 7.58 9.17
Auxiliary Handle
891/1 160202509Z 12.41 15.02
Pin-Type Face-Wrench
892 F000632033 1.94 2.35
Clamping Flange Ø22,3xØ42 MM
893 2605703014 4.10 4.96
Round Nut M14
894 1603345043 6.54 7.91
Fast Locking Flange
896 1600A016PP 36.85 44.59
Grease Tube 225 ML
897 1605430003 29.75 36.00
Grease Tube 225 ML
898 1615430020 15.71 19.01
