Here you will find all available parts and drawings of the 'Bosch 3601HB70P0 (GWS2000)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

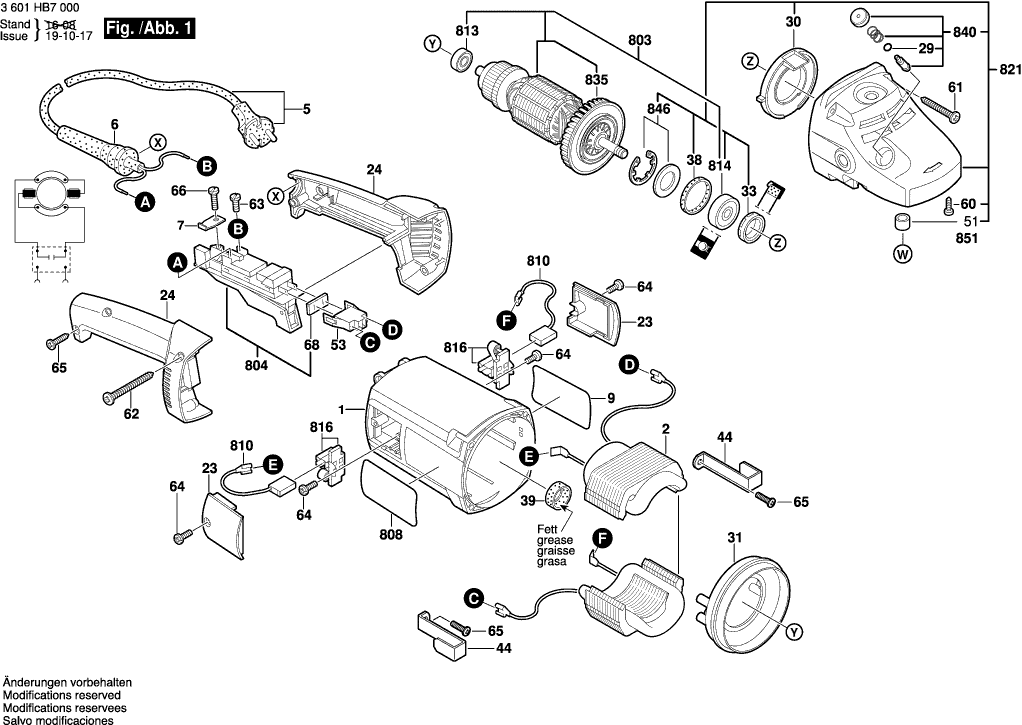

Technical drawing of model Bosch 3601HB70P0 (GWS2000)
Spare parts list of model Bosch 3601HB70P0 (GWS2000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P09887 | 14.94 | 18.08 | |
| Field | ||||
| 2 | 1604220380 | 34.82 | 42.13 | |
| Power supply cord GB 2,65m 2 x 1,0mm H07 RN-F | ||||
| 5 | 3604460071 | 17.60 | 21.30 | |
| Grommet | ||||
| 6 | 2600703019 | 2.40 | 2.90 | |
| Grommet | ||||
| 6 | 1619P14369 | 1.49 | 1.80 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate GWS 2000 | ||||
| 9 | 1619P13489 | 2.18 | 2.64 | |
| Sealing cap | ||||
| 23 | 1619P14320 | 3.44 | 4.16 | |
| Handle | ||||
| 24 | 1619P13504 | 6.53 | 7.90 | |
| O-Ring | ||||
| 28 | 1600210033 | 1.49 | 1.80 | |
| O-Ring | ||||
| 29 | 1600210045 | 1.49 | 1.80 | |
| Air Distributor | ||||
| 30 | 1600591035 | 2.40 | 2.90 | |
| Air-Deflector Ring | ||||
| 31 | 1619P17209 | 2.08 | 2.52 | |
| Retaining snap ring | ||||
| 32 | 1600290019 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 33 | 1600290013 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190021 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190022 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190020 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190037 | 1.00 | 1.21 | |
| Shim | ||||
| 34 | 1600190038 | 1.00 | 1.21 | |
| Shim | ||||
| 34 | 1600190039 | 1.00 | 1.21 | |
| Shim | ||||
| 34 | 1600190040 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 35 | 1600205034 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 37 | 1600290036 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 38 | 1600206020 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 39 | 1619P14249 | 1.00 | 1.21 | |
| Pickup Clip | ||||
| 44 | 1601334009 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 45 | 1603300019 | 1.49 | 1.80 | |
| Needle-Roller Bearing | ||||
| 51 | 2600910001 | 4.18 | 5.06 | |
| Socket Housing | ||||
| 53 | 1605190068 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 60 | 1603435023 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 61 | 2912401038 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 62 | 1603435024 | 1.49 | 1.80 | |
| Pan head screw | ||||
| 63 | 1603410014 | 1.49 | 1.80 | |
| Plastic-Cutting Screw | ||||
| 64 | 1603435042 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 65 | 2912401020 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 66 | 2910211019 | 1.00 | 1.21 | |
| Sealing Plate | ||||
| 68 | 1601006011 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 69 | 2916650905 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 651 | 1600A00XL9 | 18.94 | 22.92 | |
| Armature | ||||
| 803 | 1604011252 | 64.67 | 78.25 | |
| Switch | ||||
| 804 | 1619P14186 | 13.90 | 16.82 | |
| Nameplate | ||||
| 808 | 1619P31772 | 2.18 | 2.64 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| groove ball bearing | ||||
| 813 | 1600905011 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 814 | 1600905023 | 11.37 | 13.76 | |
| Brush Holder | ||||
| 816 | 1604336048 | 6.53 | 7.90 | |
| Gear Housing | ||||
| 821 | 1619P14183 | 26.62 | 32.21 | |
| Bearing Flange | ||||
| 822 | 1619P15298 | 18.94 | 22.92 | |
| Spring retaining ring | ||||
| 822/22/48 | 1600119010 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 822/22/50 | 1600905026 | 8.35 | 10.10 | |
| Bearing Flange | ||||
| 823 | 1619P15624 | 58.03 | 70.22 | |
| Grinding Spindle | ||||
| 825 | 1619P15297 | 7.46 | 9.03 | |
| Bevel Gear Set | ||||
| 826 | 1619P15405 | 23.90 | 28.92 | |
| Fan | ||||
| 835 | 1606610127 | 2.86 | 3.46 | |
| Push-Button | ||||
| 840 | 1607000354 | 5.96 | 7.21 | |
| Retaining Washer | ||||
| 846 | 1607000342 | 3.44 | 4.16 | |
| Stopper | ||||
| 882 | 1619P06597 | 4.18 | 5.06 | |
| O-Ring | ||||
| 890 | 1600210039 | 2.08 | 2.52 | |
| Auxiliary Handle | ||||
| 891 | 1619P09013 | 7.58 | 9.17 | |
| Auxiliary Handle | ||||
| 891/1 | 160202509Z | 14.94 | 18.08 | |
| Pin-Type Face-Wrench | ||||
| 892 | F000632033 | 2.40 | 2.90 | |
| Clamping Flange | ||||
| 893 | 2605703014 | 7.53 | 9.11 | |
| Round Nut | ||||
| 894 | 1603345043 | 8.35 | 10.10 | |
| Fast Locking Flange | ||||
| 896 | 1600A016PP | 41.30 | 49.97 | |
| Grease Tube | ||||
| 897 | 1605430003 | 34.82 | 42.13 | |
| Grease Tube | ||||
| 898 | 1615430020 | 18.94 | 22.92 | |
