Here you will find all available parts and drawings of the 'Bosch 0601850193 ( GWS20-230 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

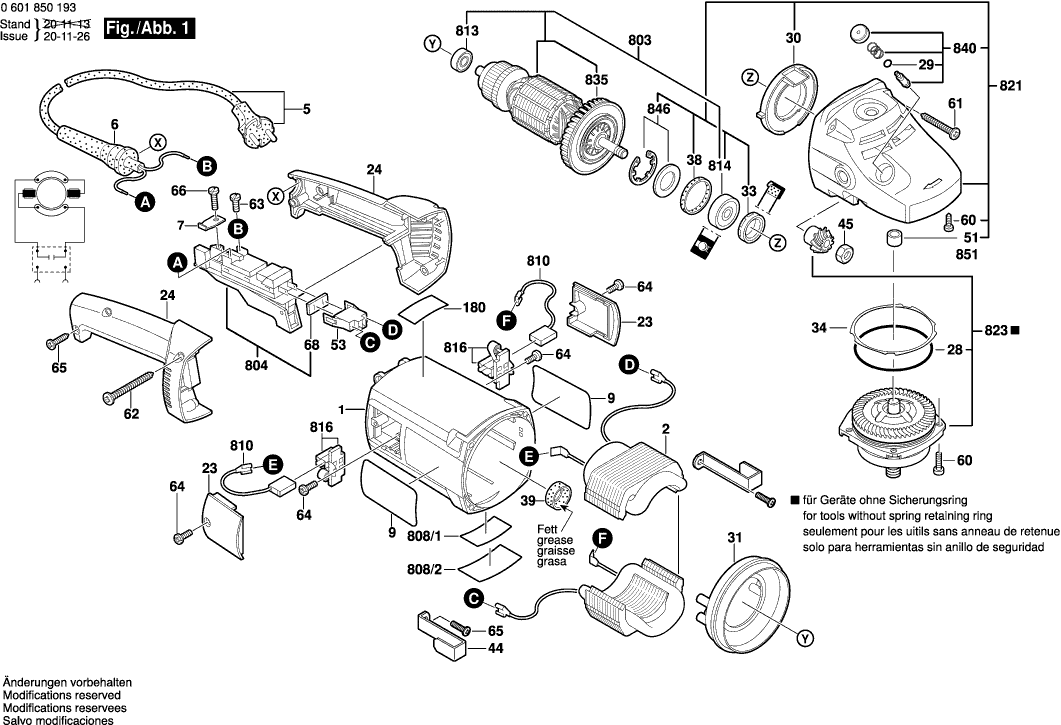

Technical drawing of model Bosch 0601850193 ( GWS20-230 )

Spare parts list of model Bosch 0601850193 ( GWS20-230 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 1605108233 13.93 16.86
Field 220-240V
2 1604220380 29.75 36.00
Grommet Ø 10,5-Ø11,0x100 MM
6 1600703023 1.94 2.35
Fastening Clamp
7 1601302018 1.18 1.43
Manufacturer's nameplate GWS 20-230H
9 1619P01520 1.94 2.35
Sealing cap
23 1619P14320 2.71 3.28
Handle BLUE
24 1605132140 9.53 11.53
Grinding Spindle
25 1619P14614 10.10 12.22
O-Ring 79,0x1,78 MM
28 1600210033 1.18 1.43
O-Ring 8,0x1,0 MM
29 1600210045 1.18 1.43
Air Distributor
30 1600591035 1.94 2.35
Air-Deflector Ring
31 1600591036 2.11 2.55
Air-Deflector Ring
31 1619P17209 1.70 2.06
Retaining snap ring
32 1600290019 1.18 1.43
Rotary shaft lip seal 18,7 MM RED
33 1600290013 1.94 2.35
Shim 0,3 MM THICK
34 1600190021 1.94 2.35
Shim 0,1 MM THICK
34 1600190022 1.18 1.43
Shim 0,15 MM THICK
34 1600190020 1.18 1.43
Shim 0,2 MM THICK
34 1600190037 0.83 1.00
Shim 0,25 MM THICK
34 1600190038 0.83 1.00
Shim 0,35 MM THICK
34 1600190039 0.83 1.00
Shim 0,4 MM THICK
34 1600190040 0.83 1.00
Felt Washer
35 1600205034 1.18 1.43
Seal Ring BLACK
37 1600290036 1.70 2.06
Rubber Ring 7 MM WIDE
38 1600206020 1.18 1.43
Rubber Ring
39 1600206030 1.18 1.43
Pickup Clip
44 1601334009 0.83 1.00
Hex Nut M10, SW14
45 1603300019 1.18 1.43
Needle-Roller Bearing Ø14 MM
51 2600910001 3.31 4.01
Socket Housing
53 1605190068 0.83 1.00
Thread-forming tap. Screw TT M5x18 MM
60 1603435023 1.18 1.43
Tapping Screw DIN 7981-4,8x38-C-Z-ST
61 2912401038 0.83 1.00
Tapping Screw C4,8x63 MM
62 1603435024 1.18 1.43
Pan head screw M4x10 MM
63 1603410014 1.18 1.43
Plastic-Cutting Screw St3,9x12
64 1603435042 1.18 1.43
Tapping Screw DIN 7981-3,9x19-C-Z-ST
65 2912401020 0.83 1.00
Tapping Screw DIN 7971-ST3,9x16-F
66 2910211019 0.83 1.00
Sealing Plate
68 1601006011 1.94 2.35
Armature 220-240V
803 1604011252 73.72 89.20
Switch BLACK
804 1607000967 26.84 32.48
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
Nameplate
808/1 160111A3H3 1.94 2.35
Transparent Cover
808/2 1619P01490 0.83 1.00
Carbon-Brush Set
810 1607014171 11.88 14.37
groove ball bearing 8x22x7
813 1600905011 4.70 5.69
groove ball bearing 10x35x11
814 1600905023 9.53 11.53
Brush Holder
816 1604336048 5.33 6.45
Gear Housing
821 1607000C00 49.56 59.97
Bearing Flange Ø230 MM
822 1607000C05 20.42 24.71
Spring retaining ring
822/22/48 1600119010 1.18 1.43
groove ball bearing 17x40x12
822/22/50 1600905026 6.54 7.91
Bearing Flange Ø180 MM
823 1619P15649 40.61 49.14
No information available, not orderable
826 1619P02776
Fan
835 1606610127 2.24 2.71
Push-Button
840 1607000354 5.33 6.45
Retaining Washer
846 1607000342 2.71 3.28
Protective Cover
850 1600A00XM0 18.19 22.01
Needle-Roller Bearing Ø14 MM
851 2600910001 3.31 4.01
O-Ring 20,35x1,78 MM
890 1600210039 1.70 2.06
Auxiliary Handle
891 1619P09013 7.58 9.17
Auxiliary Handle
891/1 160202509Z 12.41 15.02
Pin-Type Face-Wrench
892 F000632033 1.94 2.35
Clamping Flange Ø22,3xØ42 MM
893 2605703014 4.10 4.96
Round Nut M14
894 1603345043 6.54 7.91
Fast Locking Flange
896 1600A016PP 36.85 44.59
