Here you will find all available parts and drawings of the 'Bosch 0601351103 (GWS19-180)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

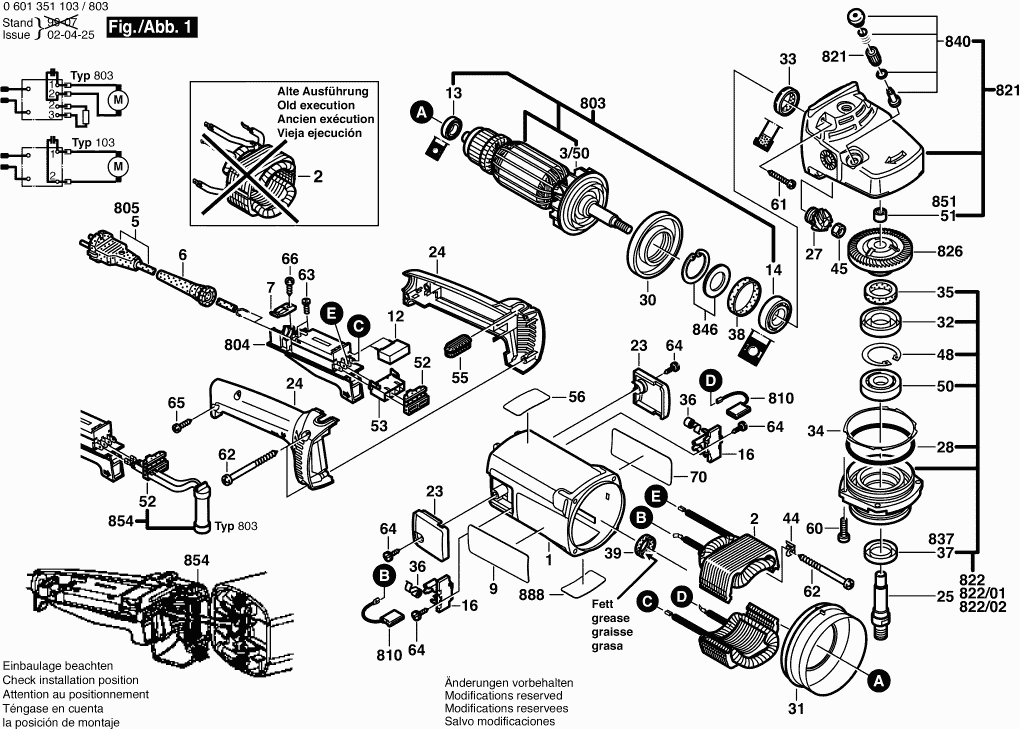

Technical drawing of model Bosch 0601351103 (GWS19-180)
Spare parts list of model Bosch 0601351103 (GWS19-180)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1605108144 | |||
| Field | ||||
| 2 | 1604220380 | 34.82 | 42.13 | |
| Fan | ||||
| 3/50 | 1606610127 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 1600703023 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118314 | 2.38 | 2.88 | |
| Suppression Filter | ||||
| 12 | 1607328035 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 13 | 1600905011 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 14 | 1600905028 | 12.09 | 14.63 | |
| Brush Holder | ||||
| 16 | 1604336021 | 2.86 | 3.46 | |
| Sealing cap | ||||
| 23 | 1605500150 | 3.44 | 4.16 | |
| Handle | ||||
| 24 | 1605132117 | 9.47 | 11.46 | |
| Grinding Spindle | ||||
| 25 | 1603523100 | 13.13 | 15.89 | |
| Bevel Gear | ||||
| 27 | 1606333237 | 31.42 | 38.02 | |
| O-Ring | ||||
| 28 | 1600210033 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 30 | 1600591010 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 31 | 1600591011 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 32 | 1600290019 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 33 | 1600290013 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190021 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190022 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190020 | 1.49 | 1.80 | |
| Felt Washer | ||||
| 35 | 1600205034 | 1.49 | 1.80 | |
| Spiral Spring | ||||
| 36 | 1604652015 | 2.86 | 3.46 | |
| Seal Ring | ||||
| 37 | 1600290036 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 38 | 1600206020 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 39 | 1600206030 | 1.49 | 1.80 | |
| Holding Bracket | ||||
| 44 | 1601334008 | 2.18 | 2.64 | |
| Hex Nut | ||||
| 45 | 1603300019 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 48 | 1600119010 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 50 | 3600905134 | 10.90 | 13.19 | |
| Plain bearing | ||||
| 51 | 1600200031 | 2.86 | 3.46 | |
| Socket Housing | ||||
| 53 | 1605190038 | 1.49 | 1.80 | |
| Storage Ledge | ||||
| 55 | 1602388029 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 60 | 1603435023 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 61 | 2912401038 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 62 | 1603435024 | 1.49 | 1.80 | |
| Pan head screw | ||||
| 63 | 1603410014 | 1.49 | 1.80 | |
| Plastic-Cutting Screw | ||||
| 64 | 1603435042 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 65 | 2912401020 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 66 | 2910211019 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 70 | 1601110979 | 0.83 | 1.00 | |
| O-Ring | ||||
| 650/30/20 | 1600210039 | 2.08 | 2.52 | |
| Parts Set | ||||
| 700 | 1607000250 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 700/10 | 1605510222 | |||
| No longer available, no replacement | ||||
| 700/20 | 1608135003 | |||
| No longer available, no replacement | ||||
| 701 | 1608135003 | |||
| Suction Hood | ||||
| 702 | 1605510179 | 0.83 | 1.00 | |
| Strap-Shaped Handle | ||||
| 703 | 1607000247 | 1.00 | 1.21 | |
| Hex Screw | ||||
| 703/20 | 2603450007 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 704 | 1605510181 | |||
| No longer available, no replacement | ||||
| 730 | 1608601006 | |||
| Round Nut | ||||
| 730/20 | 1603345004 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 730/30 | 2916011022 | 1.49 | 1.80 | |
| Protecting Cover | ||||
| 740 | 1601329013 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 750/10 | 2602025075 | 1.00 | 1.21 | |
| Pin-Type Face-Wrench | ||||
| 750/20 | 1607950048 | 1.00 | 1.21 | |
| Round-Head Bolt | ||||
| 750/20/30 | 2910281244 | 1.49 | 1.80 | |
| Wing Nut | ||||
| 750/20/40 | 2915191007 | 3.44 | 4.16 | |
| Plain Washer | ||||
| 750/20/50 | 2600100041 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 750/20/60 | 1604643003 | 6.73 | 8.14 | |
| Clamping-Flange | ||||
| 750/30 | 1605703099 | 1.00 | 1.21 | |
| Clamping Nut | ||||
| 750/40 | 1603340040 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 751 | 1605510222 | |||
| Suction Bend | ||||
| 763 | 1600793007 | 1.00 | 1.21 | |
| Pin-Type Face-Wrench | ||||
| 764 | 1607950004 | 1.00 | 1.21 | |
| SNELSPANMOER | ||||
| 770 | 1603340027 | 45.52 | 55.08 | |
| Fast Locking Flange | ||||
| 770 | 1600A016PP | 41.30 | 49.97 | |
| Armature | ||||
| 803 | 1604011252 | 64.67 | 78.25 | |
| Switch | ||||
| 804 | 1607200103 | 27.81 | 33.65 | |
| Power supply cord | ||||
| 805 | 1607000228 | 23.90 | 28.92 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| Gear Housing | ||||
| 821 | 1605805592 | 88.83 | 107.48 | |
| No longer available, no replacement | ||||
| 822 | 1607000986 | |||
| Bearing Flange | ||||
| 822/01 | 1607000931 | 31.65 | 38.30 | |
| Bearing Flange | ||||
| 822/02 | 1607000921 | 43.21 | 52.28 | |
| No longer available, no replacement | ||||
| 826 | 1606333618 | |||
| Seal Ring | ||||
| 837 | 1600290020 | 1.49 | 1.80 | |
| Push-Button | ||||
| 840 | 1607000206 | 10.90 | 13.19 | |
| Retaining Washer | ||||
| 846 | 1607000342 | 3.44 | 4.16 | |
| Needle-Roller Bearing | ||||
| 851 | 2600910001 | 4.18 | 5.06 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
