Here you will find all available parts and drawings of the 'Bosch 3601JG3403 (GWS18V-115SC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

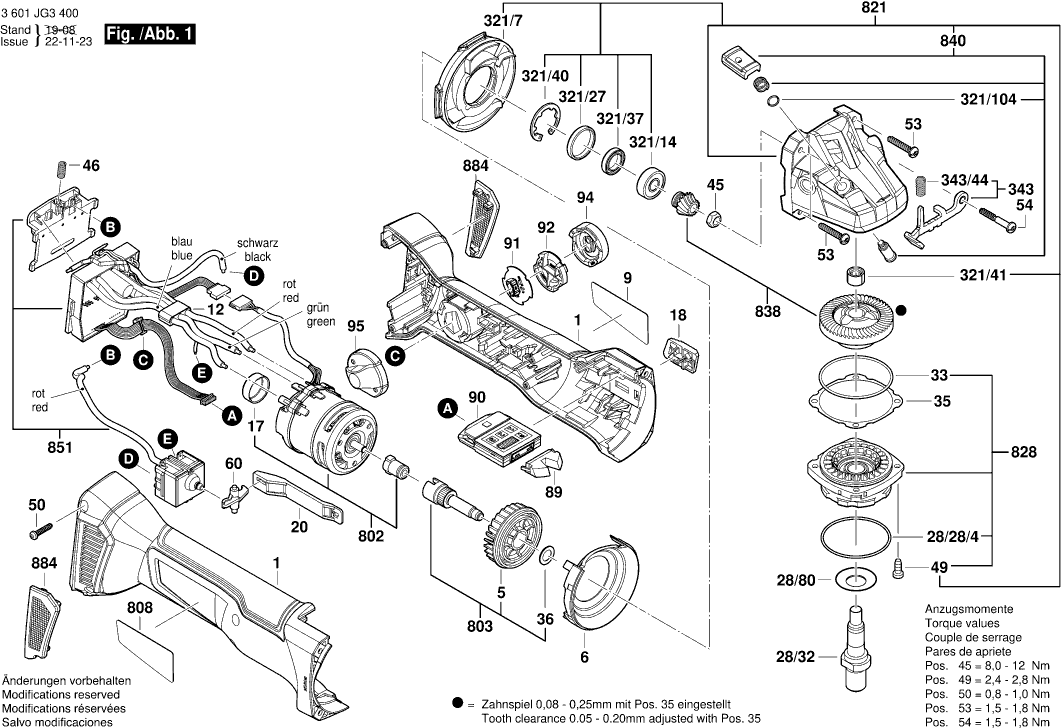

Technical drawing of model Bosch 3601JG3403 (GWS18V-115SC)
Spare parts list of model Bosch 3601JG3403 (GWS18V-115SC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 16051082DU | 21.30 | 25.77 | |
| Fan | ||||
| 5 | 160661016E | 2.86 | 3.46 | |
| Air-Deflector Ring | ||||
| 6 | 1600591065 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C1RC | 5.96 | 7.21 | |
| Ferrite | ||||
| 12 | 1600A00RK2 | 2.08 | 2.52 | |
| Cover | ||||
| 17 | 1600100P12 | 1.49 | 1.80 | |
| Switch Handle | ||||
| 18 | 1600A00P2P | 2.08 | 2.52 | |
| Adjusting Slide | ||||
| 20 | 1600A00P14 | 1.49 | 1.80 | |
| O-Ring | ||||
| 28/28/4 | 3600210109 | 2.08 | 2.52 | |
| Grinding Spindle | ||||
| 28/32 | 1607000D6A | 7.46 | 9.03 | |
| Cover Disc | ||||
| 28/80 | 1619P09390 | 2.08 | 2.52 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Washer | ||||
| 36 | 1610100023 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914491410 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 50 | 1603435071 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Reverse-Transfer Lever | ||||
| 60 | 1600A00P18 | 1.00 | 1.21 | |
| Light Conductor | ||||
| 89 | 1600A00P2M | 2.08 | 2.52 | |
| Speed governor | ||||
| 90 | 16072335LX | 27.81 | 33.65 | |
| Electronics Module | ||||
| 91 | 1607503438 | 13.13 | 15.89 | |
| Cover Panel | ||||
| 92 | 1600A00M53 | 1.00 | 1.21 | |
| Cover | ||||
| 94 | 16055002BV | 2.08 | 2.52 | |
| Cover | ||||
| 95 | 1600A00P1B | 1.00 | 1.21 | |
| O-Ring | ||||
| 321/104 | 1600210044 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 321/14 | 1600905032 | 5.81 | 7.03 | |
| Rubber Ring | ||||
| 321/27 | 1600206025 | 2.08 | 2.52 | |
| Holder | ||||
| 321/37 | 1600A00P17 | 1.00 | 1.21 | |
| Retaining clip | ||||
| 321/40 | 1600119011 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 321/41 | 1600200029 | 3.71 | 4.49 | |
| Air Distributor | ||||
| 321/7 | 1600591066 | 2.86 | 3.46 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 650/1 | 16020250A0 | 10.90 | 13.19 | |
| Round Nut | ||||
| 650/2 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 650/3 | 1607950052 | 3.44 | 4.16 | |
| Clamping Flange | ||||
| 650/5 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/5/2 | 1600210055 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Charger | ||||
| 652 | 2607225921 | 165.14 | 199.82 | |
| Battery Pack GBA 18V 8.0Ah ProCore SCM | ||||
| 653 | 1607A350AT | 244.89 | 296.32 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 653 | 2607337069 | 114.26 | 138.25 | |
| Motor | ||||
| 802 | 1607000CA4 | 102.63 | 124.18 | |
| Bevel Gear Shaft | ||||
| 803 | 1607000CA5 | 11.37 | 13.76 | |
| Nameplate | ||||
| 808 | 160111A4N7 | 2.18 | 2.64 | |
| Gear Housing | ||||
| 821 | 16058065S3 | 34.82 | 42.13 | |
| Bearing Flange | ||||
| 828 | 1607000D6D | 13.13 | 15.89 | |
| Gear Unit | ||||
| 838 | 1607000CA8 | 21.30 | 25.77 | |
| Push-Button | ||||
| 840 | 1607000V41 | 4.18 | 5.06 | |
| Electronics Module | ||||
| 851 | 1607000CH3 | 136.48 | 165.14 | |
| Filter Unit | ||||
| 884 | 1607000CA9 | 10.90 | 13.19 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 9.67 | 11.70 | |
| Fast Locking Flange | ||||
| 896 | 1600A016PP | 41.30 | 49.97 | |
