Here you will find all available parts and drawings of the 'Bosch 3601J3A300 ( GWS18V-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

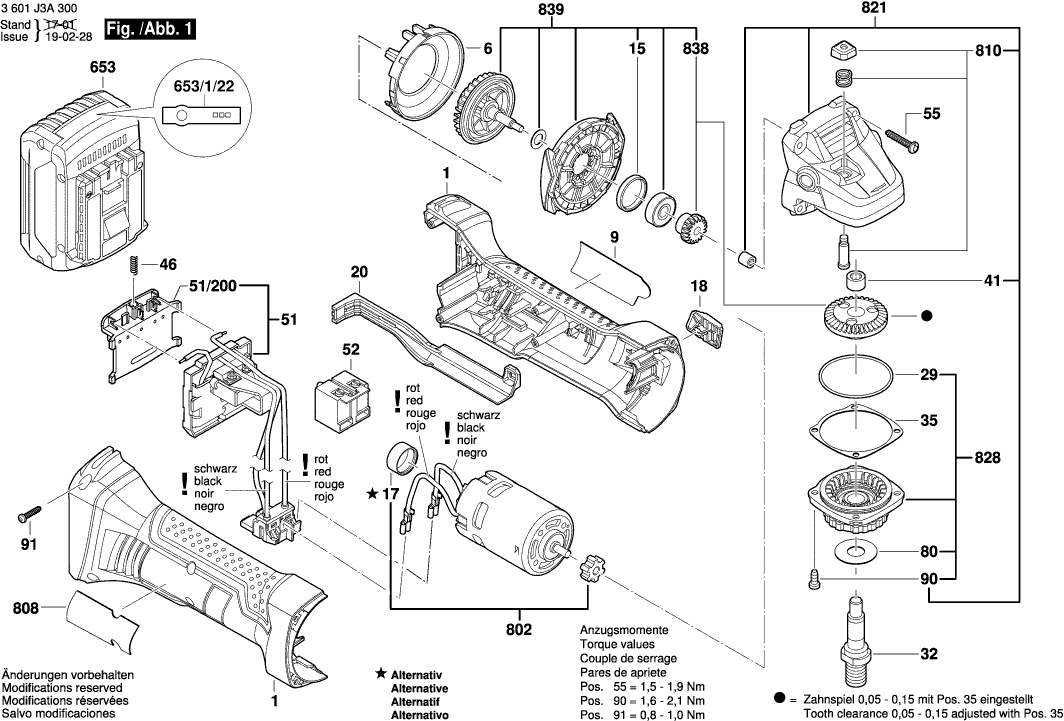

Technical drawing of model Bosch 3601J3A300 ( GWS18V-LI )
Spare parts list of model Bosch 3601J3A300 ( GWS18V-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 1605108282 | 18.19 | 22.01 | |
| Air-Deflector Ring | ||||
| 6 | 1600591046 | 1.94 | 2.35 | |
| Manufacturer's nameplate | ||||
| 9 | 1619P31072 | 1.94 | 2.35 | |
| Rubber Ring | ||||
| 15 | 1600206025 | 1.70 | 2.06 | |
| Cover | ||||
| 17 | 1600A001PY | 0.83 | 1.00 | |
| Switch Button | ||||
| 18 | 1619P02812 | 0.83 | 1.00 | |
| Adjusting Slide | ||||
| 20 | 1602319023 | 5.83 | 7.05 | |
| O-Ring 44,0x1,0 MM | ||||
| 29 | 1619P02820 | 1.18 | 1.43 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 5.83 | 7.05 | |
| Shim 0,2 MM | ||||
| 35 | 1619P02822 | 1.18 | 1.43 | |
| Shim 0,1 MM | ||||
| 35 | 1619P02821 | 0.83 | 1.00 | |
| Plain bearing | ||||
| 41 | 1600200029 | 2.24 | 2.71 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Electronics Module | ||||
| 51 | 1607233340 | 40.61 | 49.14 | |
| Contact retainer | ||||
| 51/200 | 1609280478 | 9.53 | 11.53 | |
| On-Off Switch | ||||
| 52 | 2607202071 | 12.41 | 15.02 | |
| Torx Oval-Head Screw 4x25 | ||||
| 55 | 2603490024 | 1.18 | 1.43 | |
| Cover Disc | ||||
| 80 | 1619P09390 | 1.70 | 2.06 | |
| Thread-forming tap. Screw DIN 7500, M4x10, SR10.2 | ||||
| 90 | 1603435068 | 1.18 | 1.43 | |
| Thread-forming tap. Screw | ||||
| 91 | 1603435071 | 0.83 | 1.00 | |
| Hex Screw Driver 4x95 | ||||
| 131 | 1619P01598 | 1.94 | 2.35 | |
| Protective Cover Ø115 MM SILVER | ||||
| 651 | 1600A00XU6 | 8.45 | 10.22 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 652 | 2607225923 | 113.29 | 137.08 | |
| Fast Charger AUS 240/10,8-18V, 30 MIN | ||||
| 652 | 2607225325 | 113.29 | 137.08 | |
| Charger EU GAL 1880 CV 230/14,4-18V | ||||
| 652 | 2607225921 | 101.94 | 123.35 | |
| Fast Charger 10,8V-18V EU | ||||
| 652 | 2607225423 | 63.33 | 76.63 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 652 | 2607225321 | 55.25 | 66.85 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 652 | 2607226281 | 55.25 | 66.85 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 653 | 2607337069 | 101.94 | 123.35 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 653 | 2607336815 | 91.56 | 110.79 | |
| Battery Pack 18V 3.0Ah Li SCM | ||||
| 653 | 1607A350B2 | 91.56 | 110.79 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 653 | 1607A350M0 | 91.56 | 110.79 | |
| Sticker | ||||
| 653/1/22 | 2601115537 | 1.18 | 1.43 | |
| DC motor 18V | ||||
| 802 | 16170006B0 | 73.72 | 89.20 | |
| Nameplate | ||||
| 808 | 160111A7PS | 1.94 | 2.35 | |
| Push Button | ||||
| 810 | 16170006B1 | 1.70 | 2.06 | |
| Gear Housing | ||||
| 821 | 16170006B2 | 44.82 | 54.23 | |
| Bearing Flange | ||||
| 828 | 16170006B3 | 9.53 | 11.53 | |
| Set Of Gearwheels | ||||
| 838 | 1600A00M8F | 13.93 | 16.86 | |
| Set Of Gearwheels | ||||
| 839 | 1600A00M8J | 26.84 | 32.48 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 7.58 | 9.17 | |
| Round Nut M14 | ||||
| 892 | 1603345043 | 6.54 | 7.91 | |
| Pin-Type Face-Wrench | ||||
| 893 | 1607950052 | 2.71 | 3.28 | |
| Clamping Flange Ø22,3xØ42 MM | ||||
| 895 | 2605703014 | 4.10 | 4.96 | |
| O-Ring 20,35x1,78 MM | ||||
| 895/20 | 1600210039 | 1.70 | 2.06 | |
