Here you will find all available parts and drawings of the 'Bosch 3601GA3100 ( GWS18-125PL )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

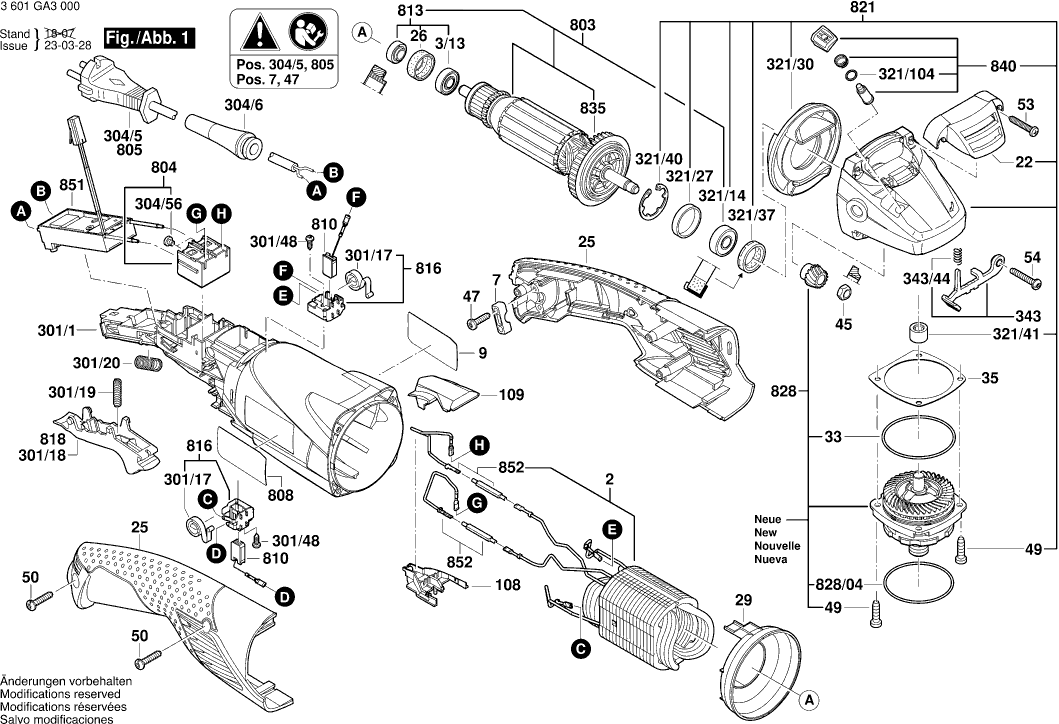

Technical drawing of model Bosch 3601GA3100 ( GWS18-125PL )

Spare parts list of model Bosch 3601GA3100 ( GWS18-125PL )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field
2 160422056P 26.84 32.48
Ball Bearing 7x19x6
3/13 2600905032 4.10 4.96
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate
9 160111C2EM 1.94 2.35
Covering hood
22 1605500260 2.71 3.28
Handle Cover BLUE
25 1605132010 11.88 14.37
Rubber Ring
26 1600206036 1.18 1.43
Grinding Spindle
28/32 1607000D6A 5.83 7.05
No information available, not orderable
28/80 3600150021
Air-Deflector Ring
29 1600591025 1.94 2.35
O-Ring 46,0x1,1 MM
33 1600210035 1.18 1.43
Shim 0,15 MM THICK
35 1600136020 2.71 3.28
Shim 0,1 MM THICK
35 1600136013 1.94 2.35
Shim 0,2 MM THICK
35 1600136014 1.94 2.35
Shim 0,3 MM THICK
35 1600136015 1.94 2.35
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Screw 4x16
47 2603490022 0.83 1.00
Thread-forming tap. Screw M4x16-St w/ Precote 85-
49 160343508X 0.83 1.00
Torx Oval-Head Screw 4x20
50 2603490023 0.83 1.00
Torx Oval-Head Screw
53 1603435078 0.83 1.00
Torx Oval-Head Screw 4x30
54 1603414026 0.83 1.00
Cover
108 1600A00XC4 1.18 1.43
Cover BLACK
109 1605500263 3.31 4.01
Motor Housing
301/1 16051082F0 13.93 16.86
Brush Holder
301/16 1601323029 1.10 1.33
Spiral Spring
301/17 1604652021 0.83 1.00
Adjusting Slide
301/18 1600A00XC7 1.70 2.06
Compression Spring
301/19 1604611041 1.18 1.43
Compression Spring
301/20 3604611039 1.18 1.43
Lens Head Screw 3x10 ST
301/48 1613435034 0.83 1.00
Power supply cord AR 4,15m 2 x 1,5mm H07 RN-F
304/5 1604460240 20.42 24.71
Lens Head Screw
304/56 1603415004 1.18 1.43
No longer available, no replacement
304/6 1600703040
O-Ring 4,5x1,0 MM BLUE
321/104 1600210044 0.83 1.00
groove ball bearing 8x22x7
321/14 1600905032 4.70 5.69
Rubber Ring
321/27 1600206025 1.70 2.06
Air-Deflector Ring
321/30 1600591014 1.94 2.35
Rotary shaft lip seal
321/37 1600290016 1.94 2.35
Retaining clip
321/40 1600119011 1.70 2.06
Plain bearing
321/41 1600200029 2.24 2.71
Catch Lever
343 1607000742 5.83 7.05
Compression Spring
343/44 1604611042 1.18 1.43
Protective Cover
651 1600A025XR 7.96 9.63
Armature
803 1604010B98 67.25 81.37
On-Off Switch
804 1607000D16 8.45 10.22
Power supply cord
805 1607000391 13.93 16.86
Nameplate
808 160111A3H3 1.94 2.35
Carbon Brush
810 1604321186 10.73 12.98
Carbon-Brush Set
810 1607000V53 10.73 12.98
Parts Set
813 1607000378 5.33 6.45
Brush Holder
816 1607000V54 2.24 2.71
Gear Housing
821 1607000D1F 29.75 36.00
Bearing Flange
828 1607000D62 26.84 32.48
O-Ring 47,0x1,5 MM
828/04 3600210109 1.70 2.06
Fan
835 1606610132 1.70 2.06
Gear Unit
838 1607000D4Y 12.41 15.02
Push-Button
840 1603231032 3.31 4.01
Speed governor
851 16072335M7 33.45 40.47
Connecting Cable
852 1604448025 1.70 2.06
O-Ring 20,35x1,78 MM
890 1600210039 1.70 2.06
Auxiliary Handle
891 16020250A0 8.45 10.22
Protective Cover
891 1600A025XP 7.58 9.17
Round Nut M14
892 1603345043 6.54 7.91
Pin-Type Face-Wrench
893 1607950052 2.71 3.28
Clamping Flange Ø22,3xØ42 MM
895 2605703014 4.10 4.96
Fast Locking Flange
896 1600A016PP 36.85 44.59
