Here you will find all available parts and drawings of the 'Bosch 3601GA3000 (GWS18-125L)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

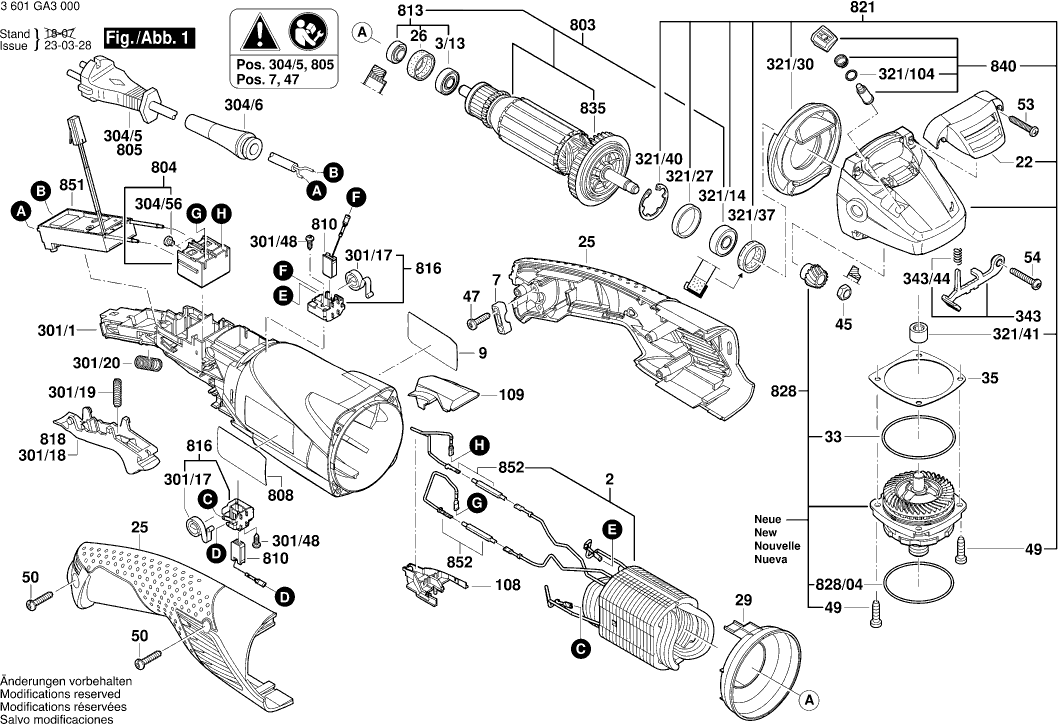

Technical drawing of model Bosch 3601GA3000 (GWS18-125L)
Spare parts list of model Bosch 3601GA3000 (GWS18-125L)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 160422056P | 30.08 | 36.40 | |
| Ball Bearing | ||||
| 3/13 | 2600905032 | 4.94 | 5.98 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C2EL | 2.18 | 2.64 | |
| Covering hood | ||||
| 22 | 1605500260 | 3.44 | 4.16 | |
| Handle Cover | ||||
| 25 | 1605132010 | 13.13 | 15.89 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.49 | 1.80 | |
| Grinding Spindle | ||||
| 28/32 | 1607000D6A | 7.46 | 9.03 | |
| No information available, not orderable | ||||
| 28/80 | 3600150021 | |||
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Screw | ||||
| 47 | 2603490022 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 160343508X | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Cover | ||||
| 108 | 1600A00XC4 | 1.49 | 1.80 | |
| Cover | ||||
| 109 | 1605500263 | 4.18 | 5.06 | |
| Motor Housing | ||||
| 301/1 | 16051082DR | 15.61 | 18.89 | |
| Brush Holder | ||||
| 301/16 | 1601323029 | 1.32 | 1.60 | |
| Spiral Spring | ||||
| 301/17 | 1604652021 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 301/18 | 1600A00XC7 | 1.90 | 2.30 | |
| Compression Spring | ||||
| 301/19 | 1604611041 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 301/20 | 3604611039 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 301/48 | 1613435034 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 304/56 | 1603415004 | 1.49 | 1.80 | |
| Grommet | ||||
| 304/6 | 1600703040 | 2.08 | 2.52 | |
| O-Ring | ||||
| 321/104 | 1600210044 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 321/14 | 1600905032 | 5.81 | 7.03 | |
| Rubber Ring | ||||
| 321/27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 321/30 | 1600591014 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 321/37 | 1600290016 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 321/40 | 1600119011 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 321/41 | 1600200029 | 3.71 | 4.49 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Armature | ||||
| 803 | 1604010B98 | 75.38 | 91.21 | |
| On-Off Switch | ||||
| 804 | 1607000D16 | 9.47 | 11.46 | |
| Power supply cord | ||||
| 805 | 1607000391 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon Brush | ||||
| 810 | 1604321186 | 11.02 | 13.33 | |
| Carbon-Brush Set | ||||
| 810 | 1607000V53 | 11.02 | 13.33 | |
| Parts Set | ||||
| 813 | 1607000378 | 6.73 | 8.14 | |
| Brush Holder | ||||
| 816 | 1607000V54 | 2.86 | 3.46 | |
| Gear Housing | ||||
| 821 | 1607000D1F | 34.82 | 42.13 | |
| Bearing Flange | ||||
| 828 | 1607000D62 | 31.42 | 38.02 | |
| Bearing Flange | ||||
| 828 | 1607000D6C | 11.37 | 13.76 | |
| O-Ring | ||||
| 828/04 | 3600210109 | 2.08 | 2.52 | |
| Fan | ||||
| 835 | 1616B00064 | 2.08 | 2.52 | |
| Gear Unit | ||||
| 838 | 1607000D4Y | 14.94 | 18.08 | |
| Push-Button | ||||
| 840 | 1603231032 | 4.18 | 5.06 | |
| Speed governor | ||||
| 851 | 16072335M7 | 37.50 | 45.38 | |
| Connecting Cable | ||||
| 852 | 1604448025 | 2.08 | 2.52 | |
| O-Ring | ||||
| 890 | 1600210039 | 2.08 | 2.52 | |
| Auxiliary Handle | ||||
| 891 | 16020250A0 | 10.90 | 13.19 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 9.67 | 11.70 | |
| Round Nut | ||||
| 892 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 893 | 1607950052 | 3.44 | 4.16 | |
| Clamping Flange | ||||
| 895 | 2605703014 | 7.53 | 9.11 | |
| SNELSPANMOER | ||||
| 896 | 1603340027 | 45.52 | 55.08 | |
| Fast Locking Flange | ||||
| 896 | 1600A016PP | 41.30 | 49.97 | |
