Here you will find all available parts and drawings of the 'Bosch 3601G96100 (GWS15-125CIEX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

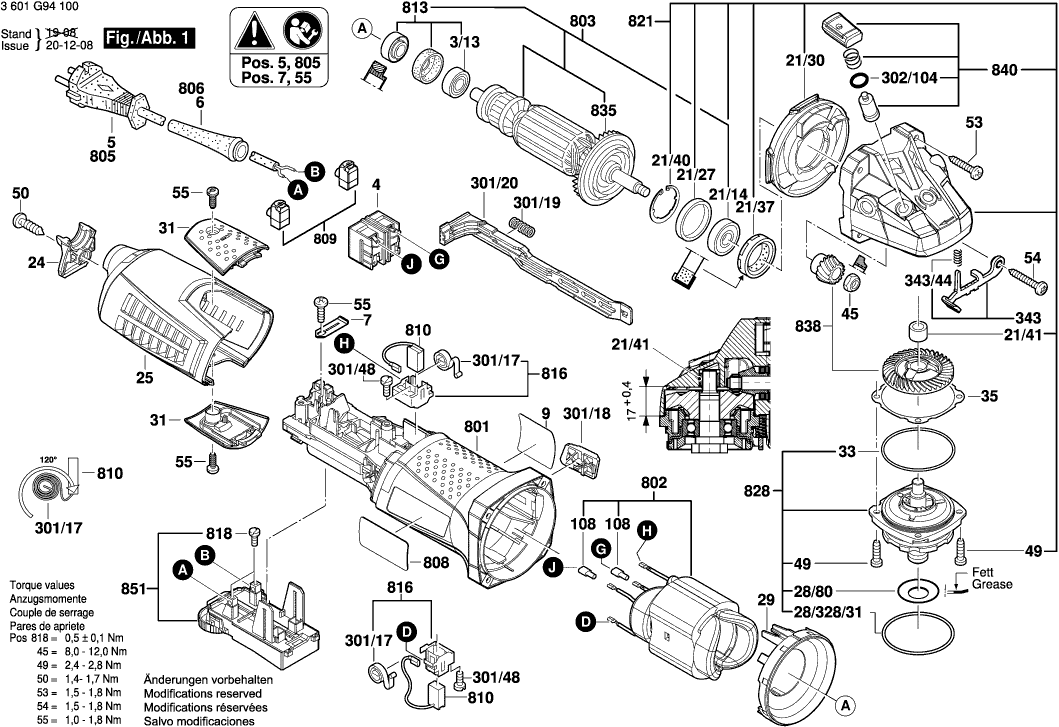

Technical drawing of model Bosch 3601G96100 (GWS15-125CIEX)
Spare parts list of model Bosch 3601G96100 (GWS15-125CIEX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ball Bearing | ||||
| 3/13 | 2600905032 | 4.94 | 5.98 | |
| Switch | ||||
| 4 | 1607200256 | 11.37 | 13.76 | |
| Switch | ||||
| 4 | 160720035A | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 1600703043 | 2.40 | 2.90 | |
| Grommet | ||||
| 6 | 160070304D | 1.49 | 1.80 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate GWS 15-125 CIEX | ||||
| 9 | 160111C01X | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 21/14 | 1600905032 | 5.81 | 7.03 | |
| Rubber Ring | ||||
| 21/27 | 1600206025 | 2.08 | 2.52 | |
| Air Distributor | ||||
| 21/30 | 1600591048 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 21/37 | 1600290016 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 21/40 | 1600119011 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 21/41 | 1600200029 | 3.71 | 4.49 | |
| Cover | ||||
| 24 | 1605500275 | 2.86 | 3.46 | |
| Housing Cover | ||||
| 25 | 1605500276 | 8.35 | 10.10 | |
| O-Ring | ||||
| 28/328/31 | 3600210109 | 2.08 | 2.52 | |
| Cover Disc | ||||
| 28/80 | 1619P09390 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591047 | 2.08 | 2.52 | |
| Brush-Cover | ||||
| 31 | 1600A01M0M | 3.44 | 4.16 | |
| Brush-Cover | ||||
| 31 | 1605500277 | 2.08 | 2.52 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 160343508X | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914491410 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 55 | 2603490021 | 1.00 | 1.21 | |
| Insulating Part | ||||
| 108 | 1600712030 | 1.49 | 1.80 | |
| Motor Housing | ||||
| 301/1 | 1605108283 | 13.90 | 16.82 | |
| Spiral Spring | ||||
| 301/17 | 1604652021 | 1.00 | 1.21 | |
| Switch Handle | ||||
| 301/18 | 1602026091 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 301/19 | 1604611031 | 2.52 | 3.05 | |
| Adjusting Slide | ||||
| 301/20 | 1602319025 | 2.08 | 2.52 | |
| Adjusting Slide | ||||
| 301/20 | 1602319026 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 301/48 | 1613435034 | 1.00 | 1.21 | |
| O-Ring | ||||
| 302/104 | 1600210044 | 1.00 | 1.21 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 650/1 | 16020250A0 | 10.90 | 13.19 | |
| Round Nut | ||||
| 650/2 | 1600A001PG | 2.40 | 2.90 | |
| Pin-Type Face-Wrench | ||||
| 650/3 | 1607950052 | 3.44 | 4.16 | |
| Clamping Flange | ||||
| 650/5 | 2605703014 | 7.53 | 9.11 | |
| O-Ring | ||||
| 650/5/2 | 1600210055 | 1.00 | 1.21 | |
| Fast Locking Flange | ||||
| 650/6 | 1600A016PU | 43.12 | 52.18 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Motor Housing | ||||
| 801 | 1607000CY2 | 16.79 | 20.32 | |
| Field assembly | ||||
| 802 | 1604220532 | 23.90 | 28.92 | |
| Armature With Fan | ||||
| 803 | 1607000V35 | 61.93 | 74.94 | |
| Power supply cord | ||||
| 805 | 1607000392 | 21.30 | 25.77 | |
| Nameplate | ||||
| 808 | 160111A3HH | 2.40 | 2.90 | |
| Seal | ||||
| 809 | 1607000D9C | 1.49 | 1.80 | |
| Carbon-Brush Set | ||||
| 810 | 1607000V37 | 13.13 | 15.89 | |
| groove ball bearing | ||||
| 813 | 1607000V38 | 7.46 | 9.03 | |
| Brush Holder | ||||
| 816 | 1607000V43 | 3.44 | 4.16 | |
| Pan head screw | ||||
| 818 | 1607000V42 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 821 | 1605806559 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 828 | 1607000D67 | |||
| Fan | ||||
| 835 | 1606610132 | 2.08 | 2.52 | |
| Fan | ||||
| 835 | 1616B00064 | 2.08 | 2.52 | |
| Gear Unit | ||||
| 838 | 1600A001X6 | 31.42 | 38.02 | |
| Push-Button | ||||
| 840 | 1607000V41 | 4.18 | 5.06 | |
| Speed governor | ||||
| 851 | 1607000DA2 | 52.45 | 63.46 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 891 | 160202509T | 3.44 | 4.16 | |
