Here you will find all available parts and drawings of the 'Bosch 3601G96200 ( GWS15-125CIEP )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

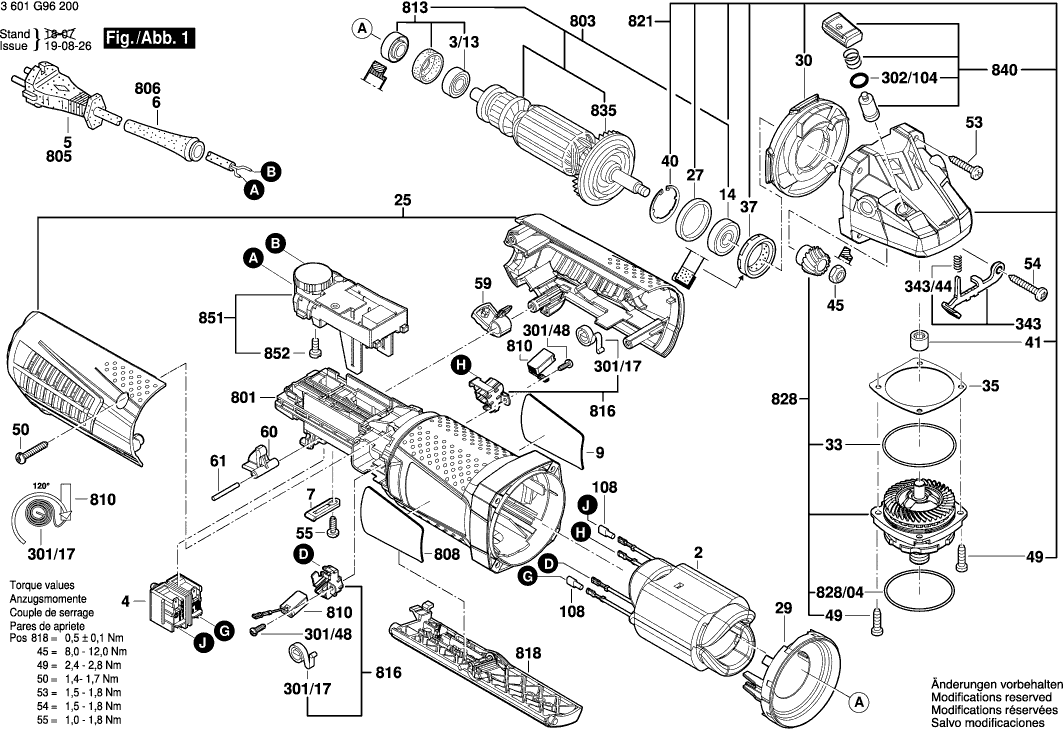

Technical drawing of model Bosch 3601G96200 ( GWS15-125CIEP )

Spare parts list of model Bosch 3601G96200 ( GWS15-125CIEP )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field
2 1607000F0B 23.75 28.74
Field
2 1604220478 22.36 27.06
Ball Bearing 7x19x6
3/13 2600905032 4.10 4.96
Switch
4 1607200256 9.53 11.53
Switch
4 160720035A 8.45 10.22
Grommet
6 1600703043 1.94 2.35
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate GWS 15-125 CIEP
9 160111C00C 1.94 2.35
groove ball bearing 8x22x7
14 1600905032 4.70 5.69
Housing Section
25 1605108292 7.58 9.17
Rubber Ring
27 1600206025 1.70 2.06
Air-Deflector Ring
29 1600591047 1.70 2.06
Air Distributor
30 1600591048 1.94 2.35
Grinding Spindle
32 1607000D6A 5.83 7.05
O-Ring 46,0x1,1 MM
33 1600210035 1.18 1.43
Shim 0,15 MM THICK
35 1600136020 2.71 3.28
Shim 0,1 MM THICK
35 1600136013 1.94 2.35
Shim 0,2 MM THICK
35 1600136014 1.94 2.35
Shim 0,3 MM THICK
35 1600136015 1.94 2.35
Rotary shaft lip seal
37 1600290016 1.94 2.35
Retaining clip
40 1600119011 1.70 2.06
Plain bearing
41 1600200029 2.24 2.71
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Thread-forming tap. Screw M4x16
49 2914491410 0.83 1.00
Torx Oval-Head Screw
50 1603435078 0.83 1.00
Torx Oval-Head Screw
53 1603435078 0.83 1.00
Torx Oval-Head Screw 4x30
54 1603414026 0.83 1.00
Torx Oval-Head Screw 4x12
55 2603490021 0.83 1.00
Plug
59 1600591054 0.83 1.00
Reverse-Transfer Lever
60 1602026095 0.83 1.00
Straight Pin
61 1600A00X5A 0.83 1.00
No information available, not orderable
80 3600150021
Insulating Part
108 1600712030 1.18 1.43
Motor Housing
301/1 1605108291 11.68 14.13
Spiral Spring
301/17 1604652021 0.83 1.00
Lens Head Screw 3x10 ST
301/48 1613435034 0.83 1.00
O-Ring 4,5x1,0 MM BLUE
302/104 1600210044 0.83 1.00
Catch Lever
343 1607000742 5.83 7.05
Compression Spring
343/44 1604611042 1.18 1.43
Auxiliary Handle
650/1 16020250A0 8.45 10.22
Round Nut M14
650/2 1603345043 6.54 7.91
Pin-Type Face-Wrench
650/3 1607950052 2.71 3.28
Clamping Flange Ø22,3xØ42 MM
650/5 2605703014 4.10 4.96
No information available, not orderable
650/5/2 1600210055
Protective Cover
651 1600A025XR 7.96 9.63
Motor Housing
801 1607000D99 11.88 14.37
Armature With Fan 230V
803 1607000V35 55.25 66.85
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000392 15.71 19.01
Nameplate
808 160111A3HK 1.94 2.35
Carbon-Brush Set
810 1607000V37 11.88 14.37
groove ball bearing
813 1607000V38 5.83 7.05
Brush Holder
816 1607000V43 2.71 3.28
Switch-Pawl
818 1607000504 7.58 9.17
Gear Housing
821 1607000V40 20.42 24.71
Bearing Flange
828 1607000D62 26.84 32.48
O-Ring 47,0x1,5 MM
828/04 3600210109 1.70 2.06
Fan
835 1606610132 1.70 2.06
Gear Unit
838 1607000D4Y 12.41 15.02
Push-Button
840 1607000V41 3.31 4.01
Speed governor
851 1607000DB5 49.56 59.97
Pan head screw
852 1607000V42 0.83 1.00
Protective Cover
891 1600A025XP 7.58 9.17
Fast Locking Flange
896 1600A016PP 36.85 44.59
