Here you will find all available parts and drawings of the 'Bosch 0601934421 ( GWS14,4V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

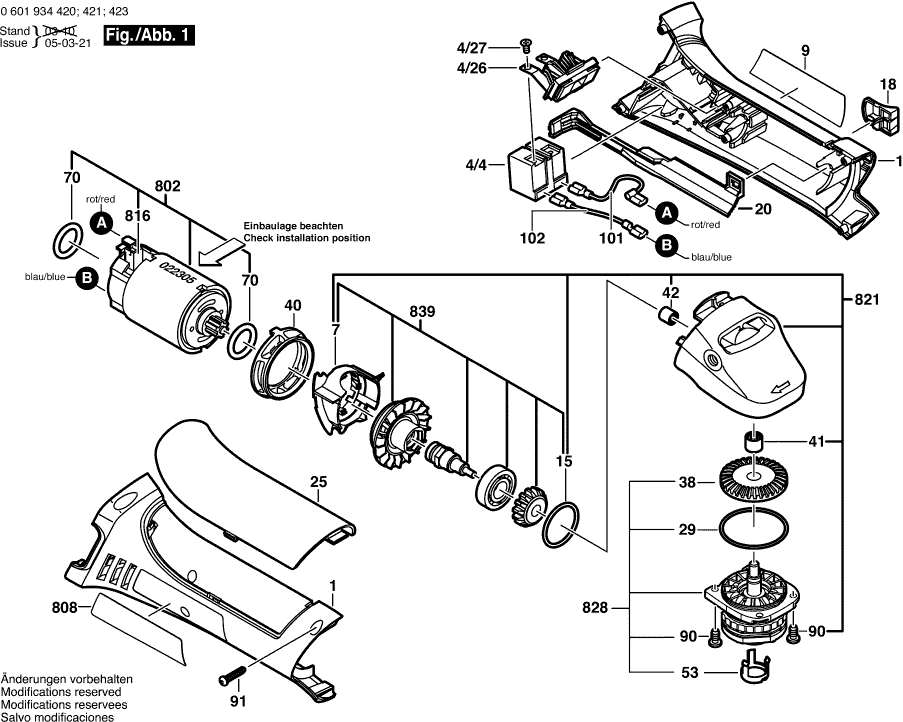

Technical drawing of model Bosch 0601934421 ( GWS14,4V )
Spare parts list of model Bosch 0601934421 ( GWS14,4V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 1605108231 | 8.45 | 10.22 | |
| Contact retainer | ||||
| 4/26 | 1618900002 | 5.83 | 7.05 | |
| Lens Head Screw | ||||
| 4/27 | 1603415004 | 1.18 | 1.43 | |
| Switch | ||||
| 4/4 | 2607200462 | 6.54 | 7.91 | |
| Air-Deflector Ring | ||||
| 7 | 1600591037 | 2.24 | 2.71 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118A59 | 1.70 | 2.06 | |
| O-Ring 27,5x1,5 MM | ||||
| 15 | 1600210047 | 0.83 | 1.00 | |
| Ratchet Cap | ||||
| 18 | F016F05700 | 1.00 | 1.21 | |
| Adjusting Slide BLACK | ||||
| 20 | 1602319017 | 3.31 | 4.01 | |
| Housing Cover | ||||
| 25 | 1605500237 | 5.83 | 7.05 | |
| No longer available, no replacement | ||||
| 29 | 1600210050 | |||
| Crown Gear | ||||
| 38 | 1606333269 | 8.45 | 10.22 | |
| Anti-Twist Lock | ||||
| 40 | 1600290051 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 41 | 1610910064 | |||
| Needle bearing | ||||
| 42 | 2600917013 | 2.24 | 2.71 | |
| Push-Button | ||||
| 53 | 1603231023 | 1.18 | 1.43 | |
| O-Ring 17,0x3,0 MM | ||||
| 70 | 1600210049 | 0.83 | 1.00 | |
| Thread-forming tap. Screw | ||||
| 90 | 1603435070 | 0.83 | 1.00 | |
| Thread-forming tap. Screw | ||||
| 91 | 1603435071 | 0.83 | 1.00 | |
| Connecting Cable RED | ||||
| 101 | 1604448020 | 0.83 | 1.00 | |
| Connecting Cable BLUE | ||||
| 102 | 1604448021 | 1.70 | 2.06 | |
| Protective Cover | ||||
| 650 | 1600A025XP | 7.58 | 9.17 | |
| Protective Cover Ø 100 MM | ||||
| 651 | 1605510370 | 11.88 | 14.37 | |
| Slide-In Battery Pack 14,4V, 2,0Ah, NiMH | ||||
| 653 | 2607335699 | 168.86 | 204.32 | |
| Slide-In Accu Package 14,4V, 2,6Ah, NiMH | ||||
| 653 | 2607335685 | 113.29 | 137.08 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 654 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger USA 120/7,2-24V, 1h | ||||
| 654 | 2607224431 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 654 | 2607224701 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-14,4V, 30 MIN. | ||||
| 654 | 2607224703 | 101.94 | 123.35 | |
| Fast Charger J 100/7,2-14,4V, 30 MIN. | ||||
| 654 | 2607224711 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 654 | 2607224427 | 91.56 | 110.79 | |
| DC motor 14,4V | ||||
| 802 | 1607000A26 | 81.47 | 98.58 | |
| Nameplate | ||||
| 808 | 1601118A60 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 816 | 2607034902 | |||
| Gear Housing | ||||
| 821 | 1607000A27 | 55.25 | 66.85 | |
| Bearing Flange | ||||
| 828 | 1607000A32 | 23.75 | 28.74 | |
| Bevel Gear Z=22 | ||||
| 839 | 1607000A30 | 20.42 | 24.71 | |
