Here you will find all available parts and drawings of the 'Bosch 0601706703 (GWS14-150C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

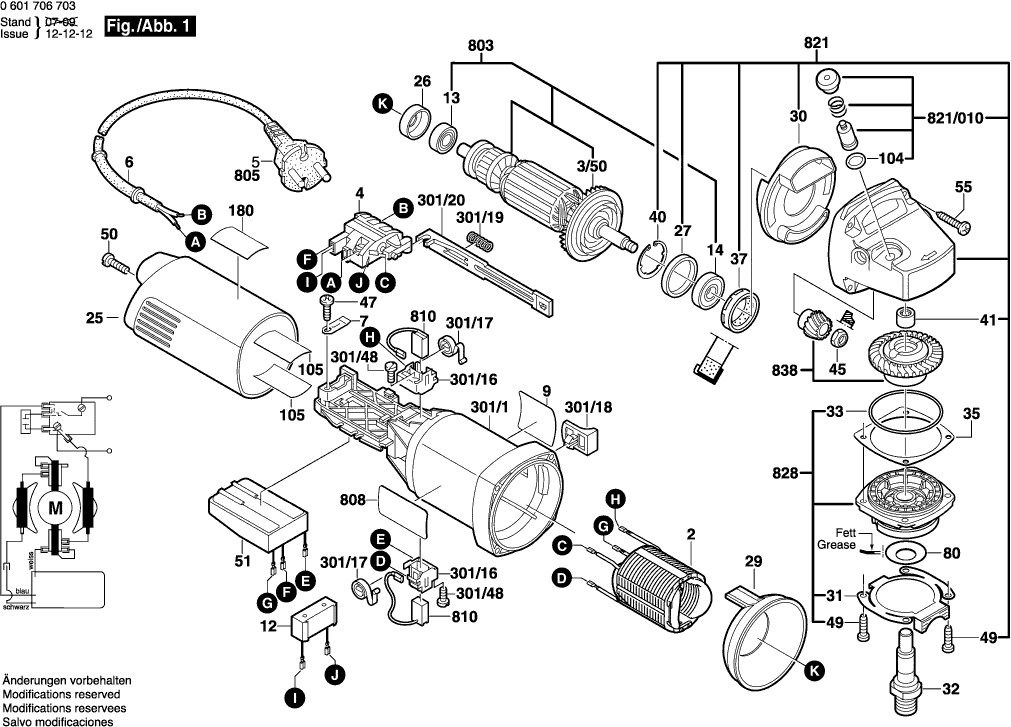

Technical drawing of model Bosch 0601706703 (GWS14-150C)
Spare parts list of model Bosch 0601706703 (GWS14-150C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1607000F0S | 34.82 | 42.13 | |
| Fan | ||||
| 3/50 | 1606610132 | 2.08 | 2.52 | |
| Fan | ||||
| 3/50 | 1616B00064 | 2.08 | 2.52 | |
| Switch | ||||
| 4 | 1607200137 | 11.37 | 13.76 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 2600703013 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118A78 | 1.90 | 2.30 | |
| Suppression Filter | ||||
| 12 | 1607328042 | 6.73 | 8.14 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1600905032 | 5.81 | 7.03 | |
| Housing Cover | ||||
| 25 | 1600508017 | 5.27 | 6.38 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| Air-Deflector Ring | ||||
| 30 | 1600591014 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 31 | 1601290007 | |||
| Grinding Spindle | ||||
| 32 | 1607000D6A | 7.46 | 9.03 | |
| O-Ring | ||||
| 33 | 3600210124 | 2.86 | 3.46 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 41 | 1600910018 | 4.94 | 5.98 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 47 | 2912401018 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435026 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 50 | 2912401420 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 51 | 1607233107 | |||
| Oval-Head Screw | ||||
| 55 | 1603415005 | 0.83 | 1.00 | |
| Cover Disc | ||||
| 80 | 1619P09390 | 2.08 | 2.52 | |
| O-Ring | ||||
| 104 | 1600210044 | 1.00 | 1.21 | |
| Insulating Plate | ||||
| 105 | 1601008005 | 4.94 | 5.98 | |
| Motor Housing | ||||
| 301/1 | 1605108208 | 10.90 | 13.19 | |
| Brush Holder | ||||
| 301/16 | 1601323025 | 3.44 | 4.16 | |
| Spiral Spring | ||||
| 301/17 | 1604652013 | 1.49 | 1.80 | |
| Switch Handle | ||||
| 301/18 | 1602026057 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 301/19 | 1619P09932 | 1.28 | 1.55 | |
| Compression Spring | ||||
| 301/19 | 1604611026 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 301/20 | 1602319011 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 301/48 | 2912401005 | 1.00 | 1.21 | |
| O-Ring | ||||
| 650/50/20 | 1600210039 | 2.08 | 2.52 | |
| Protective Cover | ||||
| 750/10 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 750/10 | 160202509T | 3.44 | 4.16 | |
| Clamping Nut | ||||
| 750/20 | 1603340040 | 1.00 | 1.21 | |
| Pin-Type Face-Wrench | ||||
| 750/30 | 1607950043 | 1.00 | 1.21 | |
| Clamping-Flange | ||||
| 750/50 | 1605703099 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 751 | 2605510100 | |||
| SNELSPANMOER | ||||
| 752 | 1603340027 | 45.52 | 55.08 | |
| Fast Locking Flange | ||||
| 752 | 1600A016PP | 41.30 | 49.97 | |
| No longer available, no replacement | ||||
| 753 | 1605438100 | |||
| Armature With Fan | ||||
| 803 | 1604010654 | 88.83 | 107.48 | |
| Power supply cord | ||||
| 805 | 1607000228 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 12.82 | 15.51 | |
| Gear Housing | ||||
| 821 | 1605806451 | 39.14 | 47.36 | |
| Push-Button | ||||
| 821/010 | 1607000253 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 828 | 1605805082 | |||
| Gear Unit | ||||
| 838 | 1607000D4Z | 18.94 | 22.92 | |
