Here you will find all available parts and drawings of the 'Bosch 3601H24804 ( GWS14-125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

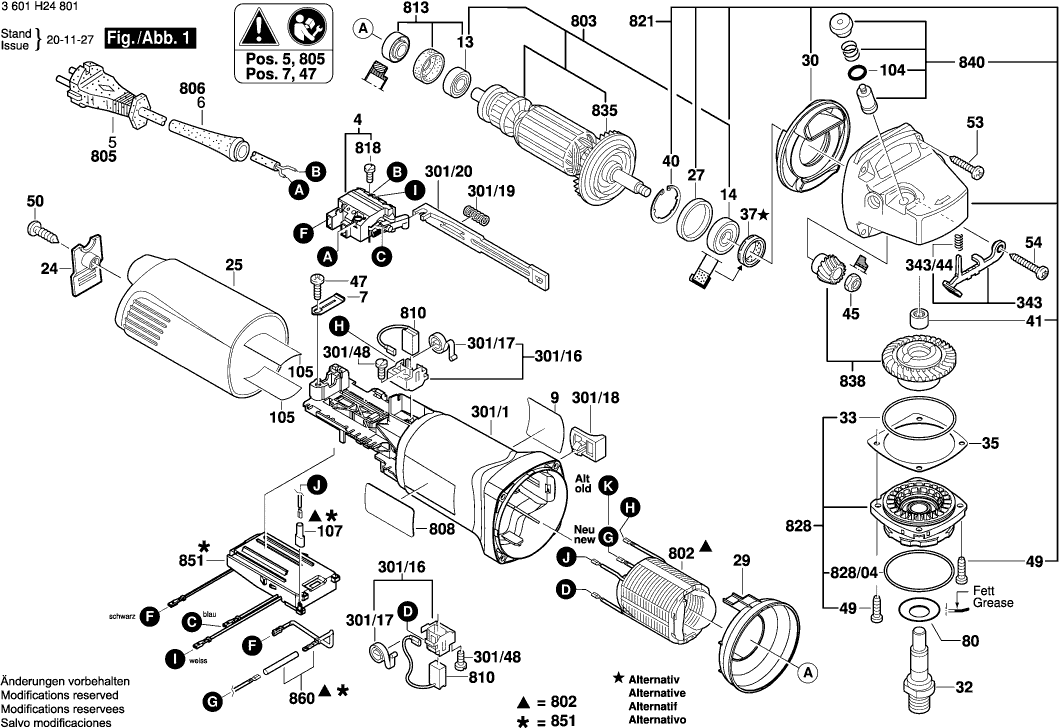

Technical drawing of model Bosch 3601H24804 ( GWS14-125 )

Spare parts list of model Bosch 3601H24804 ( GWS14-125 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Switch
4 1607200200 9.53 11.53
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate
9 160111C427 1.94 2.35
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
groove ball bearing 8x22x7
14 1600905032 4.70 5.69
Cover BLUE
24 1605500228 2.24 2.71
Housing Cover DARK BLUE
25 1605500251 5.83 7.05
Rubber Ring
27 1600206025 1.70 2.06
Air-Deflector Ring
29 1600591025 1.94 2.35
Air-Deflector Ring
30 1600591014 1.94 2.35
Grinding Spindle
32 1607000D6A 5.83 7.05
O-Ring 46,0x1,1 MM
33 1600210035 1.18 1.43
Shim 0,15 MM THICK
35 1600136020 2.71 3.28
Shim 0,1 MM THICK
35 1600136013 1.94 2.35
Shim 0,2 MM THICK
35 1600136014 1.94 2.35
Shim 0,3 MM THICK
35 1600136015 1.94 2.35
Retaining clip
40 1600119011 1.70 2.06
Plain bearing
41 1600200029 2.24 2.71
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Torx Oval-Head Screw 4x12
47 2603490021 0.83 1.00
Thread-forming tap. Screw M4x16
49 2914491410 0.83 1.00
Thread-forming tap. Screw M4x16-St w/ Precote 85-
49 160343508X 0.83 1.00
Torx Oval-Head Screw 4x20
50 2603490023 0.83 1.00
Torx Oval-Head Screw
53 1603435078 0.83 1.00
Torx Oval-Head Screw 4x30
54 1603414026 0.83 1.00
Cover Disc
80 1619P09390 1.70 2.06
O-Ring 4,5x1,0 MM BLUE
104 1600210044 0.83 1.00
Insulating Plate
105 1601008005 2.24 2.71
Insulating Part
107 1600712030 1.18 1.43
Motor Housing DARK BLUE
301/1 1605108249 8.45 10.22
Brush Holder
301/16 1601323025 2.71 3.28
Spiral Spring
301/17 1604652013 1.18 1.43
Switch Handle
301/18 1602026088 0.83 1.00
Compression Spring
301/19 1604611026 0.83 1.00
Adjusting Slide
301/20 1602319011 1.18 1.43
Lens Head Screw 3x10 ST
301/48 1613435034 0.83 1.00
Catch Lever
343 1607000742 5.83 7.05
Compression Spring
343/44 1604611042 1.18 1.43
Protective Cover
651 1600A025XR 7.96 9.63
Field 220-240V
802 1607000397 26.84 32.48
Armature With Fan 230V
803 1604010A90 29.75 36.00
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000392 15.71 19.01
No longer available, no replacement
806 1600703040
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set Kohlebürstensatz 10 x 1 607 014
810 1607000482 91.56 110.79
Carbon-Brush Set
810 1607014176 10.73 12.98
Parts Set
813 1607000378 5.33 6.45
Pan head screw DIN 85-AM3x6-CUZN
818 2910110048 0.83 1.00
Gear Housing
821 16058065SC 18.19 22.01
No information available, not orderable
828 1607000D6C
O-Ring 47,0x1,5 MM
828/04 3600210109 1.70 2.06
Spring Element
828/04 1601290013 0.83 1.00
Fan
835 1606610132 1.70 2.06
Gear Unit
838 1607000D4Y 12.41 15.02
Push-Button
840 1607000A71 2.71 3.28
Speed governor 220-240V
851 1607233291 23.75 28.74
Connecting Cable
860 1604448023 1.18 1.43
O-Ring 20,35x1,78 MM
890 1600210039 1.70 2.06
Auxiliary Handle
891 16020250A0 8.45 10.22
Protective Cover
891 1600A025XP 7.58 9.17
Round Nut M14
892 1603345043 6.54 7.91
Pin-Type Face-Wrench
893 1607950052 2.71 3.28
Clamping Flange Ø22,3xØ42 MM
895 2605703014 4.10 4.96
Fast Locking Flange
896 1600A016PP 36.85 44.59
Grease Tube 225 ML
897 1605430003 29.75 36.00
Grease Tube 225 ML
898 1615430020 15.71 19.01
Oil 1000 ML
899 3605430008 23.75 28.74
