Here you will find all available parts and drawings of the 'Bosch 3601G93300 ( GWS12-125CIPX )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

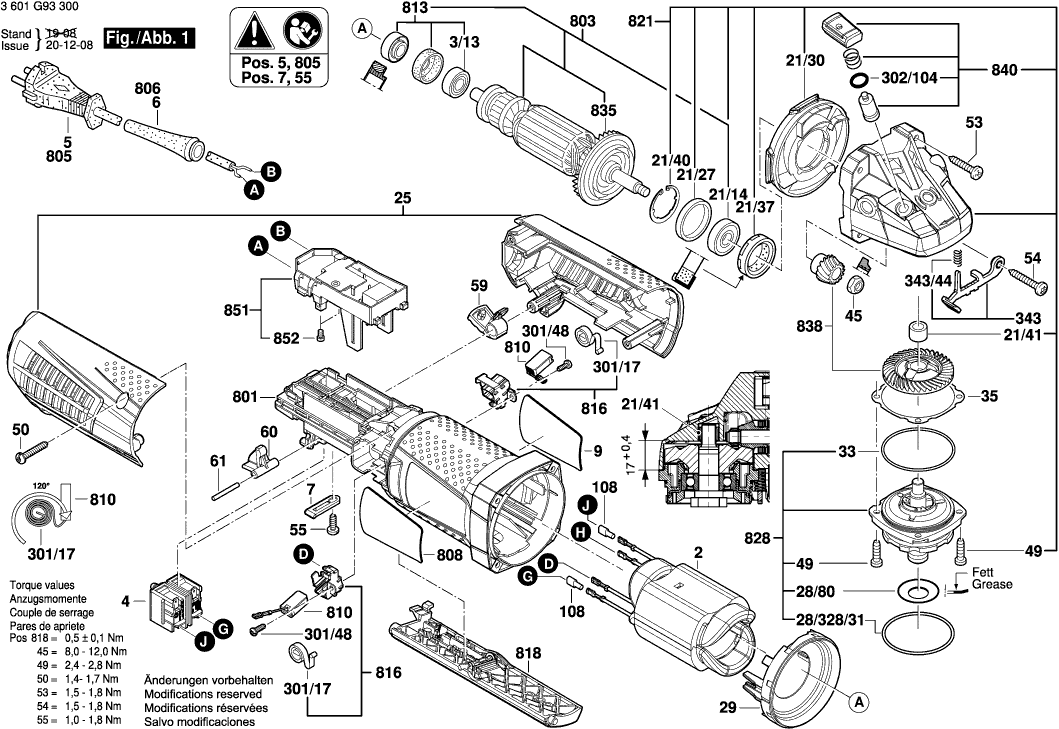

Technical drawing of model Bosch 3601G93300 ( GWS12-125CIPX )

Spare parts list of model Bosch 3601G93300 ( GWS12-125CIPX )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230V
2 1604220475 26.84 32.48
Ball Bearing 7x19x6
3/13 2600905032 4.10 4.96
Switch
4 1607200256 9.53 11.53
Switch
4 160720035A 8.45 10.22
Grommet
6 1600703043 1.94 2.35
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate GWS 12-125 CIPX
9 160111C01U 0.83 1.00
groove ball bearing 8x22x7
21/14 1600905032 4.70 5.69
Rubber Ring
21/27 1600206025 1.70 2.06
Air Distributor
21/30 1600591048 1.94 2.35
Rotary shaft lip seal
21/37 1600290016 1.94 2.35
Retaining clip
21/40 1600119011 1.70 2.06
Plain bearing
21/41 1600200029 2.24 2.71
Housing Section
25 160510829A 5.83 7.05
O-Ring 47,0x1,5 MM
28/328/31 3600210109 1.70 2.06
Cover Disc
28/80 1619P09390 1.70 2.06
Air-Deflector Ring
29 1600591047 1.70 2.06
O-Ring 46,0x1,1 MM
33 1600210035 1.18 1.43
Shim 0,15 MM THICK
35 1600136020 2.71 3.28
Shim 0,1 MM THICK
35 1600136013 1.94 2.35
Shim 0,2 MM THICK
35 1600136014 1.94 2.35
Shim 0,3 MM THICK
35 1600136015 1.94 2.35
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Thread-forming tap. Screw M4x16
49 2914491410 0.83 1.00
Torx Oval-Head Screw 4x20
50 2603490023 0.83 1.00
Torx Oval-Head Screw
53 1603435078 0.83 1.00
Torx Oval-Head Screw 4x30
54 1603414026 0.83 1.00
Torx Oval-Head Screw 4x12
55 2603490021 0.83 1.00
Plug
59 1600591054 0.83 1.00
Reverse-Transfer Lever
60 1602026095 0.83 1.00
Straight Pin
61 1600A00X5A 0.83 1.00
Insulating Part
108 1600712030 1.18 1.43
Motor Housing
301/1 1605108293 10.10 12.22
Spiral Spring
301/17 1604652021 0.83 1.00
Lens Head Screw 3x10 ST
301/48 1613435034 0.83 1.00
O-Ring 4,5x1,0 MM BLUE
302/104 1600210044 0.83 1.00
Catch Lever
343 1607000742 5.83 7.05
Compression Spring
343/44 1604611042 1.18 1.43
Auxiliary Handle
650/1 16020250A0 8.45 10.22
Round Nut
650/2 1600A001PG 1.94 2.35
Pin-Type Face-Wrench
650/3 1607950052 2.71 3.28
Clamping Flange Ø22,3xØ42 MM
650/5 2605703014 4.10 4.96
No information available, not orderable
650/5/2 1600210055
Fast Locking Flange
650/6 1600A016PU 36.85 44.59
Protective Cover
651 1600A025XR 7.96 9.63
Motor Housing
801 1607000D98 9.53 11.53
Armature With Fan 230V
803 1607000V33 49.56 59.97
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000392 15.71 19.01
Nameplate
808 160111A3HJ 1.94 2.35
Carbon-Brush Set
810 1607000V37 11.88 14.37
groove ball bearing
813 1607000V38 5.83 7.05
Brush Holder
816 1607000V43 2.71 3.28
Switch-Pawl
818 1607000504 7.58 9.17
Gear Housing
821 1605806559 23.75 28.74
No longer available, no replacement
828 1607000D67
Fan
835 1606610132 1.70 2.06
Gear Unit
838 1600A001X6 26.84 32.48
Push-Button
840 1607000V41 3.31 4.01
Speed governor
851 1607000D9Z 33.45 40.47
Pan head screw
852 1607000V42 0.83 1.00
Protective Cover
891 1600A025XP 7.58 9.17
