Here you will find all available parts and drawings of the 'Bosch 3601H30100 (GWS11-125CIH)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

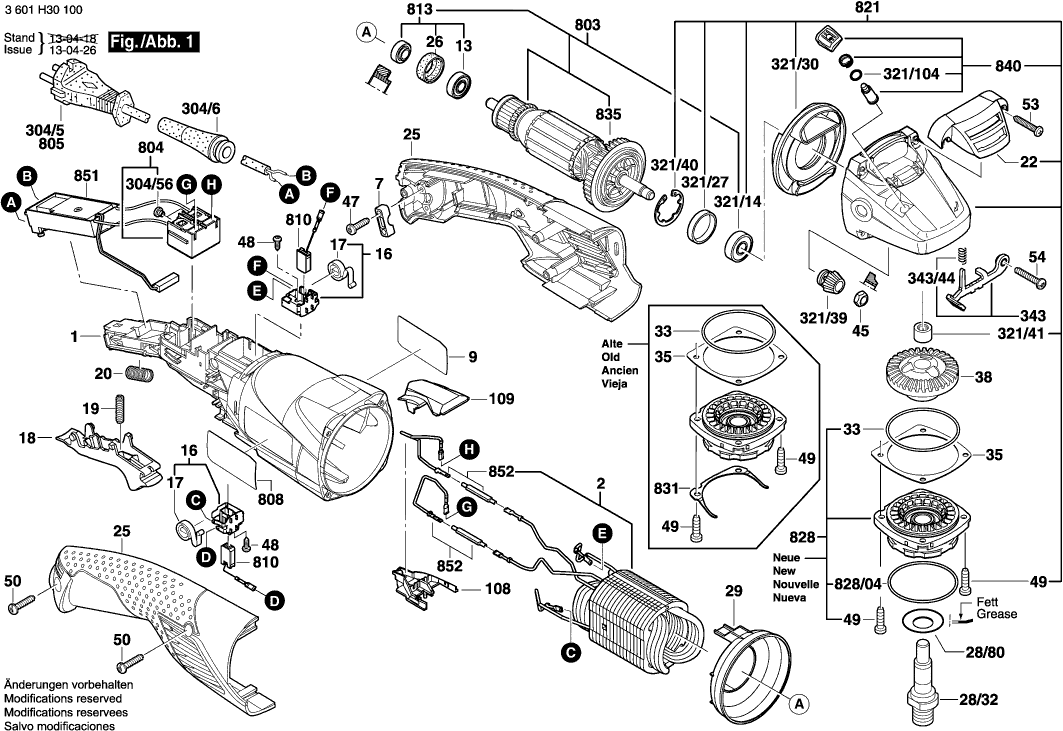

Technical drawing of model Bosch 3601H30100 (GWS11-125CIH)
Spare parts list of model Bosch 3601H30100 (GWS11-125CIH)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1605108256 | 16.79 | 20.32 | |
| Field | ||||
| 2 | 1604220416 | 31.42 | 38.02 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118K42 | 1.49 | 1.80 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| Brush Holder | ||||
| 16 | 1601323025 | 3.44 | 4.16 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Adjusting Slide | ||||
| 18 | 1602319024 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 19 | 1604611041 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 20 | 3604611039 | 1.49 | 1.80 | |
| Covering hood | ||||
| 22 | 1605500260 | 3.44 | 4.16 | |
| Handle Cover | ||||
| 25 | 1605132010 | 13.13 | 15.89 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.49 | 1.80 | |
| Grinding Spindle | ||||
| 28/32 | 1607000D6A | 7.46 | 9.03 | |
| Cover Disc | ||||
| 28/80 | 1619P09390 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 38 | 1606333616 | |||
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Screw | ||||
| 47 | 2603490022 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 48 | 1613435034 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914491410 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 1603414026 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 54 | 2914491410 | 1.00 | 1.21 | |
| Cover | ||||
| 108 | 1600A00XC4 | 1.49 | 1.80 | |
| Cover | ||||
| 109 | 1605500263 | 4.18 | 5.06 | |
| Lens Head Screw | ||||
| 304/56 | 1603415004 | 1.49 | 1.80 | |
| Grommet | ||||
| 304/6 | 1600703040 | 2.08 | 2.52 | |
| O-Ring | ||||
| 321/104 | 1600210044 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 321/14 | 1600905032 | 5.81 | 7.03 | |
| Rubber Ring | ||||
| 321/27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 321/30 | 1600591014 | 2.40 | 2.90 | |
| Bevel Gear | ||||
| 321/39 | 1606333617 | 7.46 | 9.03 | |
| Retaining clip | ||||
| 321/40 | 1600119011 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 321/41 | 1600200029 | 3.71 | 4.49 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Armature With Fan | ||||
| 803 | 1604010A21 | 47.53 | 57.51 | |
| On-Off Switch | ||||
| 804 | 1607000A85 | 10.68 | 12.92 | |
| Power supply cord | ||||
| 805 | 1607000391 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607000482 | 110.30 | 133.46 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 12.82 | 15.51 | |
| Parts Set | ||||
| 813 | 1607000378 | 6.73 | 8.14 | |
| Gear Housing | ||||
| 821 | 1605806524 | 34.82 | 42.13 | |
| Bearing Flange | ||||
| 828 | 1607000D6C | 11.37 | 13.76 | |
| O-Ring | ||||
| 828/04 | 3600210109 | 2.08 | 2.52 | |
| Spring Element | ||||
| 831 | 1601290013 | 1.00 | 1.21 | |
| Fan | ||||
| 835 | 1606610129 | 2.08 | 2.52 | |
| Push-Button | ||||
| 840 | 1603231032 | 4.18 | 5.06 | |
| Speed governor | ||||
| 851 | 1607233233 | 52.45 | 63.46 | |
| Connecting Cable | ||||
| 852 | 1604448025 | 2.08 | 2.52 | |
| O-Ring | ||||
| 890 | 1600210039 | 2.08 | 2.52 | |
| Auxiliary Handle | ||||
| 891 | 16020250A0 | 10.90 | 13.19 | |
| Protective Cover | ||||
| 891 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 891 | 160202509T | 3.44 | 4.16 | |
| Round Nut | ||||
| 892 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 893 | 1607950052 | 3.44 | 4.16 | |
| Clamping Flange | ||||
| 895 | 2605703014 | 7.53 | 9.11 | |
| SNELSPANMOER | ||||
| 896 | 1603340027 | 45.52 | 55.08 | |
| Fast Locking Flange | ||||
| 896 | 1600A016PP | 41.30 | 49.97 | |
