Here you will find all available parts and drawings of the 'Bosch 3601JF2000 ( GWS10,8V-EC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

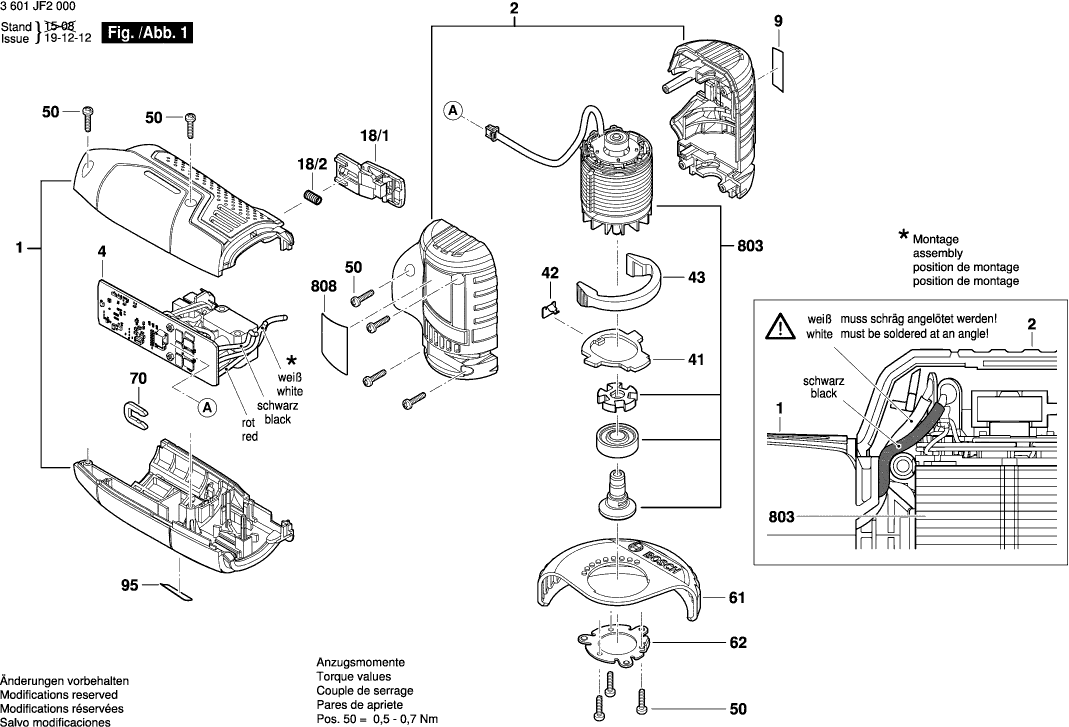

Technical drawing of model Bosch 3601JF2000 ( GWS10,8V-EC )
Spare parts list of model Bosch 3601JF2000 ( GWS10,8V-EC )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 160580658F | 10.73 | 12.98 | |
| Motor Housing | ||||
| 2 | 16051082BZ | 11.88 | 14.37 | |
| Electronic Module | ||||
| 4 | 16072335A2 | 67.25 | 81.37 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C07A | 1.94 | 2.35 | |
| Switch unit | ||||
| 18 | 1600A0078U | 3.31 | 4.01 | |
| Switch unit | ||||
| 18/1 | 1600A0078U | 3.31 | 4.01 | |
| Spring | ||||
| 18/2 | 1600A004HA | 0.83 | 1.00 | |
| Spring | ||||
| 19 | 1600A004HA | 0.83 | 1.00 | |
| Stopping Device | ||||
| 41 | 1600A004HJ | 1.18 | 1.43 | |
| Wave spring | ||||
| 42 | 1600A004HD | 3.31 | 4.01 | |
| Retaining Stirrup | ||||
| 43 | 1600A004HH | 1.70 | 2.06 | |
| Screw | ||||
| 50 | 2609110361 | 0.83 | 1.00 | |
| Protective Cover | ||||
| 61 | 1600A004HM | 8.45 | 10.22 | |
| Pressure plate | ||||
| 62 | 1600A004HE | 5.83 | 7.05 | |
| Clip | ||||
| 70 | 2609110537 | 1.18 | 1.43 | |
| Sticker | ||||
| 95 | 160111C0WW | 2.71 | 3.28 | |
| Clamping Nut | ||||
| 99 | 1600A00B91 | 5.83 | 7.05 | |
| Protective Cover | ||||
| 651 | 1600A004LC | 11.88 | 14.37 | |
| Battery Pack GBA 12V 3,0 Ah Li | ||||
| 652 | 1607A3506A | 73.72 | 89.20 | |
| Fast Charger EU GAL 12V-40 | ||||
| 653 | 2607226219 | 46.67 | 56.47 | |
| Motor Spare Parts Set | ||||
| 803 | 1600A00DC1 | 81.47 | 98.58 | |
| Nameplate | ||||
| 808 | 160111C05B | 1.94 | 2.35 | |
| Hexagon Socket Wrench | ||||
| 852 | 1619P11420 | 1.70 | 2.06 | |
