Here you will find all available parts and drawings of the 'Bosch 3601CA7000 ( GWG12V-50S )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

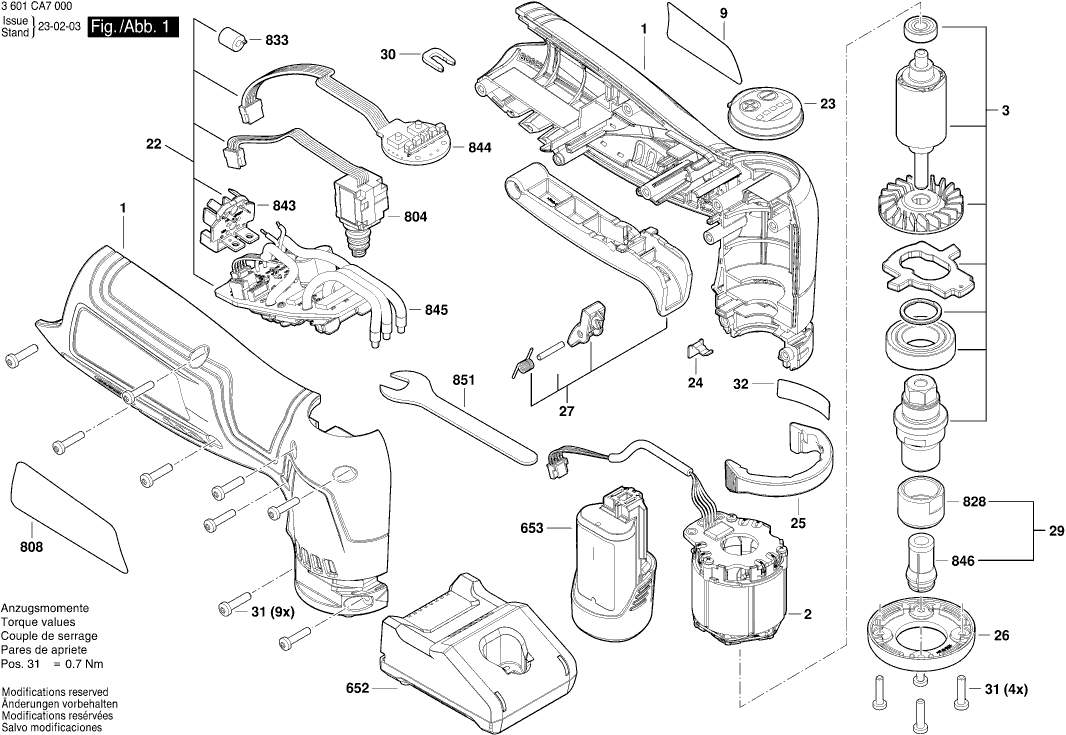

Technical drawing of model Bosch 3601CA7000 ( GWG12V-50S )
Spare parts list of model Bosch 3601CA7000 ( GWG12V-50S )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1619PB8823 | 13.93 | 16.86 | |
| Stator | ||||
| 2 | 1619PB9476 | 26.84 | 32.48 | |
| Armature | ||||
| 3 | 1619PB9664 | 29.75 | 36.00 | |
| Manufacturer's nameplate | ||||
| 9 | 1619PB9666 | 1.94 | 2.35 | |
| Electronic Module | ||||
| 22 | 1619PB7327 | 113.29 | 137.08 | |
| None | ||||
| 23 | 1619PB9667 | 5.83 | 7.05 | |
| Wave spring | ||||
| 24 | 1619PB9668 | 1.18 | 1.43 | |
| Retaining Stirrup | ||||
| 25 | 1619PB9669 | 1.18 | 1.43 | |
| Terminal cover | ||||
| 26 | 1619PB9670 | 1.70 | 2.06 | |
| Switch Unit | ||||
| 27 | 1619PB9671 | 2.71 | 3.28 | |
| Collet Set | ||||
| 29 | 1619PB9663 | 12.41 | 15.02 | |
| U-shaped clip | ||||
| 30 | 1619PB5588 | 0.83 | 1.00 | |
| Torx Oval-Head Screw | ||||
| 31 | 1619PB5559 | 0.83 | 1.00 | |
| Label | ||||
| 32 | 1619PB9676 | 1.18 | 1.43 | |
| Fast Charger EU GAL 12V-40 | ||||
| 652 | 2607226219 | 46.67 | 56.47 | |
| Battery Pack GBA 12V 6.0Ah | ||||
| 653 | 1607A3506F | 101.94 | 123.35 | |
| Battery Pack GBA 12V 3,0 Ah Li | ||||
| 653 | 1607A3506A | 73.72 | 89.20 | |
| Switch | ||||
| 804 | 1619PB9475 | 9.53 | 11.53 | |
| Nameplate | ||||
| 808 | 1619PC0319 | 1.94 | 2.35 | |
| Lock nut | ||||
| 828 | 1619PB9672 | 7.58 | 9.17 | |
| Ferrite | ||||
| 833 | 1619PC0679 | 2.71 | 3.28 | |
| Contact retainer | ||||
| 843 | 1600A02DY0 | 0.83 | 1.00 | |
| Operating column | ||||
| 844 | 1619PB9677 | 11.88 | 14.37 | |
| Electronic Module | ||||
| 845 | 1619PB9673 | 91.56 | 110.79 | |
| Collet | ||||
| 846 | 1619P10661 | 4.10 | 4.96 | |
| Wrench Attachment | ||||
| 851 | 1619PB9660 | 2.71 | 3.28 | |
