Here you will find all available parts and drawings of the 'Bosch 3601JB2901 ( GUS12V-300 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

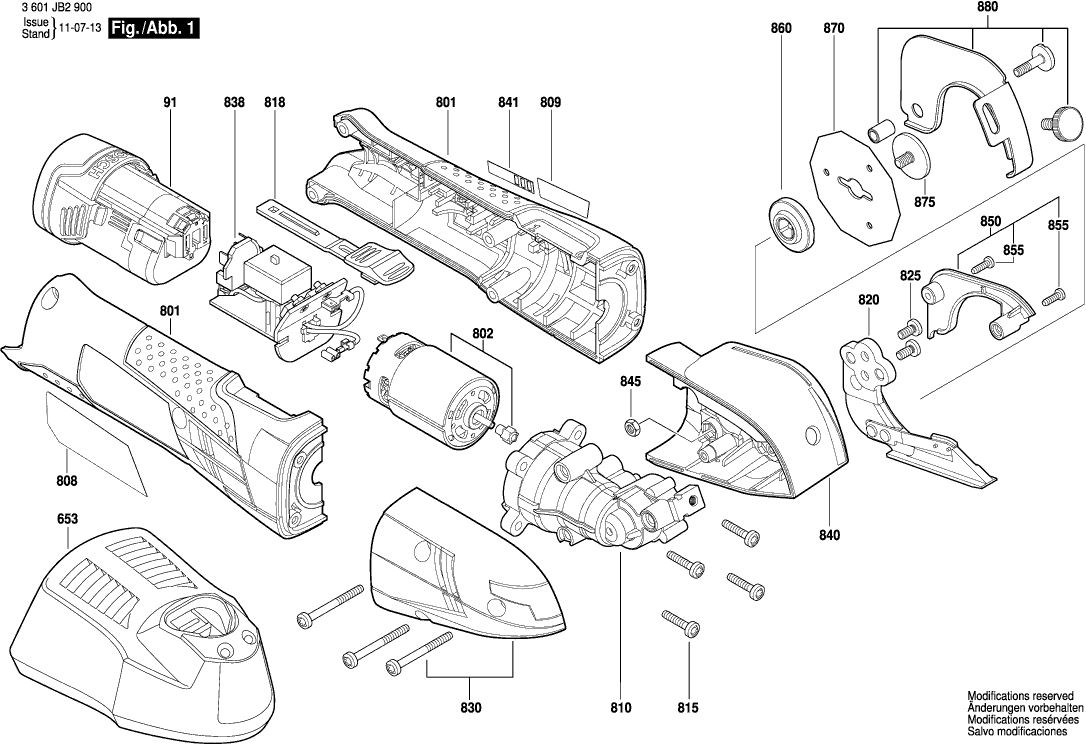

Technical drawing of model Bosch 3601JB2901 ( GUS12V-300 )
Spare parts list of model Bosch 3601JB2901 ( GUS12V-300 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 91 | 1607A350C5 | 55.25 | 66.85 | |
| Battery Pack | ||||
| 91 | 1607A350DY | 34.69 | 41.97 | |
| Fast Charger UK AL1130CV 230V/12V/3A | ||||
| 653 | 2607225135 | 67.25 | 81.37 | |
| Fast Charger EU GAL 12V-40 | ||||
| 653 | 2607226219 | 46.67 | 56.47 | |
| Housing | ||||
| 801 | 2609100773 | 29.75 | 36.00 | |
| DC motor 10,8V | ||||
| 802 | 1607000751 | 40.61 | 49.14 | |
| Nameplate | ||||
| 808 | 1600A00W96 | 1.94 | 2.35 | |
| Manufacturer's nameplate GUS 12V-300 | ||||
| 809 | 1600A00W99 | 1.94 | 2.35 | |
| Gear Housing | ||||
| 810 | 1619PA2328 | 60.65 | 73.39 | |
| Tapping Screw | ||||
| 815 | 1619PA2329 | 2.24 | 2.71 | |
| Switch Slide | ||||
| 818 | 2609100650 | 1.70 | 2.06 | |
| Lower Blade | ||||
| 820 | 1619PA2330 | 49.56 | 59.97 | |
| Screw | ||||
| 825 | 1619PA2331 | 0.83 | 1.00 | |
| Housing Section | ||||
| 830 | 1619PA2332 | 12.41 | 15.02 | |
| Electronic Module | ||||
| 838 | 1607233528 | 73.72 | 89.20 | |
| Housing Section | ||||
| 840 | 1619PA2333 | 15.71 | 19.01 | |
| Label | ||||
| 841 | 2609131677 | 1.94 | 2.35 | |
| Hex Nut | ||||
| 845 | 1619PA2334 | 0.83 | 1.00 | |
| Cover | ||||
| 850 | 1619PA2335 | 3.31 | 4.01 | |
| Screw | ||||
| 855 | 1619PA2336 | 0.83 | 1.00 | |
| Driver Disc | ||||
| 860 | 1619PA2337 | 4.70 | 5.69 | |
| Upper Blade | ||||
| 870 | 1619PA2338 | 20.42 | 24.71 | |
| Lock Screw | ||||
| 875 | 1619PA2339 | 4.70 | 5.69 | |
| Protective Cover | ||||
| 880 | 1619PA2340 | 23.75 | 28.74 | |
