Here you will find all available parts and drawings of the 'Bosch 0601607103 (GUF4-22A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

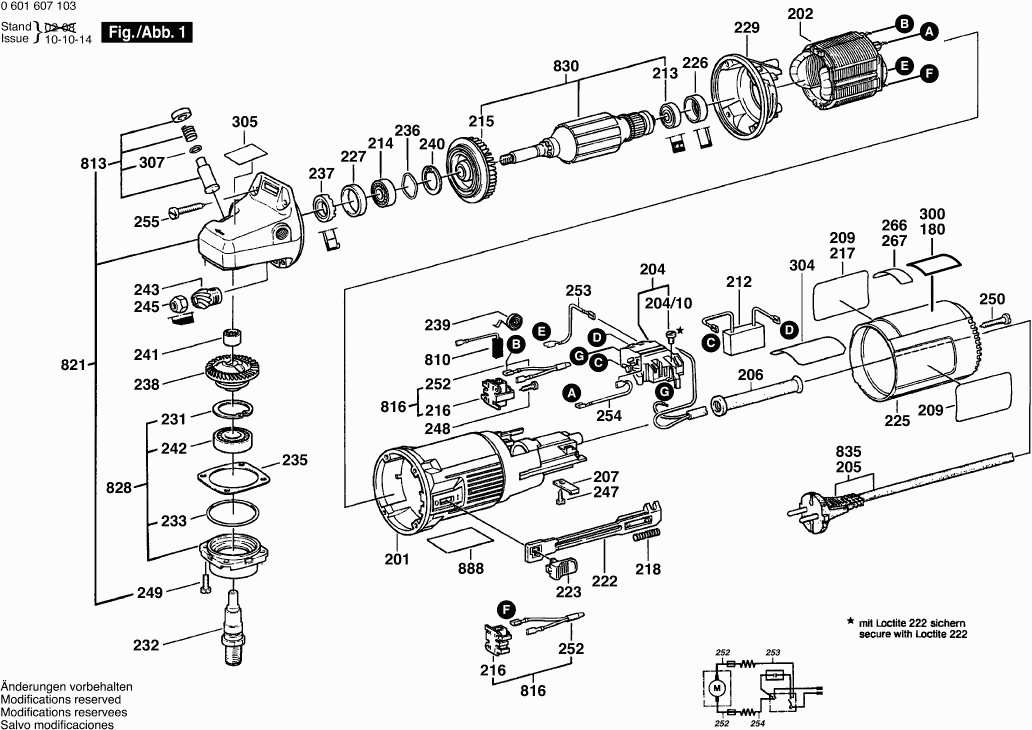

Technical drawing of model Bosch 0601607103 (GUF4-22A)
Spare parts list of model Bosch 0601607103 (GUF4-22A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Base Plate | ||||
| 3 | 3601329011 | 80.75 | 97.71 | |
| Swivelling Lever | ||||
| 4 | 3602013006 | 31.65 | 38.30 | |
| Covering hood | ||||
| 5 | 3605500101 | 11.65 | 14.10 | |
| Torsion Spring | ||||
| 6 | 3604651003 | 4.12 | 4.99 | |
| No longer available, no replacement | ||||
| 7 | 3603490012 | |||
| Eccentric Disc | ||||
| 8 | 3602200001 | 4.58 | 5.54 | |
| Thrust Member | ||||
| 10 | 3601000002 | 0.83 | 1.00 | |
| Parallel-Guide | ||||
| 11 | 3601329013 | 100.27 | 121.33 | |
| Carrier | ||||
| 11/10 | 3601328004 | 11.94 | 14.45 | |
| Straight Pin | ||||
| 11/100 | 2917571036 | 0.83 | 1.00 | |
| O-Ring | ||||
| 11/110 | 1900210301 | 1.24 | 1.50 | |
| Round-Head Bolt | ||||
| 11/130 | 2910281201 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 11/150 | 2910545193 | 1.24 | 1.50 | |
| Tapping Screw | ||||
| 11/160 | 2910211020 | 2.08 | 2.52 | |
| Offset Screwdriver | ||||
| 11/170 | 2607950004 | 1.49 | 1.80 | |
| Stop Plate | ||||
| 11/20 | 3601328005 | 30.08 | 36.40 | |
| Handle | ||||
| 11/30 | 3601328006 | 2.87 | 3.47 | |
| Plastic Bar | ||||
| 11/40 | 3601328007 | 2.38 | 2.88 | |
| Rubber Bar | ||||
| 11/50 | 3601006001 | 3.48 | 4.21 | |
| No longer available, no replacement | ||||
| 11/60 | 3601006002 | |||
| Hex Nut | ||||
| 11/70 | 2610387875 | 2.40 | 2.90 | |
| Plain Washer | ||||
| 11/90 | 2916011014 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 12 | 3603340009 | |||
| Clamping-Flange | ||||
| 13 | 3600328032 | 6.53 | 7.90 | |
| No longer available, no replacement | ||||
| 14 | 2602305045 | |||
| Reference Plate | ||||
| 15 | 3601119071 | 2.38 | 2.88 | |
| Manufacturer's nameplate | ||||
| 16 | 1601110481 | 2.08 | 2.52 | |
| Knurled Thumbscrew | ||||
| 17 | 3603490014 | 2.00 | 2.42 | |
| No longer available, no replacement | ||||
| 18 | 2910141152 | |||
| Locking washer | ||||
| 19 | 2916080007 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 20 | 3604611018 | 1.24 | 1.50 | |
| Square Nut | ||||
| 21 | 2915121005 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 22 | 2910095201 | 0.83 | 1.00 | |
| Carrier Bracket | ||||
| 23 | 3602380000 | 4.12 | 4.99 | |
| No longer available, no replacement | ||||
| 24 | 3603349000 | |||
| Reference Plate | ||||
| 25 | 3601119073 | 2.38 | 2.88 | |
| Scale Plate | ||||
| 28 | 3601329012 | 2.38 | 2.88 | |
| Shim | ||||
| 29 | 2600100576 | 2.08 | 2.52 | |
| Sticker | ||||
| 30 | 3601119074 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 31 | 3601251001 | |||
| Tensioning Lever | ||||
| 32 | 3601923000 | 1.32 | 1.60 | |
| Shim | ||||
| 33 | 2600100569 | 1.49 | 1.80 | |
| Adjusting Plate | ||||
| 34 | 3601032001 | 0.83 | 1.00 | |
| Spring Washer | ||||
| 35 | 2918750129 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 36 | 2914471401 | 1.32 | 1.60 | |
| Locking Washer | ||||
| 37 | 3600190018 | 1.24 | 1.50 | |
| Socket head cap screw | ||||
| 49 | 2910021133 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 201 | 16051082CC | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 202 | 1604220224 | |||
| On-Off Switch | ||||
| 204 | 1607200086 | 10.90 | 13.19 | |
| Pan head screw | ||||
| 204/10 | 2910110048 | 1.00 | 1.21 | |
| Grommet | ||||
| 206 | 2600703012 | 2.86 | 3.46 | |
| Grommet | ||||
| 206 | 2600703013 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 207 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 209 | 1601118914 | 2.87 | 3.47 | |
| Suppression Filter | ||||
| 212 | 2607329124 | 9.67 | 11.70 | |
| Ball Bearing | ||||
| 213 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 214 | 1600905011 | 5.81 | 7.03 | |
| Fan | ||||
| 215 | 1606610121 | 1.49 | 1.80 | |
| Brush Holder | ||||
| 216 | 1600A003G4 | 3.44 | 4.16 | |
| Manufacturer's nameplate | ||||
| 217 | 1601118915 | 2.87 | 3.47 | |
| Compression Spring | ||||
| 218 | 1619P09932 | 1.28 | 1.55 | |
| Compression Spring | ||||
| 218 | 1604611026 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 222 | 1602319002 | 2.40 | 2.90 | |
| Switch Handle | ||||
| 223 | 1602026057 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 225 | 1600508010 | 7.46 | 9.03 | |
| Rubber Bushing | ||||
| 226 | 1600502020 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 227 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 229 | 1601328005 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 231 | 2916660013 | 2.08 | 2.52 | |
| Grinding Spindle | ||||
| 232 | 1603523101 | 15.61 | 18.89 | |
| O-Ring | ||||
| 233 | 3600210124 | 2.86 | 3.46 | |
| Shim | ||||
| 235 | 1600136010 | 2.40 | 2.90 | |
| Shim | ||||
| 235 | 1600136011 | 2.08 | 2.52 | |
| Shim | ||||
| 235 | 1600136012 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 236 | 1600150011 | 1.00 | 1.21 | |
| Rotary shaft lip seal | ||||
| 237 | 1600290016 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 238 | 1606333601 | |||
| Spiral Spring | ||||
| 239 | 1604652013 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 240 | 2916660009 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 241 | 1600910018 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 242 | 1600905006 | 11.37 | 13.76 | |
| Bevel Gear | ||||
| 243 | 1606333242 | 52.45 | 63.46 | |
| Hex Nut | ||||
| 245 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 245 | 1619P17544 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 247 | 2910211018 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 248 | 1613435034 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 249 | 1603435026 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 250 | 2910211021 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 252 | 1604465104 | |||
| Connecting Cable | ||||
| 253 | 1604448005 | 2.86 | 3.46 | |
| Connecting Cable | ||||
| 254 | 1604448006 | 2.40 | 2.90 | |
| Torx Oval-Head Screw | ||||
| 255 | 2914201508 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 305 | 1601110470 | 1.00 | 1.21 | |
| O-Ring | ||||
| 307 | 1600210044 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 650 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 650 | 160202509T | 3.44 | 4.16 | |
| Pin-Type Face-Wrench | ||||
| 651 | 1607950052 | 3.44 | 4.16 | |
| Dust Bag | ||||
| 652 | 1605411028 | 0.83 | 1.00 | |
| Fitting | ||||
| 652/10 | 2605702009 | 2.52 | 3.05 | |
| No longer available, no replacement | ||||
| 653 | 3601329004 | |||
| No longer available, no replacement | ||||
| 655 | 2605702019 | |||
| Side-Milling Cutter | ||||
| 700 | 3608641001 | 0.83 | 1.00 | |
| Side-Milling Cutter | ||||
| 700 | 3608641008 | 0.83 | 1.00 | |
| Fitting | ||||
| 702 | 1600499005 | 1.00 | 1.21 | |
| Assembly Of Service Parts | ||||
| 800 | 3607031215 | 6.22 | 7.53 | |
| Carbon-Brush Set | ||||
| 810 | 1607014116 | 10.90 | 13.19 | |
| Push-Button | ||||
| 813 | 1607000253 | 2.08 | 2.52 | |
| Parts Set | ||||
| 816 | 1607000244 | 9.08 | 10.99 | |
| Gear Housing | ||||
| 821 | 1605806480 | 52.45 | 63.46 | |
| Bearing Flange | ||||
| 828 | 1607000936 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 830 | 1604010259 | |||
| Power supply cord | ||||
| 835 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
